| Prod Model: |
GPS103A |
| Applied Area: |
Vehicle, Car GPS Tracker |
| Warranty: |
12 Months |
| Service: |
OEM &ODM Car GPS Navigation |
| Cert: |
Ce, FCC |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Band: |
850/900/1800/1900MHz |
| Features: |
Remot Cut off Engine and Resume |
| Network: |
GSM/GPRS |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Model: |
GPS103A Car Navigation |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

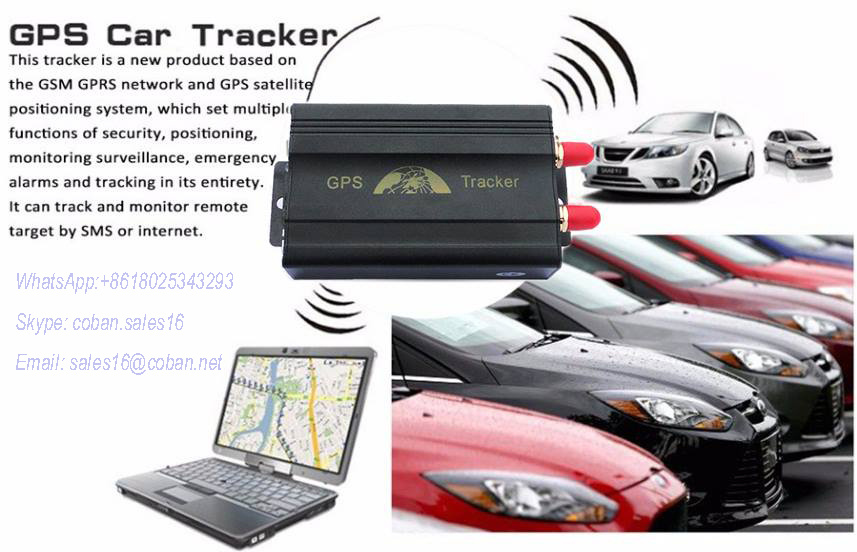

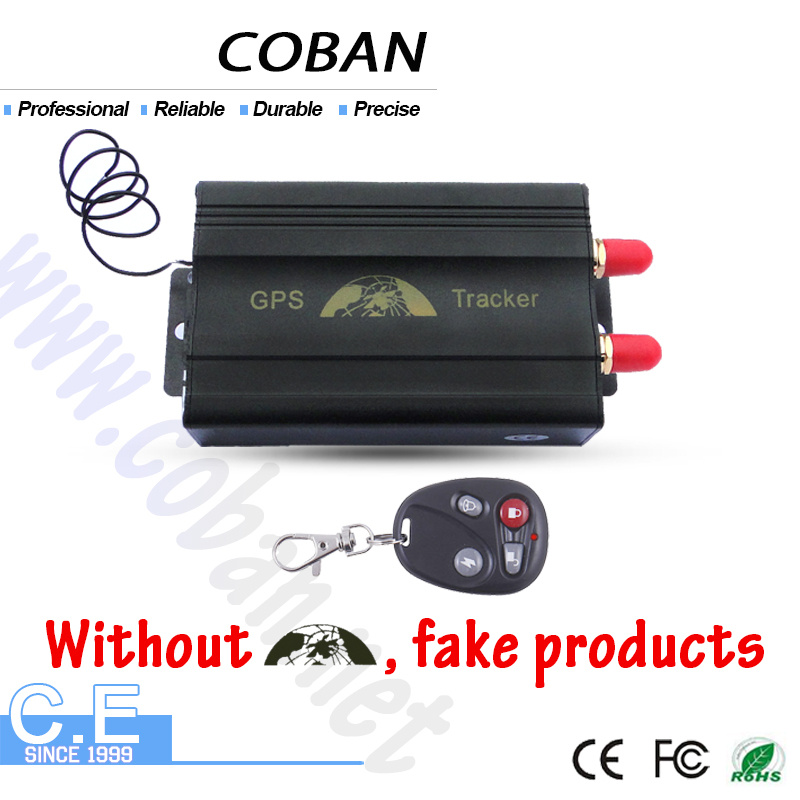

Coban real time gps tracking system tk 103A with relay support cut off engineThis tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Function Description:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, windows alarm get by SMS
16, Movement alert sensor
17, Android IOS app tracking
18. With direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
21. Smart track upon time and distance interval
22. Automatic update positions of vehicle turns
23. GPS drift suppression
24. Data logging
25. Forward third parties message to authorized phone number
26. charge inquiry
27. Multi area management
28. Accident alarm(Option)
29. ACC working alarm
30. Configure parameters by USB
31. Less GPRS traffic
32. GPS blind spot alarm
33. Fuel sensor(option)
34. Sleep mode fuction
Optional function:*Quiver / Sensor alarm
*Extra remote controller for GPS103B
*Siren
*SD card
*Accident alarm
*Optional 24V relay for 24V vehicle
*Fuel oil monitor by fuel sensor
*USB cable to send commands on PC
Applying directions:GPS Vehicle tracker fleet/logistics/Vehicle rental
Specifications
Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.

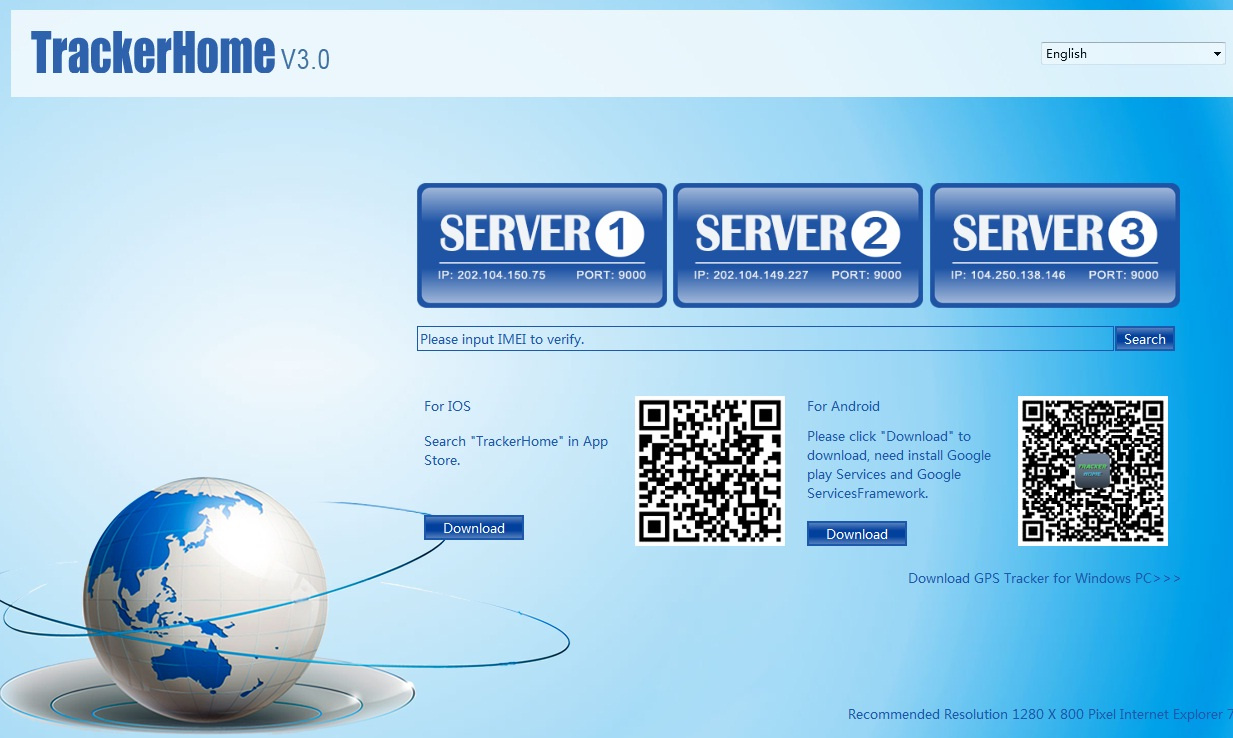

*Web based online tracking on PC at our server www.baanool.net
*APP real time track on cell phone real time IOS & Android App tracking
Warranty:1. One year warranty is provided for all models.2. All products have been strictly Quality Checked in house before packing.3. All products have been well packed before shipping. OEM&ODM Service: 1.Customize logo and brand print on the device or box2.Offer firmware modification service 3.Customize design in bulk orderA
