| Prod Model: |
GPS103B |
| Anti-Theft Alarm: |
Acc, Door Open, Shock Alarm |
| Certificate: |
Ce, FCC |
| Band: |
850/900/1800/1900MHz |
| Battery: |
Chargeable 3.7V 350mAh Polymer Li-Battery |
| GPS Accurancy: |
5m |
| GPS Sensitivity: |
-159dBm |
| Network: |
GSM, GPRS |
| Tracking Solution: |
Web Platform, Andorid Ios APP |
| Weight: |
0.54kg |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Screen Size: |
No Screen |
| Model: |
GPS103b |
| Brand: |
Coban |
| Chip: |
Ns1315 |
| Certification: |
ISO9001 |
Product Description

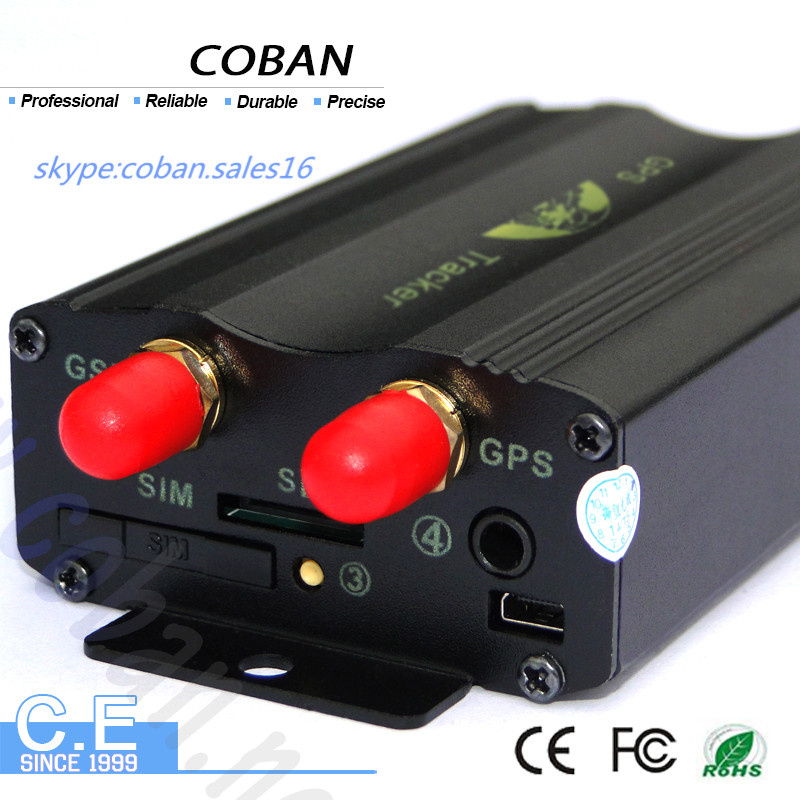

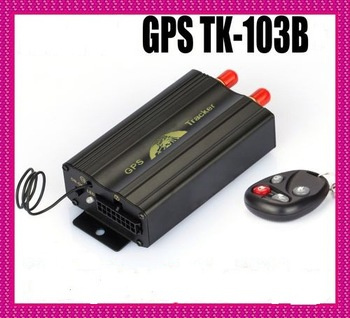

Coban tk103 car gps tracker engine cuting built-in battery gps tracker with alarm sirenTK103 GPS TRACKER
Product Description: The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.Detailed description:
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by several ways.provide monitor software and global map.real-time track with web based platform, pc based software and Andriod and ios Apps.
Functions:1. Auto track upon times/time/distance interval
2. Get physical location in real street/address name
3. Remote engine-stop and resume
4. GPS drift suppression
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Remotely cut off engine and resume13. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
14. Movement alert.
15. over speed alarm
16. Power supply disconnection alarm.
17. Low battery alarm function
18. SOS
19. Check the vehicle status
20. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Specifications:
Content |
specifications |
DIM. |
83*54*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage |
12 V -24V
|
Backup battery |
Chargeable 3.7V 350mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing
|
Five types Tracking way:A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP

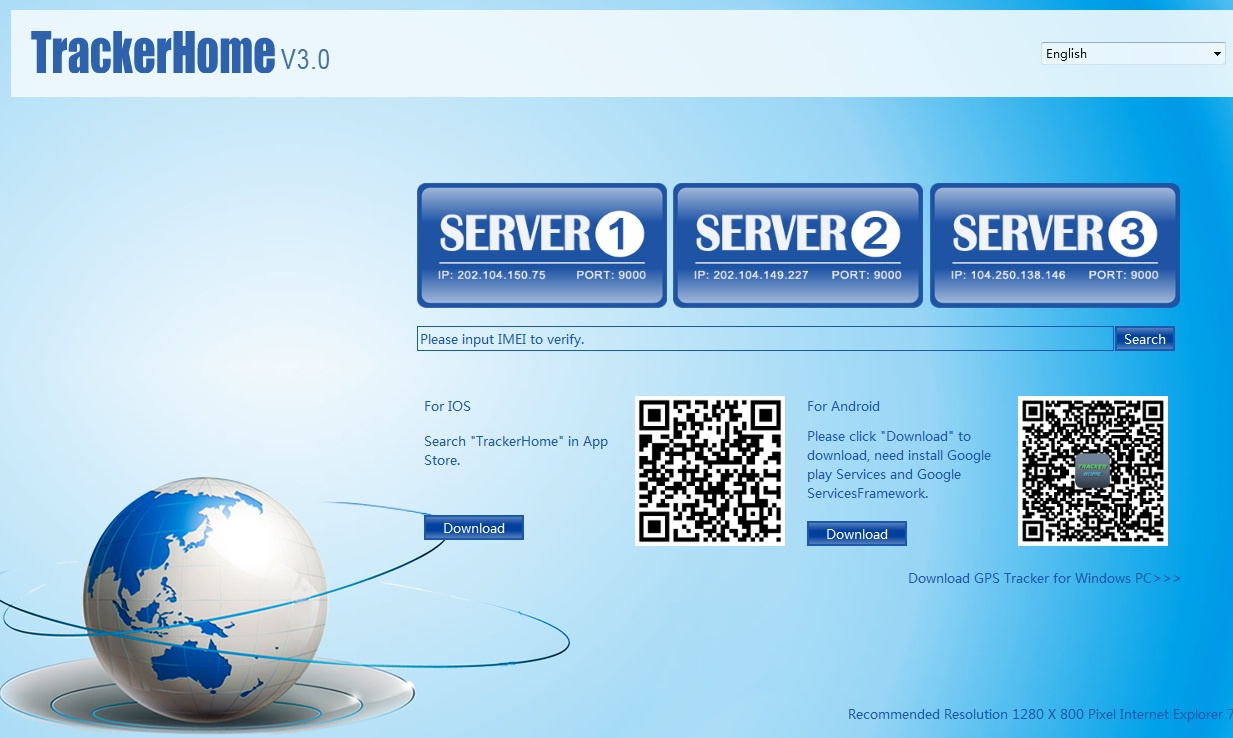

Web platform--www.gpstrackerxy.com
Andorid & IOS APP
Warranty:
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service:
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
