Prod Model: |
Vehicle GPS Tracker GPS103 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Vehicle Fleet/Logistics/Vehicle Rental |
Network: |
GSM GPS |
Warranty Time: |
12 Months |
Delivery Time: |
2-3 Working Days by DHL |
Band: |
850/900/1800/1900MHz |
APP: |
Android&iPhone APP |
Support: |
Fuel Monitor, Voice Monitor, Sos |
Anti Theft Alarms: |
Engine Shut, Acc Working Alarm, Fuel Monitor |
OEM/ODM: |
Yes |
Type: |
GPS Tracker |
Use: |
Automotive |
Carrier Frequency: |
Dual-Frequency |
Screen Size: |
No Screen |
Port Number: |
20 |
Model: |
GPS103 |
Brand: |
Coban |
Chip: |
No |
Certification: |
Ce FCC |
Product Description
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link 2. Get physical location in real street/address name 3. Remote Engine-stop and Resume. 4. Track by Distance Interval &time 5. USB configuration (option) 6. SD card for data logging (option) 7. ACC working alarm 8. Voice surveillance 9. Multi-Geo fence 10. Less GPRS traffic 11 .automatic update positions of vehicle turns 12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm 13. Movement alert. 14. over speed alarm 15. Power supply disconnection alarm. 16. Low battery alarm function 17. Check the vehicle status 18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking Applying directions: Vehicle fleet/logistics/Vehicle rental;Cars,Trucks,Container trucks,Special vehicles,Motorbike etc.How to tracking ? The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...) Five types Tracking way: A>: SMS + Map software; B>: PDA Cell Phone; C>: Real time tracking, and track via your computer; D>: simple & useful real time tracking via our website www.baanool.net E >: IOS and Android APPStandard accessories: GPS Unit

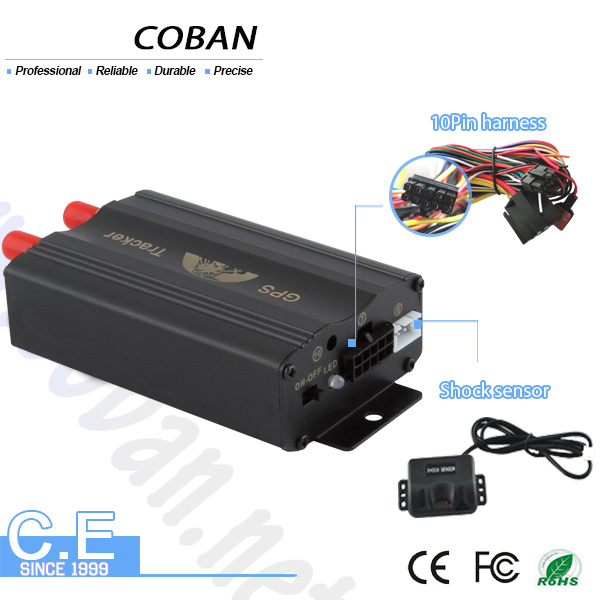

10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package
optional accessories:
fuel sensor
Shock sensor
alarm siren
Microsd memory card
USB cable
Specifications
Content | specifications |
DIM. | 83*54*26mm |
Weight | 120g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS Sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
Voltage | 12 V -24V |
Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order

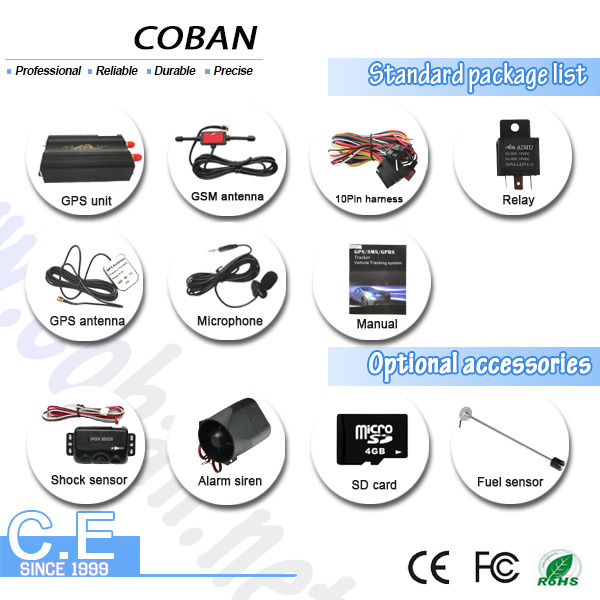

GPS Tracker 103 standard packing list and optional accessories
APP TRACKING

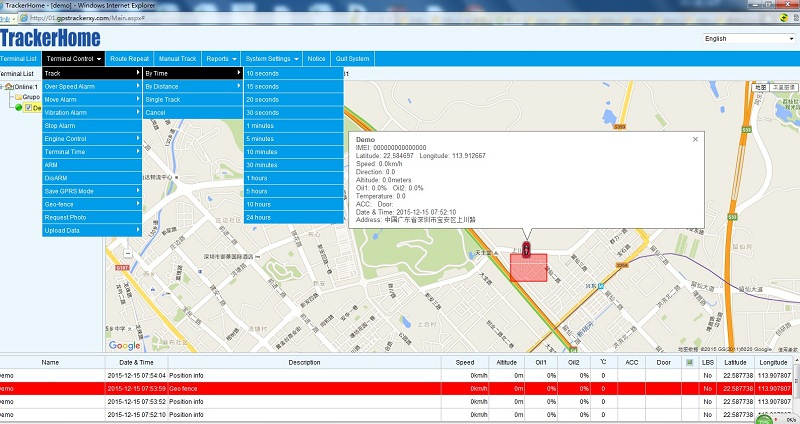

GPRS WEB TRACKING PLATFORM
WWW.GPSTRACKERXY.COM ( ID DEMO,PASSWORD 8888)
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
