Coil Heater Heating Element

Name: Coil Heater Heating Element
Brand: all-electronics-online.com
SKU: 724404685
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 20-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coil Heater Heating Element
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cross Section:	33mm, 2.24.2mm, 3.5*3.5mm
Thermocouple Type:	K J
MOQ:	3
Sheath Material:	Cr Ni-Steel
Insulation Material:	MGO
Resistance Wire:	Ni Cr 80-20
Maximum Sheath Temperature:	700°c
Voltage:	800V A/C
Power:	> 5 M W
Unheated Length:	35mm (Standard)
Application:	Heater
Structure Material:	Metal Material
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Heating Resistance Wire Inside Heating

Product Description

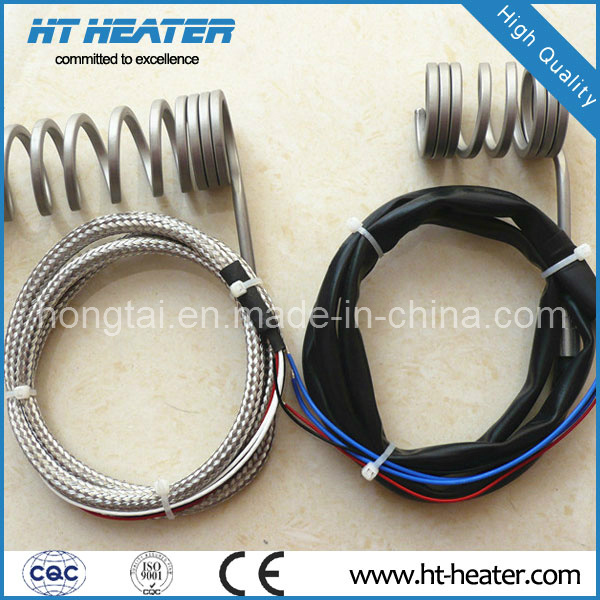

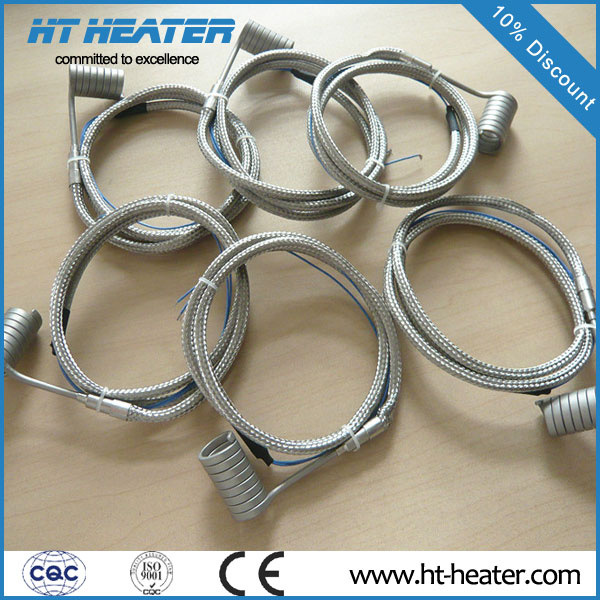

Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

AVAILABLE IN FOLLOWING CROSS SECTION
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4 etc.
4.20 x 2.20, 4.20 x 2.50
Any other cross sections can be manufactures and supplied on request.

Features:
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.

Sheath Material	Cr Ni-Steel
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Maximum Sheath Temperature	700°C
voltage	800V A/C
power	> 5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+ 10% ( + 5% Available Upon Request)
Resistance Tolerance	+ 10% ( + 5% Available Upon Request)
Unheated Length	35mm (Standard)
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm
Dimensional Tolerance	Coil Length + 1mm
