Coil

Name: Coil
Brand: all-electronics-online.com
SKU: 797487335
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 88-100/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-RCT02-0012

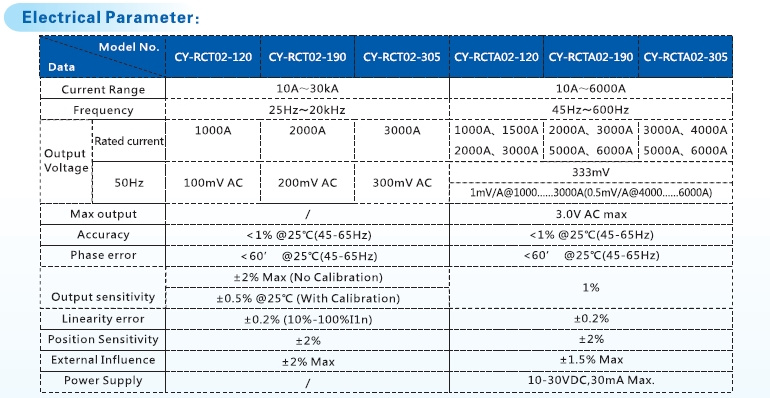

Frequency:	25-20k Hz 45-600Hz
Insulation Class:	Cat III
Customized:	Customized
Accuracy:	<1%(45-65Hz)
Current Range:	10A ~30ka / 10A ~6000A
Power Supply:	10-30VDC, 30mA Max.
Coil Structure:	Toroidal
Color:	Customized
Max Output:	3.0V AC Max
Standards Safety:	ISO9001: 2001, 600V Cat III
Application:	Rectifier
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

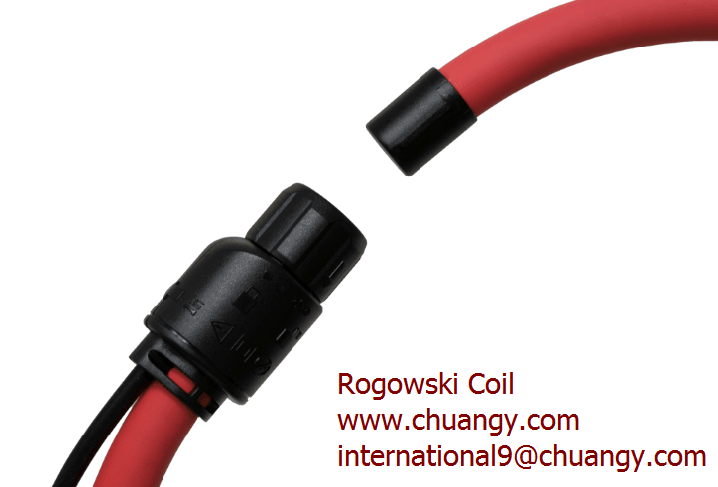

Rogowski Coil CT
Model Code.:CY-RCT01

The 'RCT02 Clamp-on Flexible Rogowski coil current transformer' are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

Features:

Flexible and light weights_

Easy & quick installation in tight spaces

No danger from open-circuited secondary

No core saturation or damage if overloaded

excellent linearity

Multi- size are available

Applications:

Power quality monitoring

Power meters

Smart logger

Energy sub-meters

Distributed measurement systems

General Data:
Ambient operating temp.: -20...........+70
Ambient storage temp.: -25..............+75
Standards Safety: IEC 61010-1:2001; 600V CAT III

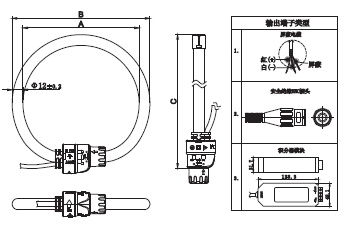

Dimension:

Dimension(mm)	CY-RCT01-55 CY-RCTA01-55	CY-RCT01-80 CY-RCTA01-80	CY-RCT01-105 CY-RCTA01-105
Window A	55	80	105
Coil OD B	68.5	93.5	118.5
Coil Length C	200	300	380
Output Connection

Note: Upon request we are glad to offer transformers according to other technical specs.
