Cold Shrink Silicone Rubber Breakouts

Cold Shrink Silicone Rubber Breakouts
Price: Negotiable/Piece
Min Order: 10000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SB-WCSF
Application: Switch Baseplate
Type: Insulation Sleeve
Chemistry: Hybrid Insulation
Material: Plastic
Thermal Rating: 220 220
Maximum Voltage: <10KV
Color: Clear,Black, Color
Brand: Sunbow

Product Description

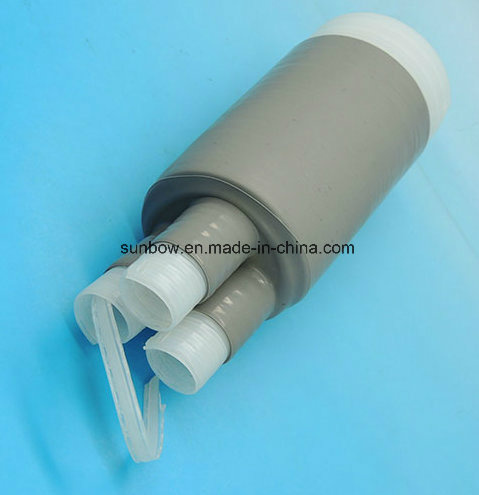

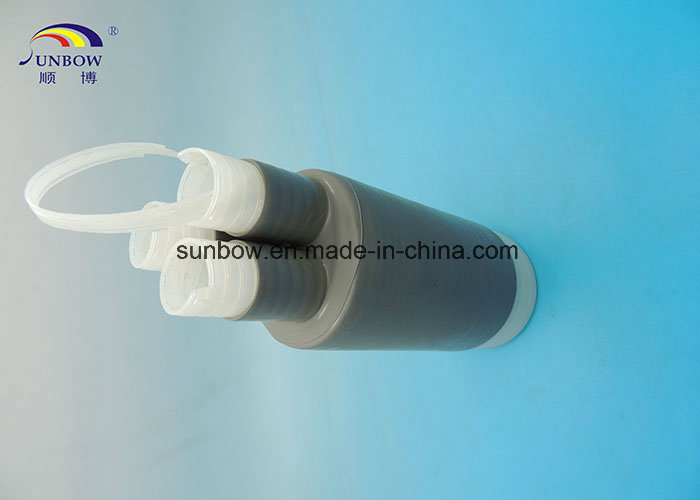

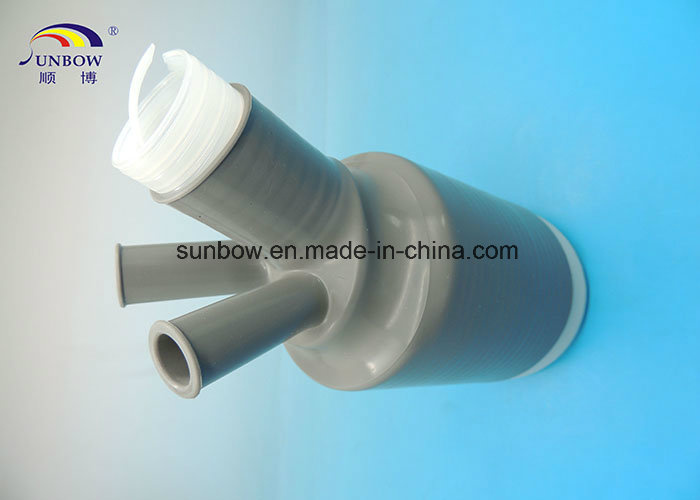

Cold Shrink Silicone Rubber Breakouts
Model Number: SB-WCSF

Cold shrink silicone rubber breakouts are factory expanded and mounted on removable inner supporting plastic cores. They are supplied for field installation in a pre-stretched condition. The supporting cores are removed after the seal has been positioned for installation around the breakout area of a 3,4,5,6/C (3,4,5,6 conductor) cable. Core removal allows the silicone rubber boot to shrink down to a predetermined diameter; creating an environmental Enclosure for individual cable phase legs and the overall cable jacket.



Features and Benefits

 Versatile: installs quickly and accommodates a wide range of cable sizes;

 No torches or heat required;

 No specific user skills or craftsmanship required;

 Excellent resistance to ozone and ultra-violet radiation;

 Good solvent resistance compatible with industry approved cable cleaners;

 Excellent thermal stability.



Dimension

No.

Core

ID (As supplied)
¢C

Application
range Rc

D (As supplied)
¢F

Application
range Rc

LF

LC

1

3

Ø77/ Ø36

Ø38-Ø67

Ø32/ Ø14

Ø16- Ø26

45

130

2

Ø88/ Ø 43

 Ø45-Ø78

 Ø35/ Ø16

 Ø18- Ø29

45

135

3

Ø104/ Ø50

Ø52-Ø94

Ø40/ Ø 20

Ø22- Ø34

45

150

4

Ø120/ Ø59

 Ø61-Ø110

Ø47/ Ø23

Ø25- Ø41

45

165

5

Ø140/ Ø72

Ø74-Ø130

 Ø60/ Ø 28

Ø30- Ø54

55

180

6

4

Ø65/Ø20

 Ø22-Ø55

 Ø20/Ø6

 Ø8-Ø14

35

125

7

Ø80/Ø28

Ø30-Ø70

Ø25/Ø8

Ø10-Ø19

40

137

8

Ø88/Ø40

 Ø42-Ø78

 Ø32/Ø10

Ø12-Ø26

40

145

9

Ø104/Ø40

 Ø42-Ø94

 Ø40/Ø10

Ø12-Ø36

40

145

10

5

Ø80/Ø26

Ø28-Ø70

Ø20/Ø6

Ø8-Ø14

40

123

11

Ø88/Ø36

Ø38-Ø78

 Ø25/Ø8

Ø10-Ø19

40

134

12

Ø110/Ø47

Ø49-Ø100

Ø35/Ø11

Ø13-Ø29

45

138

13

Ø120/Ø47

Ø49-Ø110

Ø40/Ø11

 Ø13-Ø36

45

138

14

6

Ø104/Ø35

 Ø37-Ø94

 Ø32/Ø10

 Ø12- Ø26

60

135
