Cold Shrink Terminations & Joints 1-36kv
| Price: |
Negotiable/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SB-CSTJ |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Material: |
Plastic |
| Thermal Rating: |
220 220 |
| Maximum Voltage: |
<10KV |
| Color: |
Clear,Black, Color |
| Brand: |
Sunbow |
Product Description

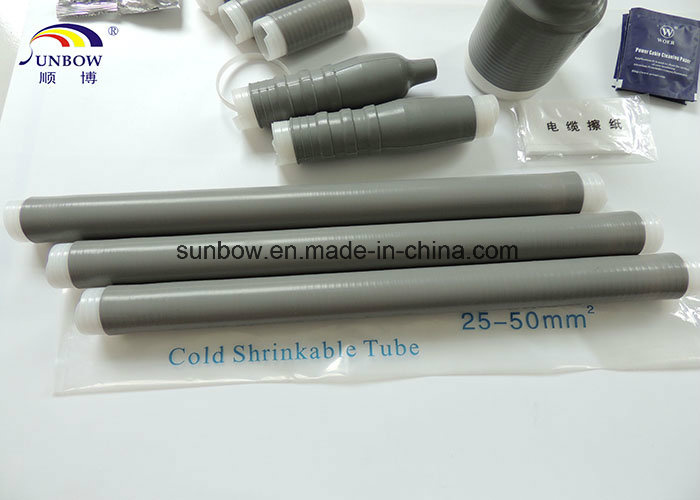

1-36kV Cold Shrink Terminations & Joints
Description
Cold shrink cable accessories are manufactured with advanced liquid silicon rubber, which has high resilience and strength,good electrical insulation, is
UV stable and adverse to water. The cold shrink cable terminations & joints applications from 1 to 36kV(1kV, 12kV, 15kV, 20kV, 36kV). The simple installation of
cold shrink cables accessories can help you save time and physical force. It improves your work efficiency, make the cables connect safely and reliably, assure your every connection correctly sealed and insulated for long protection. So our cold shrink MV terminations & joints are widely applied in power plant (nuclear), wind farm, substations, city subway etc.
Cold Shrink Termination Kits (for XLPE,screened armored cables)
Voltage | Cores | Description | Cable size | Model number |
18/30kV(36) | 1 | Indoor | 25-50mm2 | 18/30kVWLN-1-1 |
70-150mm2 | 18/30kVWLN-1-2 |
185-400mm2 | 18/30kVWLN-1-3 |
500-630mm2 | 18/30kVWLN-1-4 |
1 | Outdoor | 25-50mm2 | 18/30kVWLW-1-1 |
70-150mm2 | 18/30kVWLW-1-2 |
185-400mm2 | 18/30kVWLW-1-3 |
500-630mm2 | 18/30kVWLW-1-4 |
12/20kV(24) | 1 | Indoor | 50-120mm2 | 12/20kVWLN-1-1 |
150-300mm2 | 12/20kVWLN-1-2 |
400-500mm2 | 12/20kVWLN-1-3 |
630mm2 | 12/20kVWLN-1-4 |
1 | Outdoor | 50-120mm2 | 12/20kVWLW-1-1 |
150-300mm2 | 12/20kVWLW-1-2 |
400-500mm2 | 12/20kVWLW-1-3 |
630mm2 | 12/20kVWLW-1-4 |
8.7/15kV(17.5) | 1 | Indoor | 25-50mm2 | 8.7/15kVWLN-1-1 |
70-120mm2 | 8.7/15kVWLN-1-2 |
150-240mm2 | 8.7/15kVWLN-1-3 |
300-400mm2 | 8.7/15kVWLN-1-4 |
1 | Outdoor | 25-50mm2 | 8.7/15kVWLW-1-1 |
70-120mm2 | 8.7/15kVWLW-1-2 |
150-240mm2 | 8.7/15kVWLW-1-3 |
300-400mm2 | 8.7/15kVWLW-1-4 |
6.35/11kV(12) | 1 | Indoor | 25-50mm2 | 6.35/11kVWLN-1-1 |
70-120mm2 | 6.35/11kVWLN-1-2 |
150-240mm2 | 6.35/11kVWLN-1-3 |
300-400mm2 | 6.35/11kVWLN-1-4 |
1 | Outdoor | 25-50mm2 | 6.35/11kVWLW-1-1 |
70-120mm2 | 6.35/11kVWLW-1-2 |
150-240mm2 | 6.35/11kVWLW-1-3 |
300-400mm2 | 6.35/11kVWLW-1-4 |
0.6/1kV(1.2) | 1 | Indoor or Outdoor | 25-50mm2 | 0.6/1kVWLT-1-1 |
70-120mm2 | 0.6/1kVWLT-1-2 |
150-240mm2 | 0.6/1kVWLT-1-3 |
300-400mm2 | 0.6/1kVWLT-1-4 |
18/30kV (36) | 3 | Indoor | 25-50mm2 | 18/30kVWLN-3-1 |
70-150mm2 | 18/30kVWLN-3-2 |
185-400mm2 | 18/30kVWLN-3-3 |
500-630mm2 | 18/30kVWLN-3-4 |
3 | Outdoor | 25-50mm2 | 18/30kVWLW-3-1 |
70-150mm2 | 18/30kVWLW-3-2 |
185-400mm2 | 18/30kVWLW-3-3 |
500-630mm2 | 18/30kVWLW-3-4 |
12/20kV (24) | 3 | Indoor | 50-120mm2 | 12/20kVWLN-3-1 |
150-300mm2 | 12/20kVWLN-3-2 |
400-500mm2 | 12/20kVWLN-3-3 |
630mm2 | 12/20kVWLN-3-4 |
3 | Outdoor | 50-120mm2 | 12/20kVWLW-3-1 |
150-300mm2 | 12/20kVWLW-3-2 |
400-500mm2 | 12/20kVWLW-3-3 |
630mm2 | 12/20kVWLW-3-4 |
8.7/15kV(17.5) | 3 | Indoor | 25-50mm2 | 8.7/15kVWLN-3-1 |
70-120mm2 | 8.7/15kVWLN-3-2 |
150-240mm2 | 8.7/15kVWLN-3-3 |
300-400mm2 | 8.7/15kVWLN-3-4 |
3 | Outdoor | 25-50mm2 | 8.7/15kVWLW-3-1 |
70-120mm2 | 8.7/15kVWLW-3-2 |
150-240mm2 | 8.7/15kVWLW-3-3 |
300-400mm2 | 8.7/15kVWLW-3-4 |
6.35/11kV(12) | 3 | Indoor | 25-50mm2 | 6.35/11kVWLN-3-1 |
70-120mm2 | 6.35/11kVWLN-3-2 |
150-240mm2 | 6.35/11kVWLN-3-3 |
300-400mm2 | 6.35/11kVWLN-3-4 |
3 | Outdoor | 25-50mm2 | 6.35/11kVWLW-3-1 |
70-120mm2 | 6.35/11kVWLW-3-2 |
150-240mm2 | 6.35/11kVWLW-3-3 |
300-400mm2 | 6.35/11kVWLW-3-4 |
0.6/1kV(1.2) | 3 or 4 or 5 | Indoor or Outdoor | 25-50mm2 | 0.6/1kVWLT-3(4/5)-1 |
70-120mm2 | 0.6/1kVWLT-3(4/5)-2 |
150-240mm2 | 0.6/1kVWLT-3(4/5)-3 |
300-400mm2 | 0.6/1kVWLT-3(4/5)-4 |
Cold Shrink Cable Joints
Use:
Cold shrink cable joint for XLPE -insulated 1 or 3 cores cables with Al or Cu conductor, 1-36kV.
Design:
The joint body is made of advanced liquid silicone rubber with three layers: a conductive outer layer, an insulating layer and a conductive inner layer.

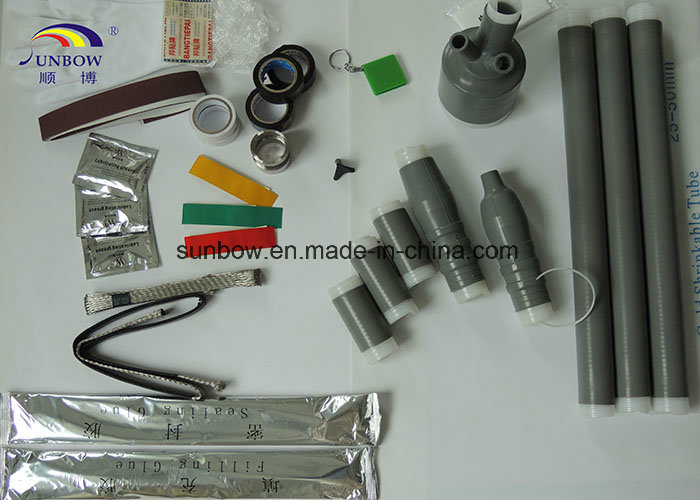

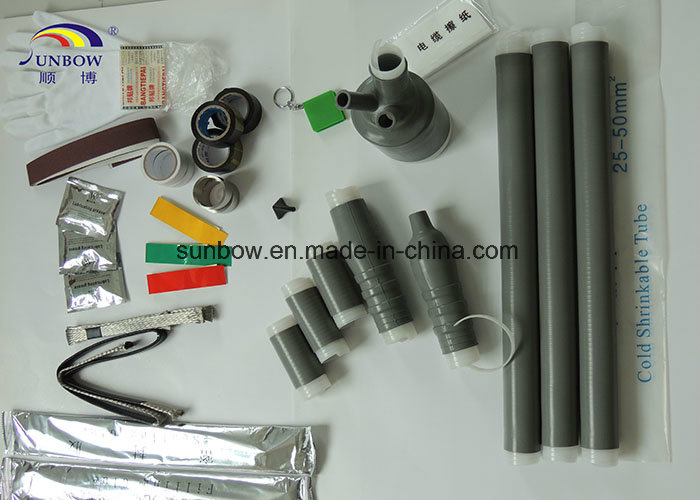

The joints kit contains all mounting material. It improves reliability, reduces time and labor. It fits cable sizes from 25mm2 to 500mm2.
Voltage | Cores | Cable size | Model number |
18/30kV (36) | 1 | 50-70mm2 | 18/30kVWLJ-1-1 |
95-150mm2 | 18/30kVWLJ-1-2 |
185-300mm2 | 18/30kVWLJ-1-3 |
400-500mm2 | 18/30kVWLJ-1-4 |
12/20kV (24) | 1 | 25-50mm2 | 12/20kVWLJ-1-1 |
70-120mm2 | 12/20kVWLJ-1-2 |
150-240mm2 | 12/20kVWLJ-1-3 |
300-400mm2 | 12/20kVWLJ-1-4 |
8.7/15kV(17.5) | 1 | 25-50mm2 | 8.7/15kVWLJ-1-1 |
70-120mm2 | 8.7/15kVWLJ-1-2 |
150-240mm2 | 8.7/15kVWLJ-1-3 |
300-400mm2 | 8.7/15kVWLJ-1-4 |
6.35/11kV(12) | 1 | 25-50mm2 | 6.35/11kVWLJ-1-1 |
70-120mm2 | 6.35/11kVWLJ-1-2 |
150-240mm2 | 6.35/11kVWLJ-1-3 |
300-400mm2 | 6.35/11kVWLJ-1-4 |
0.6/1kV(1.2) | 1 | 25-50mm2 | 0.6/1kVWLJ-1-1 |
70-120mm2 | 0.6/1kVWLJ-1-2 |
150-240mm2 | 0.6/1kVWLJ-1-3 |
300-400mm2 | 0.6/1kVWLJ-1-4 |
18/30kV(36) | 3 | 50-70mm2 | 18/30kVWLJ-3-1 |
95-150mm2 | 18/30kVWLJ-3-2 |
185-300mm2 | 18/30kVWLJ-3-3 |
400-500mm2 | 18/30kVWLJ-3-4 |
12/20kV(24) | 3 | 25-50mm2 | 12/20kVWLJ-3-1 |
70-120mm2 | 12/20kVWLJ-3-2 |
150-240mm2 | 12/20kVWLJ-3-3 |
300-400mm2 | 12/20kVWLJ-3-4 |
8.7/15kV(17.5) | 3 | 25-50mm2 | 8.7/15kVWLJ-3-1 |
70-120mm2 | 8.7/15kVWLJ-3-2 |
150-240mm2 | 8.7/15kVWLJ-3-3 |
300-400mm2 | 8.7/15kVWLJ-3-4 |
6.35/11kV(12) | 3 | 25-50mm2 | 6.35/11kVWLJ-3-1 |
70-120mm2 | 6.35/11kVWLJ-3-2 |
150-240mm2 | 6.35/11kVWLJ-3-3 |
300-400mm2 | 6.35/11kVWLJ-3-4 |
0.6/1kV(1.2) | 3 or 4 or 5 | 25-50mm2 | 0.6/1kVWLJ-3(4/5)-1 |
70-120mm2 | 0.6/1kVWLJ-3(4/5)-2 |
150-240mm2 | 0.6/1kVWLJ-3(4/5)-3 |
300-400mm2 | 0.6/1kVWLJ-3(4/5)-4 |
Performance of Cold shrink cable accessories
SEQ.
Test Project
18/30kV(36)
| 12/20kV(24) | 8.7/15kV(17.5) | Result |
1 | AC voltage (in air and ambient
temperature) | AC for 5min. at 81kV
no breakdown, no
flashover | AC for 5min. at 54kV
no breakdown, no
flashover | AC for 5min. at 39kV
no breakdown, no
flashover | PASS |
2 | Partial discharge test | ≤10pc at 31kV | ≤10pc at 20kV | ≤10pc at 15kV | PASS |
3 | Impulse test | 10 impulses of each polarity at 170kV | 10 impulses of each polarity at 125kV | 10 impulses of each polarity at 95kV | PASS |
4 | Heating cycle in air
(for termination ) | 60 cycles at 95ºC~
100ºC and 45kV in
air, no breakdown | 60 cycles at 95ºC~
100ºC and 30kV in
air, no breakdown | 60 cycles at 95ºC~
100ºC and 22kV in
air, no breakdown | PASS |
5 | Heating cycle in air
(for joints ) | 30 cycles at 95ºC~
100ºC and 45kV in
air, no breakdown | 30 cycles at 95ºC~
100ºC and 30kV in
air, no breakdown | 30 cycles at 95ºC~
100ºC and 22kV in
air, no breakdown | PASS |
6 | Heating cycle voltage
test under water | 30 cycles at 95ºC~
100ºC and 45kV under
water, no breakdown | 30 cycles at 95ºC~
100ºC and 30kV under
water, no breakdown | 30 cycles at 95ºC~
100ºC and 22kV under
water, no breakdown | PASS |
7 | Thermal short circuit
(screen) | no visible deterioration
at current 1.97kA for 2s | no visible deterioration
at current 1.97kA for 2s | no visible deterioration
at current 1.97kA for 2s | PASS |
8 | Thermal short circuit
(conductor) | no visible deterioration
at current 3.0kA for 1s | no visible deterioration
at current 3.0kA for 1s | no visible deterioration
at current 3.0kA, for 1s | PASS |
9 | Dynamic short circuit | no visible deterioration
at current 23.0kA for 2s | no visible deterioration
at current 23.0kA for 2s | no visible deterioration
at current 23.0kA for 2s | PASS |
10 | AC voltage for 15 min | AC for 15 min at
45kV. no breakdown,
no flashover | AC for 15 min at
30kV. no breakdown,
no flashover | AC for 15 min at
22kV. no breakdown,
no flashover | PASS |
11 | Salt fog (for outdoor terminations only) | 1000H at 22.5kV,
no breakdown,
no flashover | 1000H at 15kV,
no breakdown,
no flashover | 1000H at 11kV,
no breakdown,
no flashover | PASS |
12 | Humidity (for indoor
terminations only) | 300H at 22.5kV,
no breakdown, no flashover | 300H at 15kV,
no breakdown,
no flashover | 300H at 11kV,
no breakdown,
no flashover | PASS |
