| Prod Model: |
SRG55-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
230*138*211mm |
| Weight: |
17.50kg |
| Color: |
Black / Dark Gray |
| Cell: |
6 |
| Sealing: |
Glue Sealing |
| Plate: |
Flat Plate |
| Separator: |
PE |
| Battery Case: |
ABS |
| Terminal Type: |
Copper |
| Accessory: |
Screws |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Nominal Voltage: |
12V |
| Usage: |
Solar |
| Type: |
Gel Batteries |
| Shape: |
Rectangle |
Product Description

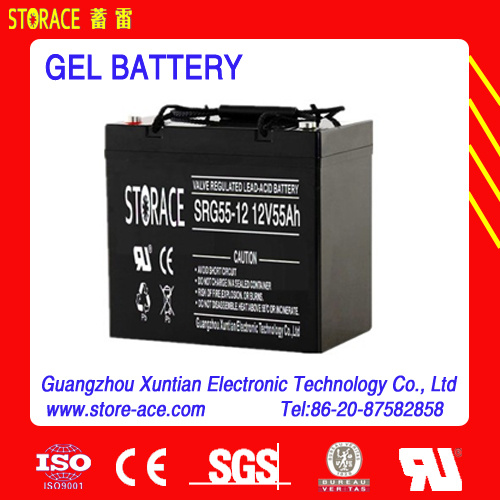

Colloid Battery 12V 55ah, deep cycle
(SRG55-12)
Gel series Detailed Product Description
Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications. Such as broadband, PVs etc through up-to-date gel technologies. The Gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.
Application
UPS, Broadband, Electric powered vehicles, Electric powered toys, Vacuum cleaners, Medical Equipments, Goof cars and buggies, Wheel chaires, PVs, solar systems, control systems, power systems, wind energy systems, telecommunication /communication systems & etc.
Characteristics
1. Gelcondition: The effect of sealed reaction is over 99.9%.
2. Minor self-discharge
3. Low rate of loss of coolant
4. Long service lift:
5. Good deep charge cycle performance
6. Good over-discharging recovery performance
7. Widely working environment
Excellent performance
1. High efficiency Discharge: Sealed reaction efficiency rate more than 99.9%
2. Low rate of liquid loss: Liquid loss rate is half lower than adsorbed type battery. Effectively alleviate the electrolyte early dry.
3. Low Self discharge: Storage with power for two years among temperature 25º C is possible. Storage time is 4times longer than adsorbed type battery.
Deep cycle longer life
1. Longer life: 12 years design life, saving expenses of replacement.
2. Good Deep discharge cycle performance: More than 500 times cycle life at 100% depth of discharge, much more than adsorbed type battery, effectively improve the system reliability.
Strong adaptability & recover capability
1. High Adaptation to the environment: Able to work in -40 º C ~ 60 º C temperature range, range is much wider than the adsorbed type battery.
2. Excellent recovery performance after over-discharge: Over discharge to "0" V, battery still have a good recovery ability. Discharge under 1CA for 21 days, battery recover capacity ability is up to 100% recovery.
|
Capacity 77° F(25º C) |
100 hours rate(0.65A 11.1V) |
65Ah |
|
20 hours rate(2.75A 10.8V) |
55Ah |
|
10 hours rate(5.2A 10.5V) |
52Ah |
|
1 hour rate(32A 9.6V) |
32Ah |
|
Internal Resistance |
Full charged battery 77° F(25º C): 9mΩ |
|
Operating Temperature Range |
Discharge: -20 to 60º C |
|
Charge: -10 to 60 º C |
|
Storage: -20 to 60 º C |
|
Self-Discharge |
|
3% of capacity declined per month at 20º C(average) |
|
Max discharge current77° F(25º C): 550A(5S) |
|
Charge (Constant Voltage) |
Float: 13.38 to 13.68V/77° F(25º C) |
|
Cycle: 14.28 to 14.52V/77° F(25º C) |
|
Max Current: 13.8A |
Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.
Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.
After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.
Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
