Colloid Gel Batteries 12V 100ah for Solar Power System

Name: Colloid Gel Batteries 12V 100ah for Solar Power System
Brand: all-electronics-online.com
SKU: 715852505
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 70-130/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRG100-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	407174233 Mm
Cell:	6
Color:	Black
Sealing:	Glue Sealing
Separator:	PE
Maintenance:	Free
Battery Case:	ABS
Safety:	Explosion-Proof
Voltage:	12V
Capacity:	100ah
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

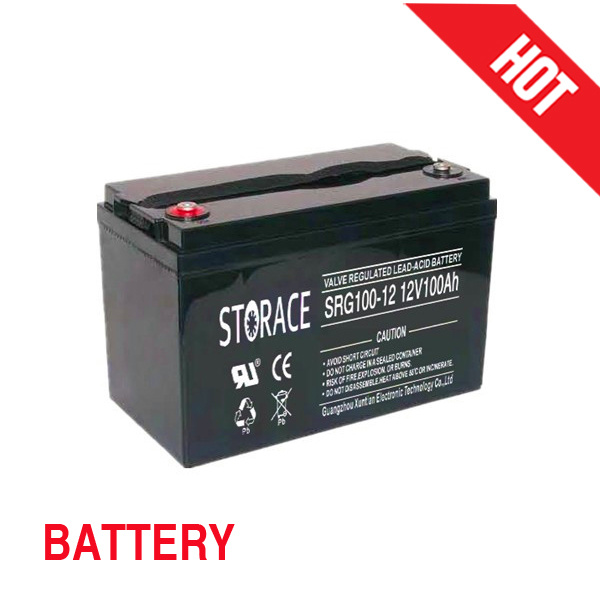

Colloid gel batteries 12v 100ah for solar power system
(SRG100-12)

Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications. Such as broadband, PVs etc through up-to-date gel technologies. Our gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.

Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Positive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, Broadband, Electric powered vehicles, Electric powered toys, Vacuum cleaners, Medical Equipments, Goof cars and buggies, Wheel chairs, PVs, solar systems, control systems, power systems, wind energy systems, telecommunication /communication systems & etc.

Characteristics

Gel condition: The effect of sealed reaction is over 99.9%.
Minor self-discharge.
Low rate of loss of coolant.
Long service life.
Good deep charge cycle performance.
Good over-discharging recovery performance.
Widely working environment.

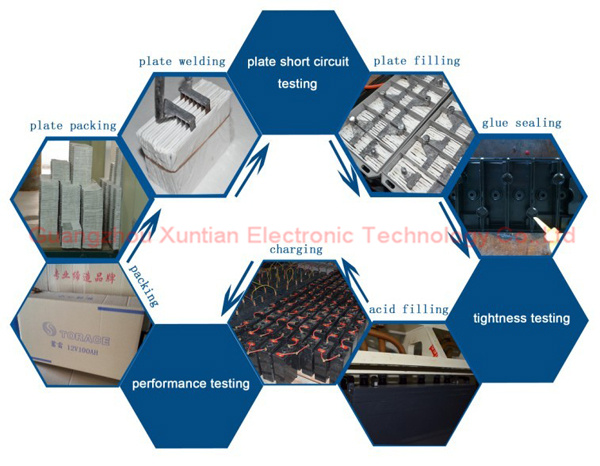

Production

Visitors

Data sheet

Capacity 77°F(25ºC)	100 hours rate(1.1A 11.1V)	110Ah
	20 hours rate(5A 10.5V)	100Ah
	10 hours rate(9.2A 10.5V)	92Ah
	1 hour rate(58A 9.6V)	58Ah
Internal Resistance	Full charged battery 77°F(25ºC):10mΩ

Operating Temperature Range	Discharge:-20 to 60 ºC
	Charge:-10 to 60 ºC
	Storage:-20 to 60 ºC
Self-Discharge
3% of capacity declined per month at 20ºC(average)
Max discharge current77°F(25ºC):800A(5S)
Charge (Constant Voltage)	Float:13.38 to 13.68V/77°F(25ºC)
	Cycle:14.28 to 14.52V/77°F(25ºC)
	Max Current:25A
