Color Mark Sensor Photoelectric Color Sensor (Z3N-TB22)
| Price: |
US $ 15-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Z3N-TB22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Position Sensor, Color Sensor |
| Theory: |
Optical Sensor |
| Output: |
Digital Sensor |
| Light Source: |
Green Blue |
| Cable: |
Three Wires |
| Detection Distance: |
10mm±2mm |
| Voltage: |
DC6-36V |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
PNP (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Industrial |
| Size: |
Z3n-Tb22 |
Product Description

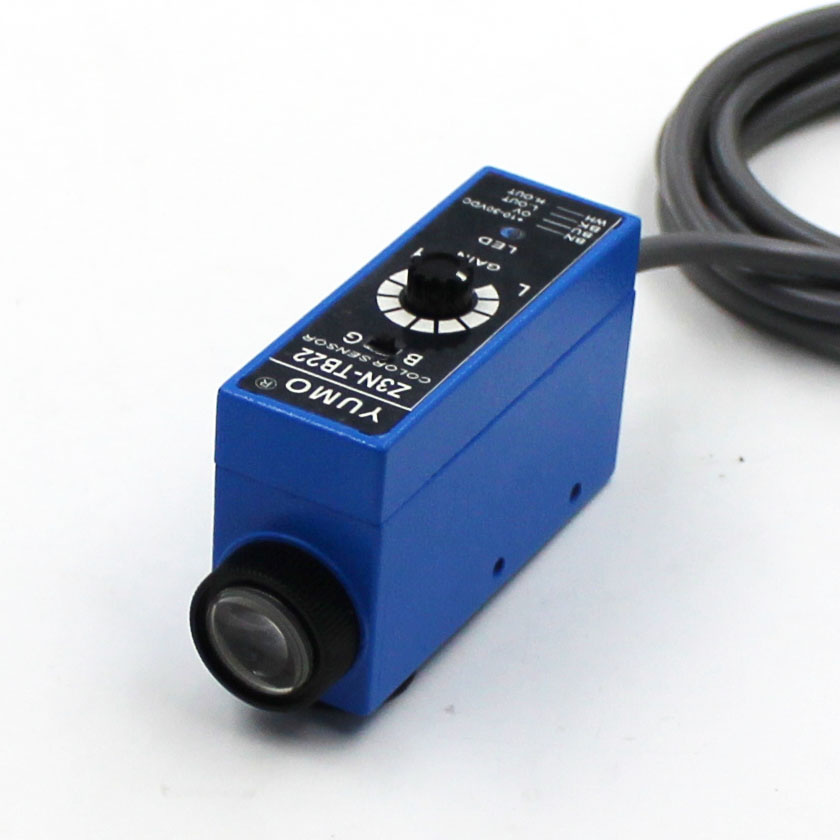

Color Mark Sensor Photoelectric Color Sensor (Z3N-TB22)
Z3N-TB22 Color Mark Sensor applies the light emitting and receiving principle. It will send out modulating light,receive the reflecting lights from detected object, and distinguish the color or recognize the existence of objectsaccording the intensity of the receiving signals. It can serve for sensor in the automatic control systems for packingmachinery, printing machinery, texture and paper making machinery etc and be used with other instruments to detectthe existence of the object marked with color code, pattem code, line or others. It has the functions of self-locating, recongnizing color, rectifying deviation, pattern checking, countering. The sensor applies optical technique,semi-coductor electronic technique, modulation demodulation and has the features of high sensitivity, quickresponse speed, strong anti-background interference, compact structure and convenient operaion etc. | Checking mode | Co-axial |
| Checking distance | 10mm +/- 2mm |
| Voltage supply | DC10-30V +/- 10% Wave <10% |
| Work currency | Minus 45mA |
| Light source spectrum | Red, green, blue, white |
| Light spot | Φ0.5~Φ1.5 |
| Checking angle | Vertical with surface, with 15°tolerance |
| Response time | 0.1~1ms |
| Output mode | Operate with light or without light |
| Output indication | Red LED |
| Output voltage | VH |
| Currency load | 200mA(max) |
| Circuit protection device | Vc polar protection short-circuit protection |
| Sensitivity | Adjustable |
| Anti-background light | Sunlight < 10000 Lx incandescent light<3000Lx |
| Protection level | Lp67 |
| Environment protection temperature | Work at -15ºC~65ºC storage -25ºC~80ºC |
| Shell material | Metal |
| Connection wire | Φ5.4 PVC 4-core cable L=2m |
| Weight | About 500g
|
