Shenzhen Sunbow Insulation Materials MFG. Co., Ltd. >> Colored Insulation PTFE Heat Shrink Tube

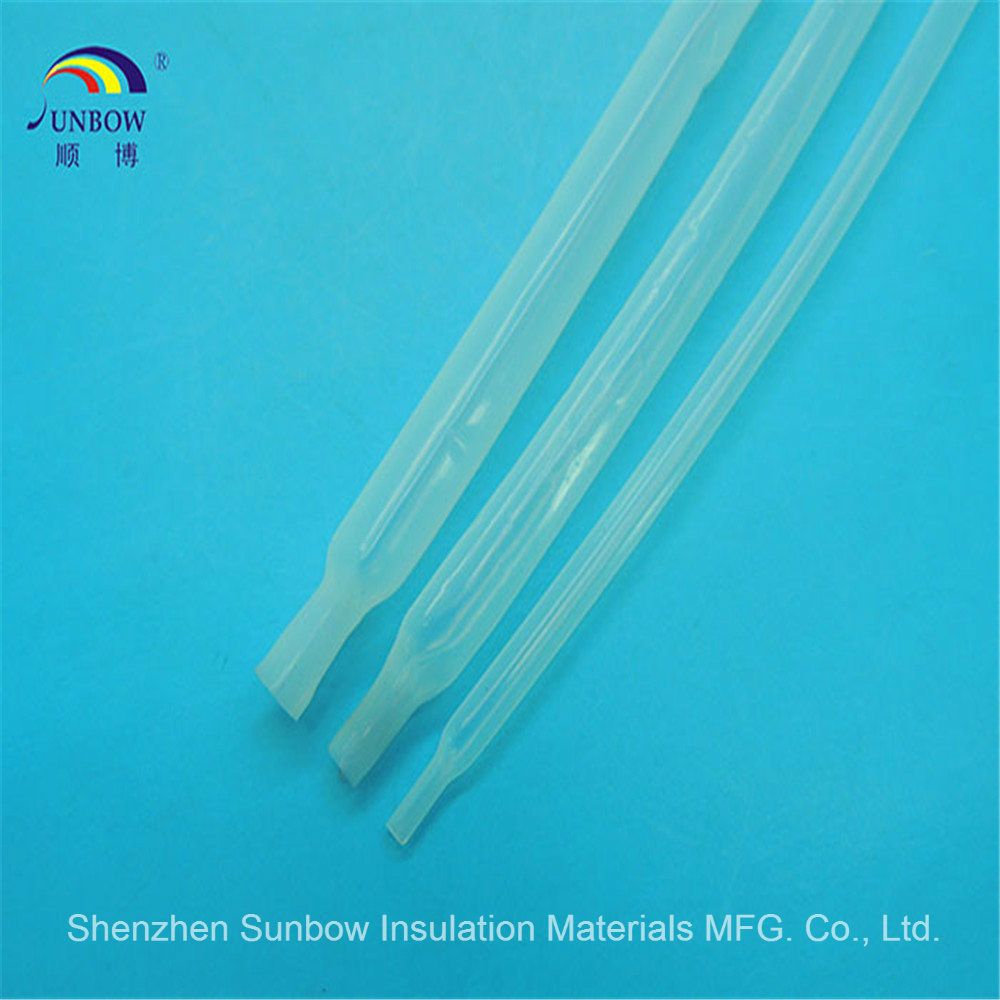

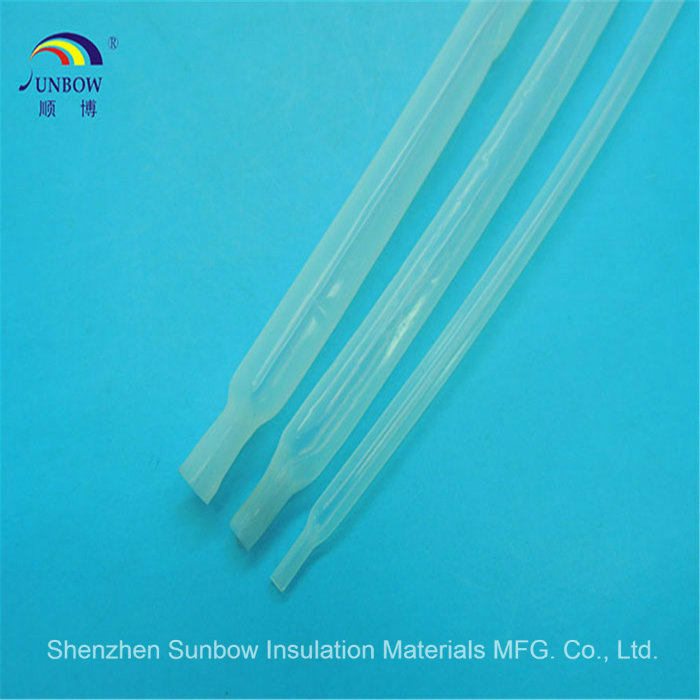

Colored Insulation PTFE Heat Shrink Tube

Colored Insulation PTFE Heat Shrink Tube
Price: US $ 1.99-21.99/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SB-PTFE-HST
Rigidity: 85
Flame Resistant Grade: VW-1
Shrink Ratio: 1.7:1 / 4:1
Shrink Temperature: 320ºC
Application: Artificial Blood Vessel
Type: Insulation Sleeve
Material: PTFE
Thermal Rating: -80-260 ºC
Maximum Voltage: 600V
Color: All Color Available
Brand: Sunbow

Product Description

Colored Insulation PTFE heat shrink tube

Model nimber:SB-PTFE-HST
Operating Temperature: -80ºC~260ºC
Shrink temperature: 320ºC
Shrink ratio: 1.7:1 / 4:1

STRUCTURE
Teflon heat shrinkable tube is applied imported polytetrafluoroethylene (PTFE). PTFE heat shrinkable tube has excellent chemical resistance, heat resistance, weather and corrosion resistance. It possesses excellent rigid and transparent. SGS and ROHS compliant.

USAGE
It is widely used in electrical, computer, electro thermal, aerospace, military, and telecommunication etc. Such as mini transformer, special sensor, artificial blood vessel etc.

SPECIFICATION
Melting≥280ºC
Dielectric constant(*)50HZ2.1
Rigidity85
Copper corrosionNo corrosion
Antibiotic property, erosion resistance propertyExcellent
Toughness(fold, bend, tear etc.)Excellent
Tensile strength Mpa(kgf/cm)20.5
Breakdown strength(kv/mm)30
AppearanceSmooth, no visible fur and defects , no impurity
Longitudinal change(%)≤5%
ElongationVW-1
ResistanceWear resistant, anti-acid and anti-virus,
corona discharge, solvent resistance, etc
EnvironmentNo hazardous to humans and environment
DIMENSION
Size
mm
As supplied I.D.As supplied W.T.After recovery
I.D.
After recovery
W.T.
Thin WallThick wallThin WallThick wall
φ0.50.7±0.20.10±0.050.15±0.05≤0.400.15±0.050.25±0.05
φ1.01.0±0.20.10±0.050.15±0.05≤0.500.15±0.050.25±0.05
φ1.51.5±0.20.10±0.050.20±0.05≤0.900.15±0.050.25±0.05
φ2.02.0±0.20.10±0.050.20±0.05≤1.300.15±0.050.30±0.05
φ2.52.5±0.20.10±0.050.20±0.05≤1.500.15±0.050.30±0.05
φ3.03.0±0.20.15±0.050.20±0.05≤1.800.20±0.050.30±0.05
φ3.53.5±0.20.15±0.050.20±0.05≤2.00.20±0.050.30±0.05
φ3.83.5±0.20.15±0.050.20±0.05≤2.00.20±0.050.30±0.05
φ4.04.0±0.30.15±0.050.20±0.05≤2.50.20±0.050.30±0.05
φ4.54.5±0.30.15±0.050.20±0.05≤2.80.20±0.050.30±0.05
φ5.05.0±0.30.15±0.050.20±0.05≤3.00.20±0.050.30±0.05
φ6.06.0±0.30.15±0.050.25±0.05≤3.80.25±0.050.38±0.05
φ7.07.0±0.30.15±0.050.25±0.05≤4.00.25±0.050.38±0.05
φ8.08.0±0.30.15±0.050.25±0.05≤4.80.25±0.050.38±0.05
φ9.09.0±0.30.15±0.050.25±0.05≤5.00.25±0.050.38±0.05

PTPF heat shrinkable tube specification (4:1)
Φ1.51.5±0.20.050.10.40±0.1
Φ2.02.0±0.20.050.120.50±0.1
Φ3.03.0±0.20.050.120.7±0.1
Φ4.54.5±0.20.050.121.2±0.1
Φ6.06.0±0.20.120.121.5±0.1
Φ7.07.0±0.30.120.152.8±0.1
PACKAGE: Packing by spool or cut on request.

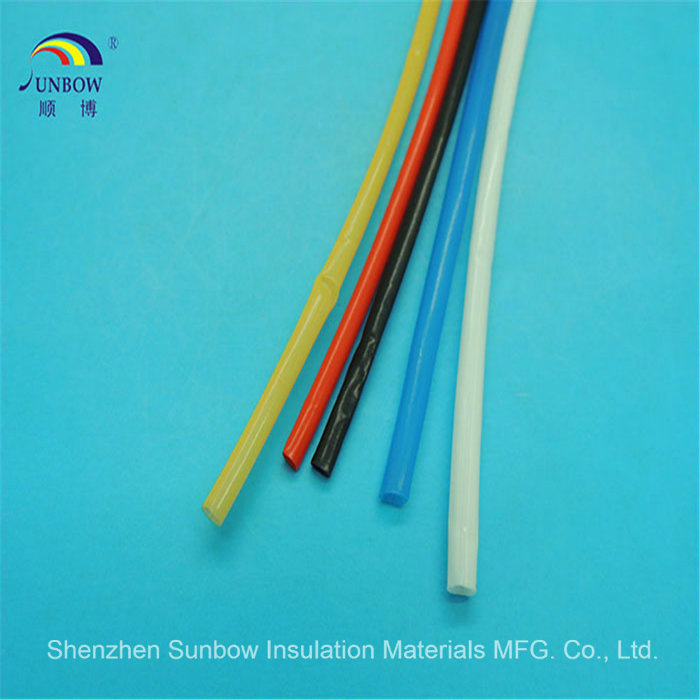

COLOR:  Standard color is black and transparent. Other colors are available upon request.





Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
