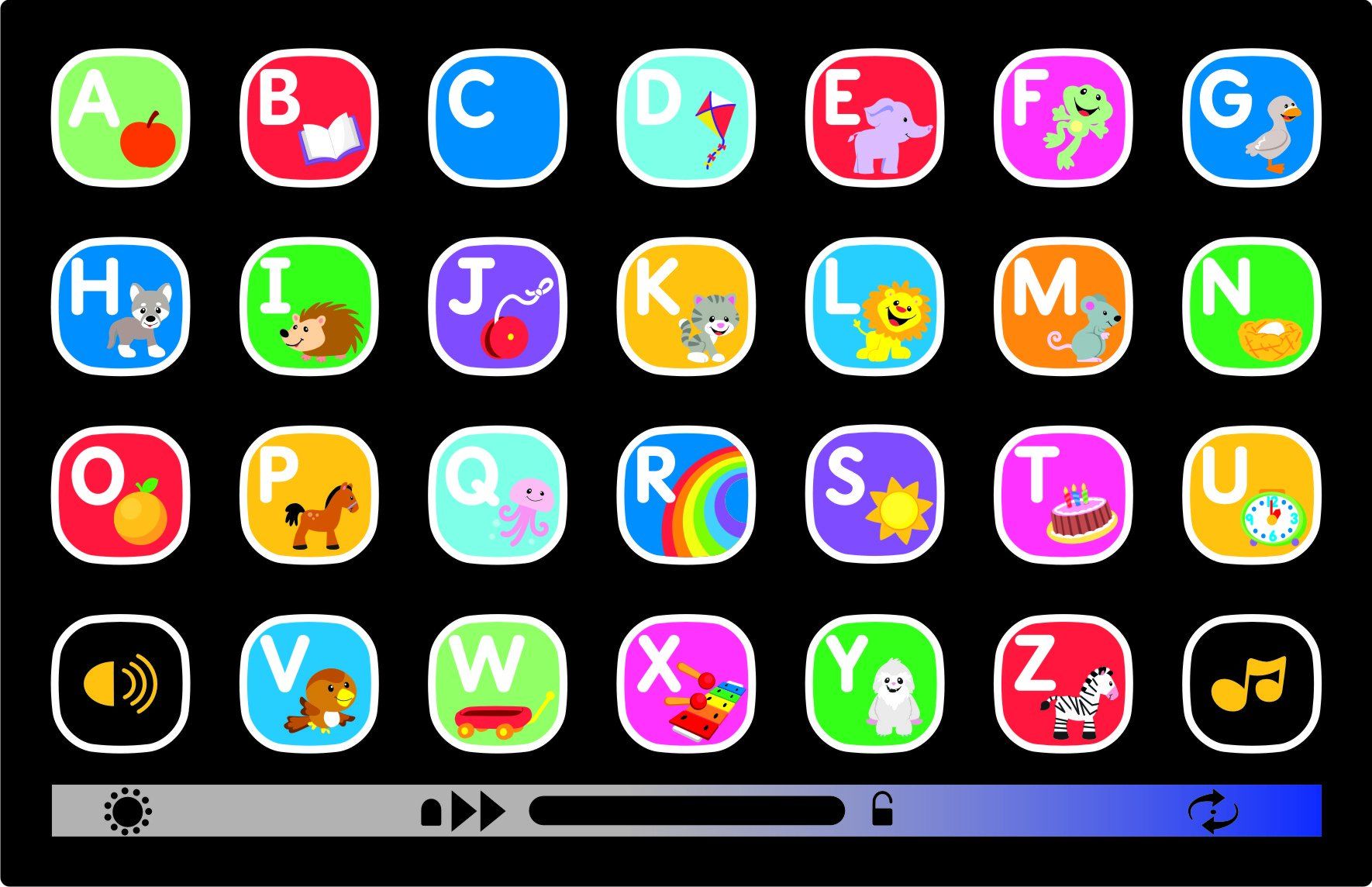

Colorful Electric Circuit Control Overlay Panel Keypad Membrane Switch

Name: Colorful Electric Circuit Control Overlay Panel Keypad Membrane Switch
Brand: all-electronics-online.com
SKU: 695235485
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TKM-MS-012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Touch Feeling:	Excellent Touch Feeling
Type:	Flexible
Material:	PET
Application:	Machines
Contact Type:	Metal Dome
Brand:	Tkm
Certification:	RoHS

Product Description

Colorful Electric Circuit Control Overlay Panel Keypad Membrane Switch

(1) Features:
1. Long using life
2. Applied on appliangce
3. Corlorful and nice appearence
4. Waterproof

(2) Electrical features
Maximum circuit rating: 50 V DC, 100mA, 500mW
Contact resistance: 0.5-10Ω (varied from the trace length and material used.
Insulation resistance ≥ >= 100MΩ At 100V
Dielectric withstand: 250VRms (50 to 60 Hz/min. )
Contract bounce ≤ <=10 ms

(3) Mechanical features
Actuation force: Flat type=57 to 284G (2 to 10oz), tactile type=170 to 397 g(6 to 14 oz)
Switch stroke: Flat type=0.1 to 0.5mm, tactile type=0.6 to 1.5mm

(4) Environmental features
Operation temperature: Flat/metal dome: -20 to 80, poly dome: -20 to 55
Storage temperature: Flat/metal dome: -40 to 80, poly dome: -40 to 60
Operation humidity 90% (40)for 240 hrs
Vibration 20GS max (10 to 200Hz, MIL-STD-202, M204, condition B)

Custom Made	yes/OEM/customize/Any size and shape available	Material	PET/PC/PVC/PCB/FPC/FFC/EL
Adhesive	3M467 & 3M468 or no adhesive or customer required	Operation Temperature	-40ºC~70ºC
Insulation Resistance	<100MΩ,250V DC	Contact resistance	<1Ω /cm
operating voltage	≤ 50VDC	working current	25- 100mA,0-30V DC
reliability/service life	>1 million times/Withstand millions of cycles	Operating humidity	when40°C,<98%RH
spring time	≤ 5ms	substrate voltage	2000V DC
Tail flexiblility	any angle within 180 degree	Switch travel	Flat Type 0.05-0.3mm tactile type:0.3-1.5mm

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
