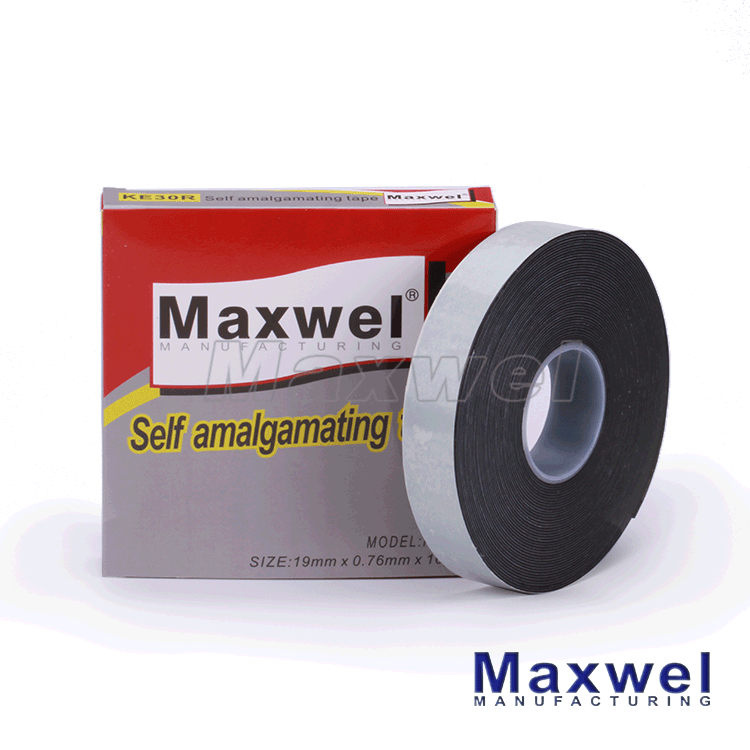

Colorful Epr Insulation Self Amalgamating Fusing Tape

Prod Model:	KE30R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	19mmx0.76mmx9.14m
Colour:	Black,Red,Yellow,Green,etc
Raw Material:	Epr
Elongation:	800%-1000%
Application:	Insulators
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	20KV~100KV
Brand:	Maxwel

Product Description

Self amalgamating tape, self fusing tape, splicing tape, high voltage tape

Features
Non-vulacanizing and highly conformable
Physical and electrical properties are unaffected by the degree of stretch
Can be stretched up to 800% to make void-free
Moisture-resistant insulation, self amalgamating tape
Excellent electrical properties

Application
Primary insulation for make stress cones on cables up to 35KV
Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90° C. Continuous operating temperatures and 130° C emergency overload temperature.

Sizes
19mm X 0.76mm X 9.14m
25mm X 0.76mm X 9.14m
38mm X 0.76mm X 9.14m
50mm X 0.76mm X 9.14m
Special size can be requested.


Model	Tensile strength	Elongation	Disruptive voltage
	(Mpa)	(%)	KV/mm
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
