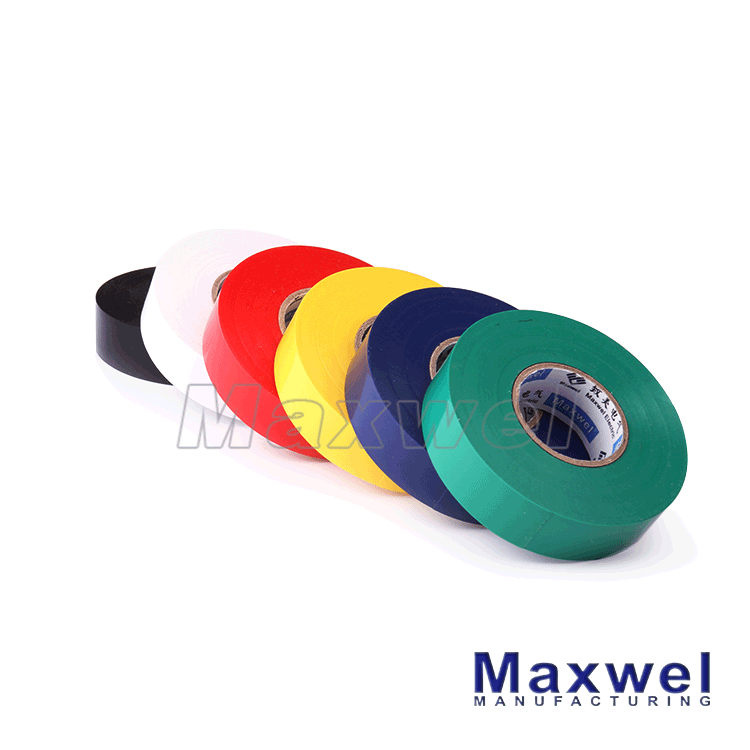

Colorful PVC Adhesive Insulation Tape

Prod Model:	M18O
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.13mm, 0.15mm, 0.18mm
Length:	up to 30m
Width:	up to 1250mm
Application:	Electrical Base, Shell
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Plastic
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Color:	Red, Blue, Yellow,Green, etc

Product Description

Self adhesive PVC Insulating electrical tape, PVC tape


Be up to UL and ROHS standard
Soft PVC Film,Strong rubber adhesive
Excellent insulation,High flame retardant
More than 10 years' experience in pvc tape manufacturing
Excellent resistance to voltage and low temperature
Used for insulation protection of electrical wires and harness in automobile industry

PVC adhesive tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them ,it has the feathers of insulation ,fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts ,automobile wires, winding wires and insulation protection.

Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature

Specification:
Size: 19mm X 9.14m
Log Roll: 1250mm width, length can be cut as customers' request.
Thickness: 0.13-0.2mm
Colour: Black, red, blue, grey, yellow, etc( any color can be requested)
Adhesive: 1.5(N/cm)
Tensile: 25(N/cm)
Elongation: 200%
Temperature: 80
Voltage break dowm: ≥ 40° C

Application: Used for wrapping electrical wires and cables etc.


Please contact us for more information.
Heat Resistant PVC Insulation Tape



Application: Used for wrapping electrical wires, automotive wires harness and cables etc.


Code	Backing& Adhesive	Thickness      (mm)	Adhesion    (N/cm)	Tensile  (N/cm)	Elongation        (%)	Temperature         (°C)	Voltage breakdown    (kv/mm)	Features &application
100D	PVC&      rubber	0.1	1.5	14	160	80	≥40	Used for wrapping electric wires and cables etc.
110D	PVC&      rubber	0.11	1.5	15	160	80	≥40
130D	PVC&      rubber	0.13	1.5	17	160	80	≥40
150D	PVC&      rubber	0.15	1.5	22	200	80	≥40
165D	PVC&      rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard,used for wrapping electric wires and cables etc.
180D	PVC&     rubber	0.18	1.5	28	200	80	≥40
190D	PVC&     rubber	0.19	1.5	28	200	80	≥40
200D	PVC&     rubber	0.2	1.5	30	220	80	≥40
100Z	PVC&     rubber	0.1	1.5	14	160	80	≥40	Flame retardant , used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC&     rubber	0.11	1.5	15	160	80	≥40
130Z	PVC&      rubber	0.13	1.5	17	160	80	≥40
150Z	PVC&      rubber	0.15	1.5	22	200	80	≥40
165Z	PVC&      rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard, flame retardant , used for wrapping electric wires, automotive wire harness and cables etc.
180Z	PVC&      rubber	0.18	1.5	28	200	80	≥40
190Z	PVC&      rubber	0.19	1.5	28	200	80	≥40
200Z	PVC&      rubber	0.2	1.5	30	220	80	≥40
