Column Digital Load Cell for Truck Scale

Name: Column Digital Load Cell for Truck Scale
Brand: all-electronics-online.com
SKU: 829838125
Availability: InStock
Rating: 4.7 (141 reviews)

Price:	US $ 100/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QD-S2
Output:	Analog Sensor
Capacity:	10t-60t

Product Description

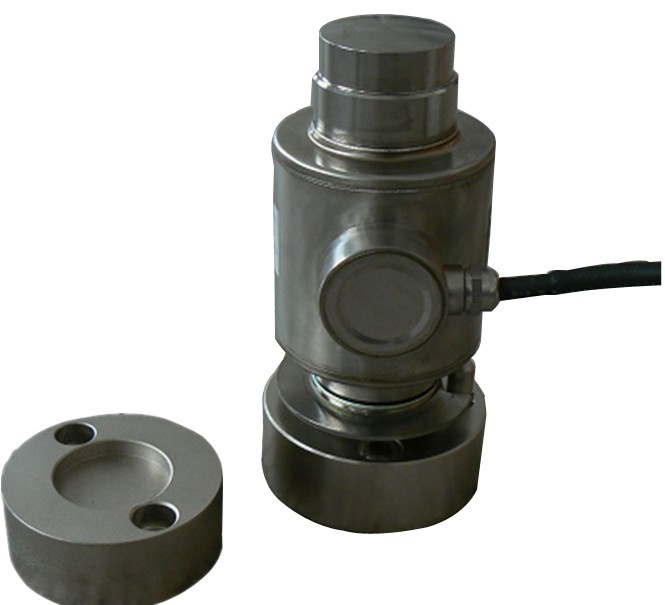

QD-S2 Digital Weighing Load Cells for Truck Scales

Features:

1. Alloy steel or stainless material, stable and reliable performance

2. Easy installation and debugging, good interchangeability

3. Measuring range:10t~60t

4. Double spherical surface reset automatically to the core part, select modules to install, it can resist side-force effectively. Reliable sealing, long-term stability

5. Application in the weighing system like motor truck scale etc.

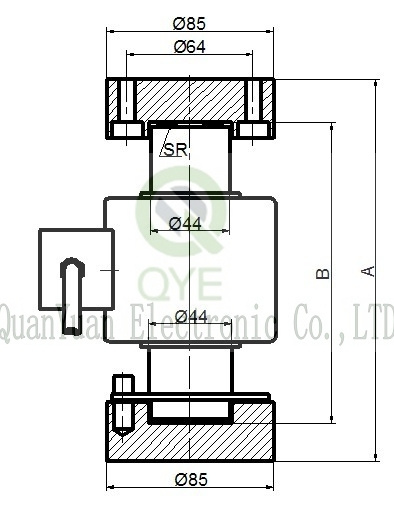

Dimensions: (unit: mm)

Technical Specifications:

Rated load	t	10,20,30,40,60
Digital module resolution	Code	100000
Accuracy	%FS	±0.02
Linearity error	%FS	±0.02
Hysteresis error	%FS	±0.02
Repeatability error	%FS	±0.01
Creep error	%FS/30min	±0.02
Influence of temp. on zero	%FS/10°C	±0.02
Influence of temp. on sensitivity	%FS/10°C	±0.02
Transmission distance	m	RS232≤30m/RS485≤1000m
Baud rate	BPS	600/1200/2400/4800/9600
Zero output	%FS	±0.1
Safe load	%FS	150
Excitation voltage	V	9~12(DC)
Compensated temp.	°C	-10~+60
Operating temp.	°C	-20~+60
Defend grade	IP	IP68

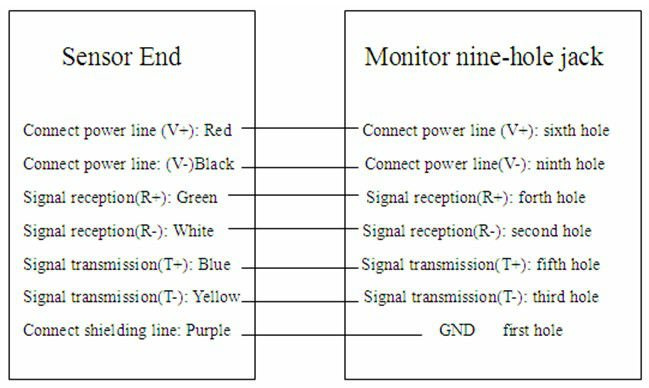

12 m shield cable connection mode:

Packaging & Shipping

Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
According to the clients requirement

Our Services

We are committed to providing a high quality,and responsive services to all clients
Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
Packageing: well box packed and provide optimal freight for you refrence.
All products OEM available

Company Information

Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
