Column Load Cell, IP68, OIML Certificate (CP-15)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
4/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CP-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensitivity: |
2±0.01 |
| Capacity: |
10t, 20t, 30t, 40t |
| Output: |
Analog Sensor |
| Usage: |
Pressure Sensitive Sensor |
Product Description
1. Material: Alloy steel, stainless steel
2. Capacity: 10t, 20t, 30t, 40t
3. Sensitivity: 2± 0.01
4. With OIML certificate, IP68

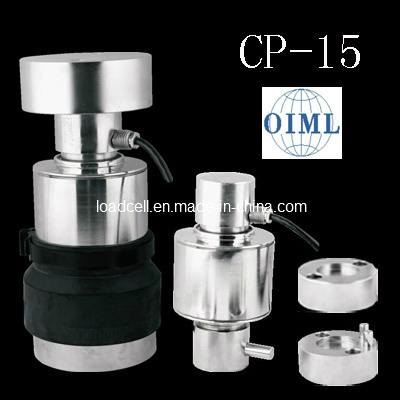

CP-15 load cell is made of high quality alloy steel, stainless steel, with spherical surface on both ends.
It has good selfresetting, compact structure and good performance on water proof with argon welding.
Its low profile is easily to be used among various truck scales, railway scales, hopper and tank scales, etc.
Specification
The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands. |
| Characteristic | CP-15 load cell is made of high quality alloy steel, stainless steel, with spherical surface on both ends. It has good self-resetting, compact structure and good performance on water proof with argon welding. Its low profile is easily to be used among various truck scales, railway scales, hopper and tank scales, etc. |
| Materials | Alloy steel, Stainless steel |
| Suitable for | various truck scales, railway scales, hopper and tank scales, etc. |
| Capacity | 10t, 20t, 30t, 40t |
| Sensitivity | 2.00± 0.010 | MV/V |
| Nonlinearity | ± 0.02 | %FS |
| Hysteresis | ± 0.02 | %FS |
| Repeatability | ± 0.01 | %FS |
| Creep(30 minutes) | ± 0.02 | %FS |
| Zero balance | ± 1.00 | %FS |
| Temperature effect on zero | ± 0.02 | %FS/10º C |
| Temperature effect on output | ± 0.02 | %FS/10º C |
| Input resistance | 700± 5 | Ω |
| Output resistance | 700± 3 | Ω |
| Insulation resistance | ≥ 5000 | MΩ |
| Excitation voltage | 10 | V(DC/AC) |
| Compensated temperature range | -10~+50 | º C |
| Operating temperature range | -20~+60 | º C |
| Safe overload | 120 | %FS |
| cable | Φ 6X12 | M |
| Cable color code | Input: red+ black- Output: green+ white- |
Professional Manufacturer of Sensors------:
Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.
Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Was established in 1985(formerly Hangzhou South-Ocean Sensor Co., Ltd).Main products of South-Ocean involve 18 different series, on more than 1000 specific products, including load cell, force sensor, pressure sensor, instrument and so on.There are kinds of machining center and CNC processing equipment more than 200 sets, measuring and test equipment more than 100 sets.Also we have been committed to innovation work on new product and new process over the years and have a number of patent products.
For more than twenty years, as the most professional sensor manufacturing company in China, Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Has been always focusing on the research and manufacturing of force sensors and load cells.The company adheres to the tenet of excellence, provides high quality products and services to the market.
South-Ocean covers an area of 35 acres, and building area of more than 24000 square meters with modern plants and equipments.There are kinds of machining center and CNC processing equipment more than 200 sets, measuring and test equipment more than 100 sets.These perfect production and test equipments provide a solid guarantee for large-scale production and product quality.Among them, the 20 sets of machining center, 1 set of 1000 tons hydraulic standard force test machine, 1 set of 100 tons lever machine, 1 set of 20 ton dead weight machine, 1 set of high and low temperature oven with 8 cubic meters space.All of these equipments provide necessary conditions for research and production on types of customer-designed force sensors, load cells.
Main products of South-Ocean involve 18 different series, on more than 1000 specific products, including load cell, force sensor, pressure sensor, torque sensor, instrument and so on.The products are capable of processing in the sky and sea, adapt to all kinds of complicated bad temperature, corrosion, vibration and electromagnetic environment.The measurement range of force sensor and load cell is from 10 g to 6000 tons with precision from C1 to C5.The measuring scope of pressure sensor is ranged from absolute pressure to 250 MPa with accuracy of 0.5% F.S to 0.05% F.S.Torque sensor ranges from 0.1 N.M to 200000 N.M, with accuracy from 0.5% F.S to 0.05% F.S.The products are widely used in scale, aerospace, petroleum, construction machinery, tensile test machine, hoisting machinery, industrial control fields, and sold to more than 40 foreign countries and regions
With abundant technical strength, Zhejiang South-Ocean Sensor Manufacturing Co., Ltd.Has been committed to innovation work on new product and new process over the years.Our company has a number of patent product, more than 30 utility model patent/appearance patent and proprietary technologies.South-Ocean's product has a step ahead than others because of years of innovation.
As early as 1999, South-Ocean obtained the ISO quality system certification.Under the well-established quality system, we arranged the production strictly in accordance with international principles as OIML and NTEP.A wide range of products got certificates on the OIML, NTEP, IP, CE, and RoHS etc.
With years of intensive cultivation, South-Ocean Sensor has become the synonym of high-quality goods.We will unswervingly adhere to provide customers with competitive products and service.Let us grow up together!
