Column Type Load Cell/Alloy Steel Load Cell/Digital Load Cell for Truck Scale
| Price: |
US $ 89/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HMD2015CC5/TY2015CC5 |
| Markets: |
South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Pressure Sensor |
| Packaging Detail: |
Carton |
| Delivery Detail: |
in 20 Days |
| Used: |
Weighing Systems, Tank and Hopper Weighing and Veh |
| Measure Method: |
Automatic |
| Display Type: |
LCD |
| Accuracy: |
0.01g |
| Material: |
Alloy Steel |
Product Description

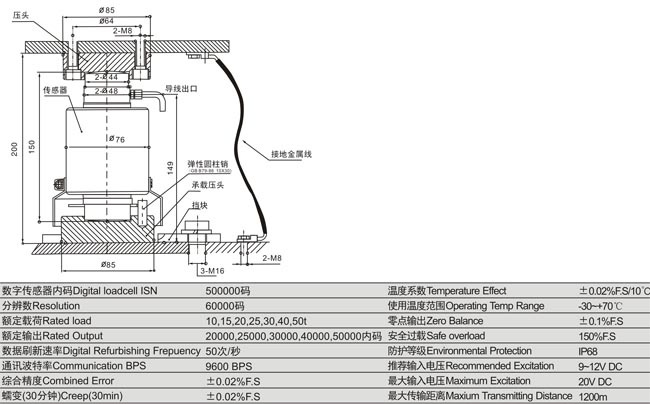

Weight load cell HMD2015D is a single column, stainless steel or alloy steel compression load cell. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments. Applications in weighbridges and silo hopper weighing, hoppers, tanks and silos, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems
Rated Load:
|
30t/40t/50t
|
Sensitivity:
|
(2.0 ± 0.1%)m V/V
|
Combined Error:
|
± 0.05% F.S
|
Creep Error ( 30min ) :
|
± 0.02% F.S
|
Zero Balance:
|
± 1% F.S
|
Temp. Effect On Zero:
|
± 0.017% F.S/10 °C
|
Temp. Effect On Span:
|
± 0.017% F.S/10 °C
|
Input Resistance:
|
750 ± 5 Ω
|
Output Resistance:
|
702 ± 2 Ω
|
Insulation Resistance:
|
≥ 5000M Ω
|
Operating Temp. Range:
|
-30~+70 °C
|
Maximum Safe Over Load:
|
150%F.S
|
Ultimate Over Load:
|
250%F.S
|
Recommend Excitation:
|
10~12V DC
|
Maximum Excitation:
|
15V DC
|
Sealing Class:
|
IP67/IP68
|
Element Material:
|
-A: Alloy Steel, -SS: Stainless Steel
|
Cable:
|
Length=13m
|
Citation:
|
GB/T7551-2008/ OIML R60
|
Mode Of Connection:
|
Red(Input+),Black(Input-),Green(Output+),White(Output-)
|
Yuyao Tongyong Meter Co., Ltd is a factory that was eatablished in 1993s, so far for more than 20 years experience.
Our company covers more than 18000 square meters. We own high character scientific researchers troop. We also have various of advances specialized workshop equioments and famous enterprise which specialized in load cells, weighing indicator and electronic balance and so on.
Our products are popular in the whole country and also be exported to European, American and African countries. And have been granted ISO9001 Quality System Certification.
Located in China's eastern coastal historical and cultural city - Yuyao City, Zhejiang Province. Hangzhou-Ningbo railway, Hangzhou-Ningbo Expressway across the whole territory of Yuyao, from Ningbo Port and Ningbo International Airport more than 50 kilometers, Hangzhou Bay Bridge through Shanghai, land, sea and air transportation convenient.
The company is specialized in producing resistance strain gauge load cell, weighing instrument and electronic weighing electronic scale series of products business; Products sell well throughout the provinces, municipalities and autonomous regions, and exported to Europe, Southeast Asia and other countries. The first batch of high-temperature load cell to achieve the localization of production, the first domestic release of the "high temperature load cell measurement verification procedures" (JJG (Zhejiang) 68-2003), by the Zhejiang Weighing Management and the Company jointly drafted the formulation. The company is high-tech enterprises in Zhejiang Province, Ningbo City, high-tech enterprises, with ISO series of certificates, the national explosion-proof product certification, won several government science and technology awards, the national intellectual property special certificate, GM has been to build China's brand in the struggle.
The main products are: TY series weighing equipment (weighing sensor, electronic scales, electronic weighing, control system), TY- (G) series of high temperature load cell, SCS series of electronic truck scale (ground level, SCS series of electronic truck scale, YD series of various hopper weighing system, HSB series of high temperature ladle (large bags, tundish, etc. ) electronic scales, HCC series of various electronic car scale transformation, XK series weighing control (SCS) -LCS series of electronic weighing device cylinder, OCS series of electronic crane scale and other non-standard electronic scales, such as product design and manufacturing; GCS series track weighing system, TCS series size electronic scales,
Companies attach importance to infrastructure construction and basic management and construction, and strictly implement the scientific management system. The implementation of "customer-centric, quality of survival, " the quality policy, adhere to the quality and efficiency of the road of development, with sophisticated production equipment (100t lever computer load system, large CNC machining centers, large folding, bending machines, Clean patch operation workshop, CAD auxiliary software, and other leading domestic), strict management, high-quality products and good service to win customers and the market.
