Combined Function Am/FM +GPS Active Car Antenna

Name: Combined Function Am/FM +GPS Active Car Antenna
Brand: all-electronics-online.com
SKU: 709844155
Availability: InStock
Rating: 4.8 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-M08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Combined Antenna:	GPS/Am/FM/DVB-T
FM Gain:	7-13dB
Am Gain:	5-11dB
GPS Gain:	26-30dB
Usage:	Car Antenna
VSWR:	1.5~2
Operating Wavelength:	GPS and Radio and DVB-T Antenna
Base Antenna:	Combined Antenna
Sturcture Form:	Mounted by Screw
Dimensionality:	Combined Antenna

Product Description

Car antenna, car radio antenna, AM/FM antenna, car active antenna, Multi-band antenna, car TV antenna, DVB-T antenna, GSM antenna, Shark Fin shape antenna, Car GPS antenna
*AM/FM Electrical Specification
1:Frequency:AM:535-1605KHZ ,FM:87.5-108MHZ
2:Output Impedance:75Ω
3:V.S.W.R-Typical:<2:1
4:AM Gain : 8 ±3dB
5:FM Gain:10 ±3dB
6:Work Voltage:9-16V
7:Consume current:100mA MAX

*GPS Electrical Specification
1:Frequency:1575.42±1.023MHZ
2:Polarization:RHCP
3:Attenuation:fo +/-100MHz>30dB
4:Output Impedance:50 ohms
5:V.S.W.R:1.5:1
6:Ratio:<4dB
7:Patch Dimension(mm):25*25

*LNA Specification
1:LAN Gain(without cable):26-30dB
2:Noise Figure:1.6dB Max
3:V.S.W.R:<2.0
4:DC Voltage:3-5V
5:DC Current:25 mA Max.

*Mechanical/Environmental Specification
1:Radom Color:Black
2:Cable:RG174U
3:Connector:GT5 for GPS ,JASO PLUG for AM/FM
4:Operation/Storage Temperature:-40~+90ºC
5:Pull force from cable:More than 6kgf
6:Pull & Push force of AM/FM PLUG: 4 ±2kgf

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

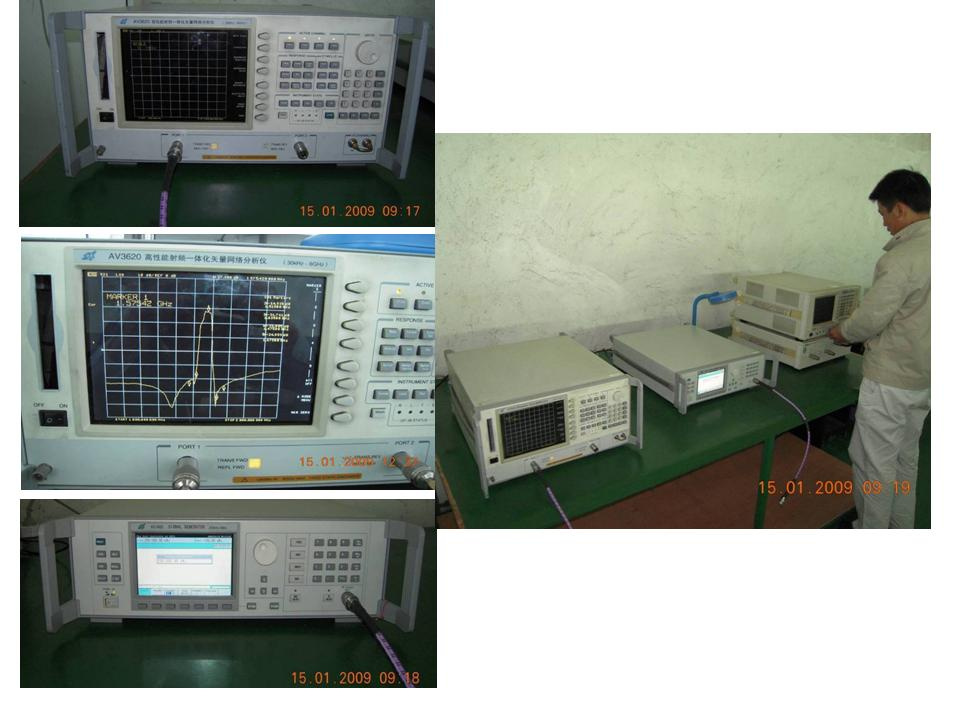

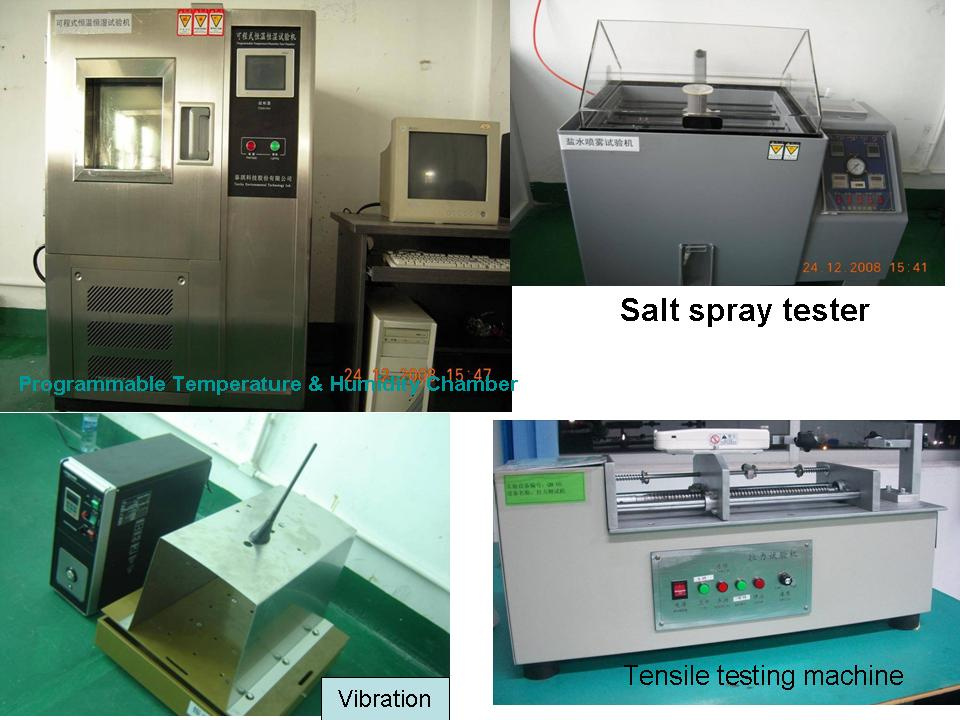

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
