Combined Transformer Substation 40.5kv
| Price: |
US $ 2000-1800000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
ZBM3-40.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Power |
| Structure: |
Protection |
| Brand: |
Cnville |
Product Description

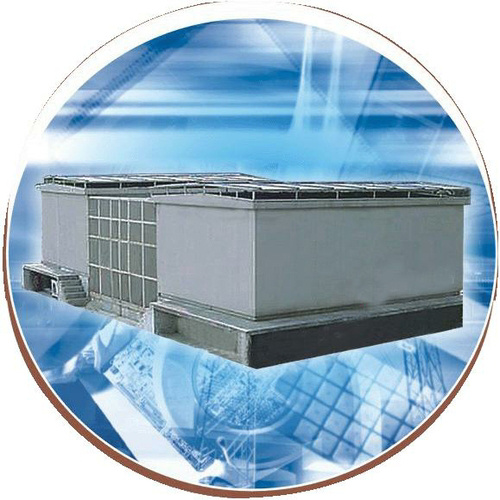

Transformer combined substation is a kind of out-door complete set with three phases,50Hz, alternative current of 35kV&40.5kv high voltage side, 0.4-10kV low voltage side. It is widely used in places of city, small town, factory, oil field and wharf, etc. It is also suitable on some large construction site for power transmission and distribution. It features a complete set, small volume, easy installation and operation, low cost, a higher automation, safety running, etc.
A short erection duration, small occupied area, low investment.
Can be moved, low waste.
High reliability.
Aluminum alloy plate (colorful synthetic plate) enclosure with
well anti-corrosive, long service life characters. And it is lining with
insulating material in inner part, which can resist sun heat radiation.
Inside of substation there are some eauipment for tem perature
dropping and anti-condensation.
Some automation facilities could be equipped.
Can be equipped with all kinds of communication equipment.

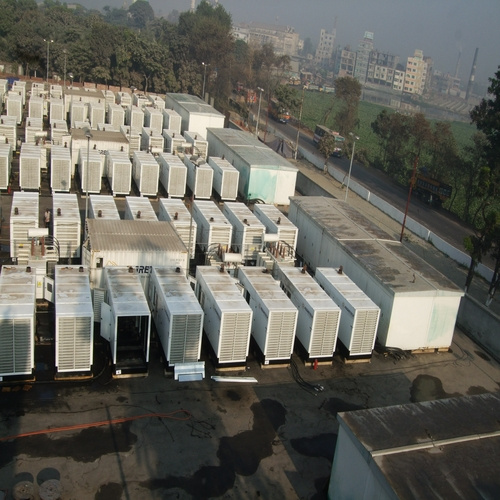

Reference Project in Bangladesh ---Temporary genset power generation

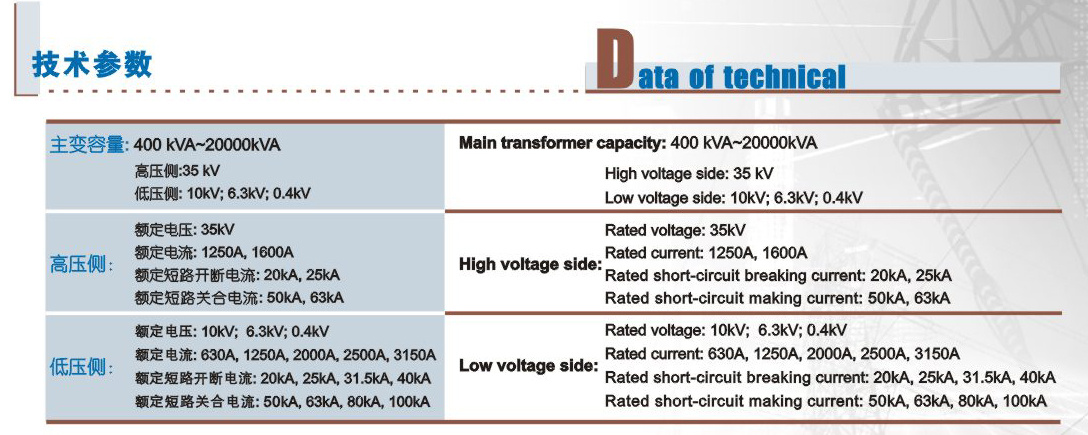

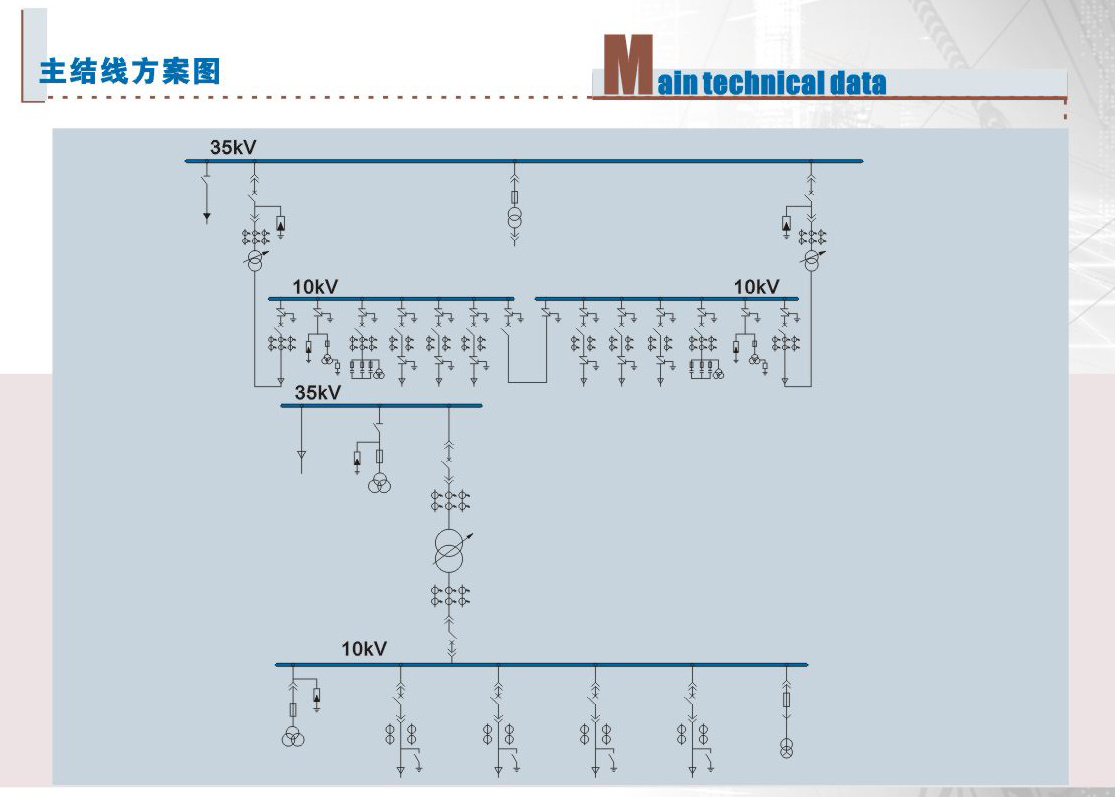

| Unit | Switch cubicle | Circuit breaker | Items | In | Data |
| H.V. unit | 40.5kV | KYN10-40.5
JYN1-40.5 | ZN23-35
ZN12-35
LN2-35(Z) | Rated voltage | KV | 40.5 |
| Rated current | A | 1250-1600 |
| Rated short-circuit breaking current | KV | 20-31.5 |
Rated short-circuit making current
(crest) | A | 50-80 |
On-load startingNAL36
NALF36 | Rated current | A | 630 |
| Rated short-time withstand current | KA/s | 25/2 |
| L.V. unit | 12kV | XGN56-12
XGN2-12
KZN1-12
KYN1-12 | ZN28A-12
ZN28B-12
VD4
VT2-12
VT1-12 | Rated voltage | KV | 12 |
| Rated current | A | 630-3150 |
| Rated short-circuit breaking current(r.m.s) | KA | 16-50 |
Rated short-circuit making current
(crest) | KA | 40-125 |
HXGN11-12
(F)
HXGN26-12 (F) | On-load starting
FN16-12
FN26-12
FN26-12R | Rated current | A | 630 |
| Rated short-time withstand current | KA/s | 20/3,25/2 |
| 0.4kV | GGD
GCT
GCS | DW15
ME, M, F
DZ20
CM, H, S series | Rated current of circuit breaker | A | 70-3900 |
| Breaking capability(400V) | KA | 28-80 |
| Transformer unit | SC9,S9,SZ9 transformer | Rated voltage | KV | 40.5 |
| Rated capability | KVA | 400-20000 |
| Ratio | KV / kV | 35/10,35/6.3,35/0.4 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
