| Prod Model: |
LGH |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Choke Inductor |
| Structure: |
Inductive Choke |
Product Description
Packaging & Delivery
Packaging Detail:tape polybag carton
Delivery Detail:5-10 days after you confirmed your order
Specifications
inductor
1.Contain high-frequency ferrite
2.Comparaticely large rated current
3.ROHS
inductor
Applications:
(1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
(5) Switching power supplies.
(6) Other circuits of consideration aganist radiation.
Low Loss Powdered Iron Cores, Low EMI Toroidal Coils - TCTC Series
- Features
- Low Cost , High Current.
- Lowest EMI - Applications
- Copying Machine, Display Monitor, ADSL Modem, Gaming Machine,
Color TV, Video Camera, Air Conditioner, Refrigerator,
Laundry Machine, Microwave Oven and Car Electronics, etc..
Configurations & Dimensions (unit: mm)
Part NumberDimentions (mm)TurnsInductance We can customize your product
Why common mode inductance can prevent EMI? To figure out this, we need to start analyzing the common mode inductor.

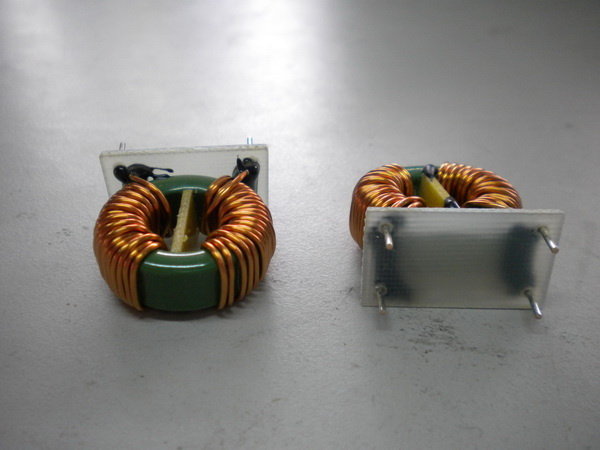

Common mode inductor filter circuit, La and Lb is common mode inductor coil. The two coils are wound around the same core, the number of turns and the phase are the same (reverse winding).. So when the circuit in the normal current flows through the common mode inductor, current in the same phase around of inductance coil produced reverse magnetic field and cancel each other out, when normal signal current is mainly affected by the effects of coil resistance (and a small amount due to leakage inductance caused by damping); when there is a common mode
Figure 3
Figure 3
Flow meridian circle, due to the common mode current in the same direction, in the coil produces the same direction of the magnetic field and increasing the coil inductance, coil performance is high impedance and produce strong damping effect, in order to attenuation of common mode current, achieve the filter. [2]
In fact, the filter circuit is connected to the interference source, and the other end is connected with the jamming equipment, La and C1, C2 and LB constitute two groups of low pass filter, can make the line of common mode EMI signals is controlled at a very low level. The circuit can inhibit the external EMI signal, and can attenuate the EMI signal generated when the line itself, can effectively reduce the EMI interference intensity.
Domestic production of a small common mode inductors with high frequency noise suppression countermeasure and the common mode choke flow coil structure, signal attenuation, small volume, easy to use, with a balance of degree good, easy to use, high-quality, and other advantages. Widely used in the double balanced mixer, multi frequency transformer, impedance transformer, balance and unbalanced conversion transformer... Etc..
And a common mode inductor filter / EMI filter inductor with ferrite core, the bifilar winding, noise suppression best countermeasures, high common mode noise suppression and low differential mode noise signal inhibition, low differential mode noise signal suppression of interference sources, in the high speed signal is difficult to be deformed, small volume, with the balance degree good, easy to use, high quality advantages. Widely used in the suppression of electronic equipment EMI noise, personal computer and peripheral devices USB line, STB, IEEE1394 DVC line, LCD panel, low-voltage differential signal....
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
