| High Saturation Magnetic Induction: |
Low Core Loss |
| Good High-Frequency Characteristic: |
Good Temperature Stability |
| Application: |
Audio |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Phase: |
Single and Three |
| Brand: |
Coilcore |
Product Description
FEATURES:
1) High permeabilityμi (200KHz) , high L and impedance Z in the high frequence range
2) High saturation flux density(1.2T)
3) High curie temperature(580ºC) and excellent temperature characteristics
4) Low remanent flux density Br with DC-tolerance
APPLICATIONS:

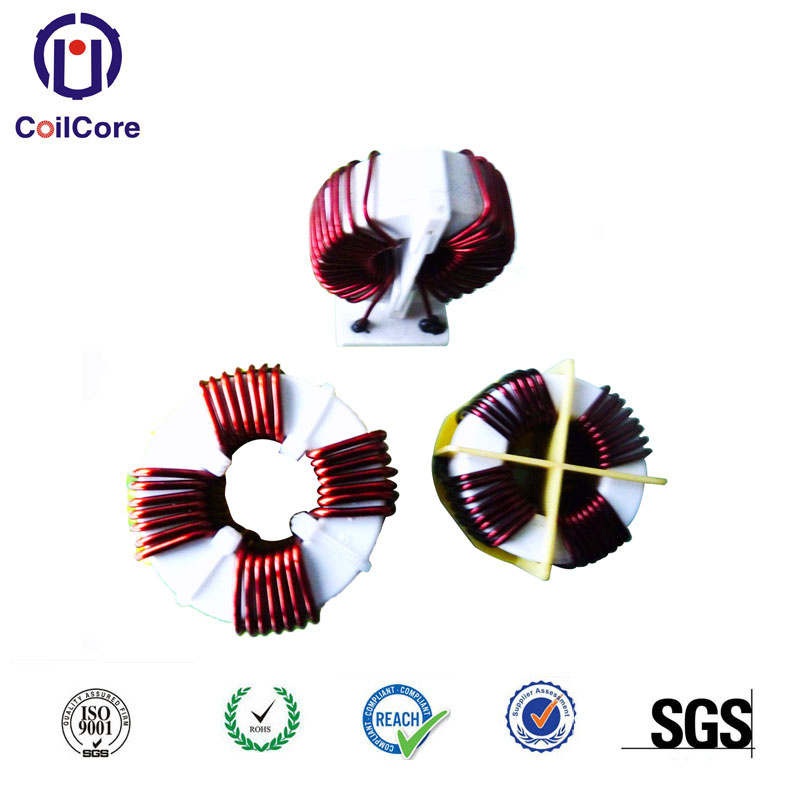

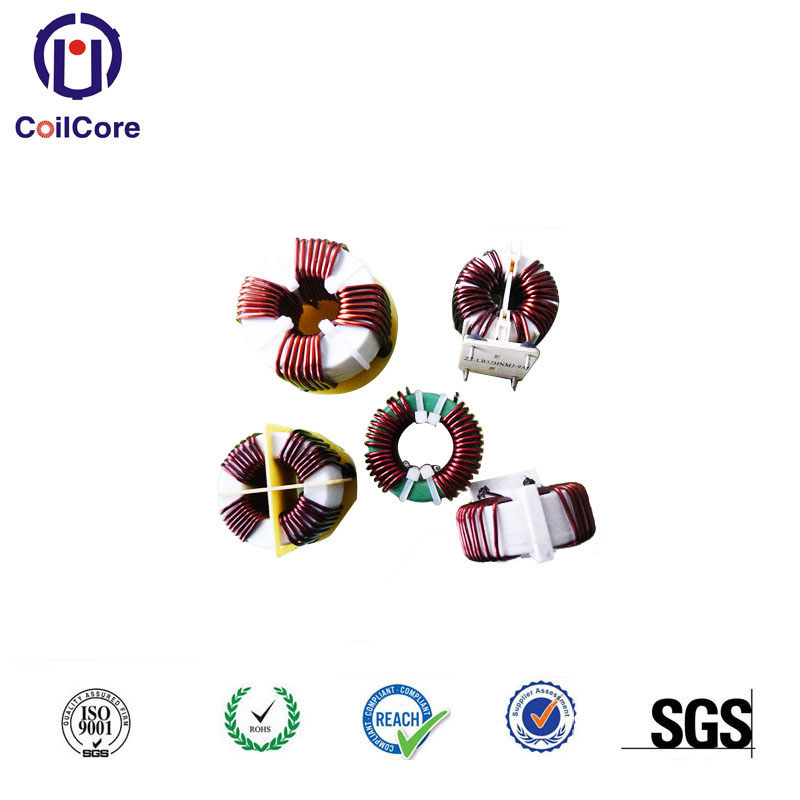

For common mode chokes, power transformers and ELPB
| Item Name | High frequency nano core for common mode chokes |
| Description | High permeability μi (200KHz) , high L and impedance Z in the high frequency range, High saturation flux density(1.2T), High curie temperature(580ºC) and excellent temperature characteristics, Low remnant flux density Br with DC-tolerance. |
| Detail | Magnetic Metals introduces a new line of toroidal cores utilizing the superior performance of amorphous alloy. This new product line is called HFC; High Frequency Choke.
The advantages of an HFC core are its high saturation flux density, low core losses, high DC Bias characteristic, and excellent inductance stability at elevated temperatures.
Magnetic Metals offers ten standard sizes of cores in the HFC series, with three different permeability values. This provides engineers with a wide selection for their designs.
HFC cores are in stock and ready to ship |
| Advantage | HFC have low core loss especially at high frequencies, this special feature is ideal for many applications looking to reduce heat dissipation.
HFC cores have Saturation Flux Density of 15.6 KGauss as compared to 8 KGauss for MPP cores or 4KGauss for Ferrite cores. This feature will reduce the core size significantly in many applications and provides a higher energy storage capability than any other materials.
HFC cores have very low residual flux density or very large Delta B, this feature is excellent for Power Factor correlation circuits or unidirectional drive applications such as flyback transformers and pulse transformers.
HFC cores offer outstanding DC bias and temperature stability characteristics in comparison to any powder cores. |
| Application | Output Inductors.
Storage Inductors.
DC Inductors.
In-line noise filter.
Fly back transformers.
Pulse Transformers. |
| Characteristics | High permeability μi (200KHz) , high L and impedance Z in the high frequency range
High saturation flux density(1.2T)
High curie temperature(580ºC) and excellent temperature characteristics
Low remnant flux density Br with DC-tolerance |
| Specification Sheet | a-core build; b-window width; c-window height;d-strip width;
e-core width;f-core length;Lm-length of magnetic path;
Ac-section area;Mass-weight; |
| P/N | core dimension
od×id×h mm | Limit dimension | G
(g) | Ae
cm2 | le
cm | I eff
mA/ | 10KHz
min | 100KHz
min | ref. P/N |
| OD | ID | H | AL/μH | μ(K) | AL/μH | μ(K) |
| NL100705G | 10×6.5×5 | 11.8 | 5.1 | 6.8 | 1.2 | 0.07 | 2.60 | 5.4 | 19.1 | 65 | 4.8 | 14.5 | ~W914 |
| NL120805G | 12×8×5 | 14.4 | 6.4 | 7.2 | 2.0 | 0.08 | 3.14 | 7.0 | 20.0 | 65 | | | ~W902 |
| NL161008G | 16×10×8 | 17.8 | 8.6 | 10.0 | 5.6 | 0.19 | 4.08 | 10 | 34.0 | 60 | 8.0 | 14.0 | ~W403 |
| NL201208G | 20×12×8 | 22.5 | 10.0 | 10.0 | 9.7 | 0.25 | 5.03 | 10 | 40.0 | 64 | 9.3 | 15.0 | ~W409 |
| NL201210G | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 50.0 | 65 | 11.7 | 15.0 | |
| NL201210GL | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 22-33 | 28-42 | | | |
| NL211508GC | 21×15×8 | 23.6 | 12.1 | 11.4 | 7.5 | 0.19 | 5.65 | 10 | 25.0 | 60 | 5.8 | 14.0 | |
| NL252010G | 25×20×10 | 27.6 | 17.4 | 12.8 | 10.4 | 0.20 | 7.07 | 15 | 21.3 | 62 | 5.5 | 15.5 | W523 |
| NL261910GC | 26×19×10 | 28.5 | 16.2 | 13.2 | 14.1 | 0.27 | 7.06 | 15 | 29.0 | 60 | 6.8 | 14.0 | |
| NL261610G | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 48.0 | 65 | 11.5 | 15.5 | ~W380 |
| NL261610GL | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 21-32 | 28-42 | | | |
| NL302010GC | 30×20×10 | 33.0 | 17.4 | 13.1 | 28.0 | 0.71 | 8.17 | 20 | 46.0 | 64 | 10.5 | 14.6 | ~W423 |
| NL322010GLC | 32×20×10 | 34.5 | 17.7 | 12.5 | 28.0 | 0.71 | 8.17 | 20 | 20-30 | 28-42 | | | |
| NL322015G | 32×20×15 | 34.5 | 17.7 | 18.5 | 42.0 | 0.71 | 8.17 | 20 | 70.0 | 65 | 14.0 | 13.0 | FT-3KM N3320E |
| NL403215G | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 36.5 | 70 | 8.34 | 16.0 | W422 |
| NL403215GL | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 15-22 | 28-42 | | | |
| NL402510GC | 40×25×10 | 43.2 | 22.6 | 13.5 | 43.6 | 0.59 | 10.2 | 30 | 43.0 | 62 | 10.0 | 14.0 | |
| NL402515G | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 76.0 | 70 | 16.0 | 15.0 | W424 |
| NL402515GL | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 31-46 | 28-42 | | | |
| NL462715GC | 46×27×15 | 48.4 | 24.4 | 18.5 | 95 | 1.11 | 11.5 | 30 | 60.0 | 50 | 17.0 | 14.0 | FT-3KM F4627 |
| NL462725G | 46×27×25 | 48.4 | 24.4 | 18.5 | 164 | 1.78 | 11.5 | 30 | 90.0 | 45 | 26.0 | 13.0 | FT-3KM F4627H |
| NL503215G | 50×32×15 | 53.5 | 29.0 | 18.6 | 98 | 1.10 | 12.9 | 30 | 50.0 | 50 | | | |
| NL504020GC | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 34.0 | 50 | 9.5 | 14.0 | W516 |
| NL504020GL | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 20-30 | 28-42 | 7.5 | 11.0 | ~W565 |
| NL504025GC | 50×40×25 | 53.5 | 36.3 | 28.4 | 95 | 0.95 | 14.1 | 30 | 45.0 | 52 | 11.0 | 12.6 | |
| NL523618C | 52×36×18 | 56.0 | 32.0 | 23.4 | 110 | 1.12 | 13.8 | 30 | 53.0 | 52 | 13.0 | 12.7 | |
| NL523625C | 52×36×25 | 56.0 | 32.0 | 28.4 | 150 | 1.55 | 13.8 | 30 | 70.0 | 50 | 17.0 | 12.0 | |
| NL533820GC | 52×36×20 | 57.0 | 34.0 | 24.5 | 122 | 1.17 | 14.3 | 30 | 62.0 | 55 | 14.0 | 14.0 | |
| NL655025G | 65×50×25 | 68.0 | 46.5 | 28.6 | 190 | 1.46 | 18.0 | 40 | 50.0 | 50 | | | ~W517 |
| NL654030C | 65×40×30 | 69.0 | 36.0 | 35.0 | 350 | 2.93 | 16.5 | 40 | 110.0 | 50 | 25.0 | 11.0 | |
| NL805020G | 80×50×20 | 86.0 | 44.7 | 25.7 | 342 | 2.28 | 20.4 | 50 | 72.0 | 50 | 18.0 | 13.0 | W531 |
| NL906020G | 90×60×20 | 95.4 | 56.1 | 24.7 | 395 | 2.28 | 23.6 | 50 | 61.0 | 50 | | | W518 |
| NL1037530G | 103×75×30 | 109 | 70.0 | 35.0 | 670 | 3.27 | 28.0 | 60 | 74.0 | 50 | | | ~W468 |
| NL1008020G | 100×80×20 | 104 | 76.0 | 20.0 | 320 | 1.58 | 28.3 | 80 | 31.0 | 45 | 8.4 | 12.0 | FT-3KM F10080G |
| NL1208030GL | 120×80×30 | 125 | 75.0 | 25.0 | 1100 | 4.80 | 31.4 | 80 | 52-79 | 28-42 | 22.0 | 11.5 | |
| NL13010030G | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 60.0 | 50 | 12.4 | 13.0 | W630 |
| NL13010030GL | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 34-52 | 28-42 | 11.0 | 11.5 | |
| NL17012025G | 170×120×25 | 178 | 112.0 | 32.0 | 1600 | 4.87 | 45.5 | 80 | 68.0 | 50 | | | |
FEATURES:
1) High permeabilityμi (200KHz) , high L and impedance Z in the high frequence range
2) High saturation flux density(1.2T)
3) High curie temperature(580ºC) and excellent temperature characteristics
4) Low remanent flux density Br with DC-tolerance
APPLICATIONS:
For common mode chokes, power transformers and ELPB
