XP POWER (CHINA) ELECTRONICS CO., LTD. >> Common Mode Choke Coil Inductor

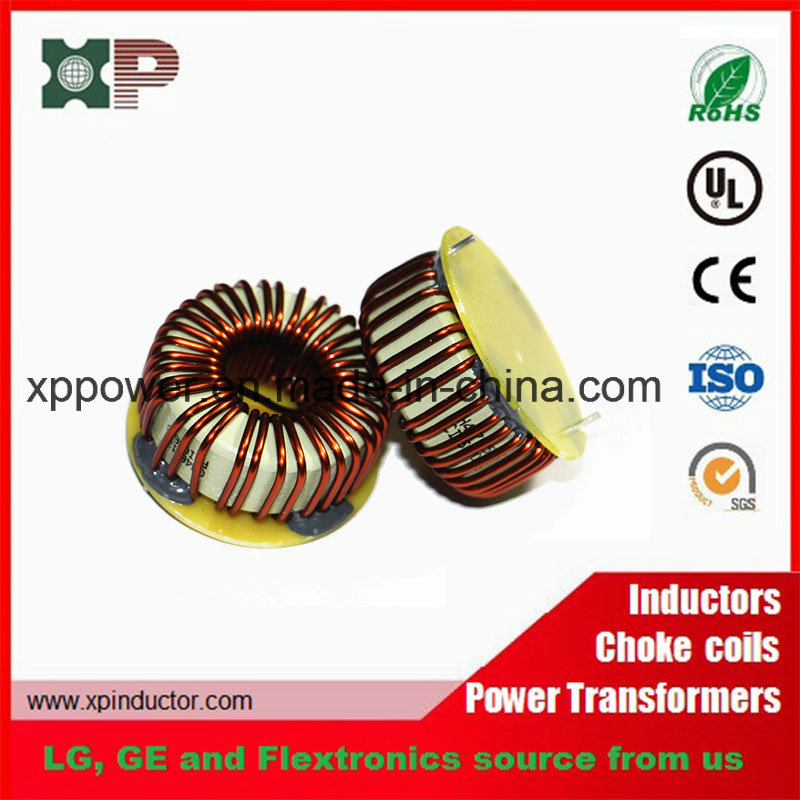

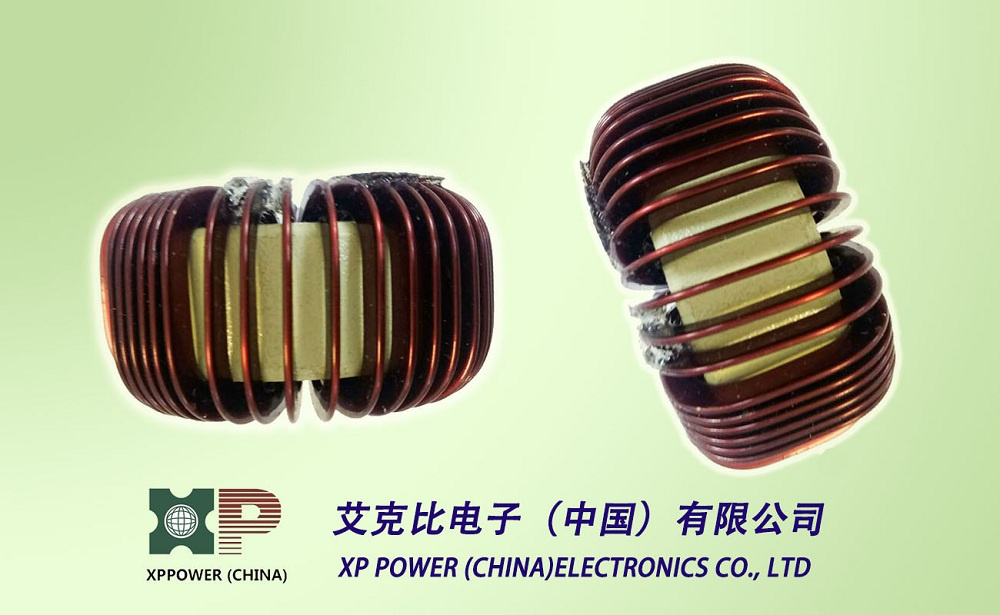

Common Mode Choke Coil Inductor

Common Mode Choke Coil Inductor
Price: US $ 0.2-0.3/Piece
Min Order: 2000/Piece
Pay Type: T/T
Prod Model: XP-ACL-033
Core: Nanocrystaline
Type: Choke Inductor
Structure: Inductive Choke
Range Of Application: High Frequency
Packaging Form: Carton
Brand: XP Power

Product Description



Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

Material list:
1 Core: T14x9x5 TS10 TDG or EQU
2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
3 PCB: FR-4 1.5x9x5
4 Case
5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
XP
Part Number
L@0Amps D.C.
(MH)±20%
MaxRDC.()Suggested Rated
Current (Amps)
XP-ACL2929-0.2MH0.20.0055.5
XP-ACL2929-0.8MH0.80.0065.5
XP-ACL2929-1.8MH1.80
2.45
.0085.5
XP-ACL2929-3.2MH3.20

.0105.5
XP-ACL2929-5.0MH5.00.0125.0
XP-ACL2929-7.2MH7.20.0145.0
XP-ACL2929-9.8MH9.80.0165.0
XP-ACL2929-12.8MH12.80.0205.0
XP-ACL2929-16.2MH16.20.0245.0
XP-ACL2929-20.0MH20.00.0285.0
XP-ACL2929-24.2MH24.20.0325.0
XP-ACL2929-28.8MH28.80.0345.0
XP-ACL2929-33.8MH33.80.0385.0
XP-ACL2929-39.2MH39.20.0465.0
XP-ACL2929-45.0MH45.00.0564.5
XP-ACL2929-51.2MH51.20.0624.5
XP-ACL2929-57.8MH57.80.0903.5
XP-ACL2929-64.8MH64.80.1003.5
XP-ACL2929-57.0MH57.00.1203.5
XP-ACL2929-80.0MH80.00.1802.0
XP
Part Number
L@0 Amps D.C.
(µH) ±20%
Max RDC.()Suggested Rated
Current (Amps)
XP-ACL4545-0.05MH1.5.0049.5
XP-ACL4545-0.20MH2.2.0049.5
XP-ACL4545-0.45MH3.3.0059.5
XP-ACL4545-0.80MH5.6.0059.5
XP-ACL4545-1.25MH6.8.0069.5
XP-ACL4545-1.80MH10.0079.5
XP-ACL4545-2.45MH12.0089
XP-ACL4545-3.20MH15.0089
XP-ACL4545-4.05MH18.0109
XP-ACL4545-5.00MH22.0119
XP-ACL4545-6.05MH27.0129
XP-ACL4545-7.20MH33.0139
XP-ACL4545-8.45MH39.0159
XP-ACL4545-9.80MH47.0169
XP-ACL4545-11.25MH56.0189
XP-ACL4545-12.80MH68.0199
XP-ACL4545-14.45MH82.0219
XP-ACL4545-16.20MH100.0239
XP-ACL4545-18.05MH120.0269
XP-ACL4545-20.00MH150.0289
XP-ACL4545-22.05MH180.0319
XP-ACL4545-24.20MH220.0349
XP-ACL4545-26.45MH270.0389
XP
Part Number
L@0Amps
D.C.(µH)±20%
Max RDC.()Suggested Rated
Current (Amps)
XP-ACL-3838-0.095MH1.2.0046.0
XP-ACL-3838-0.38MH2.0.0055.5
XP-ACL-3838-0.855MH3.3.0065.5
XP-ACL-3838-1.52MH4.7.0075.5
XP-ACL-3838-2.375MH6.8.0085.5
XP-ACL-3838-3.420MH8.2.0105.5
XP-ACL-3838-4.655MH10.0125.5
XP-ACL-3838-6.080MH12.0135.0
XP-ACL-3838-7.695MH15.0145.0
XP-ACL-3838-9.500MH18.0165.0
XP-ACL-3838-11.495MH22.0165.0
XP-ACL-3838-13.680MH27.0185.0
XP-ACL-3838-16.055MH33.0205.0
XP-ACL-3838-16.055MH39.0215.0
XP-ACL-3838-18.620MH47.0235.0
XP-ACL-3838-21.375MH56.0255.0
XP-ACL-3838-24.320MH68.0305.0
XP-ACL-3838-27.455MH82.0325.0
XP-ACL-3838-30.780MH100.0345.0
XP-ACL-3838-34.295MH120.0375.0
XP-ACL-3838-38.000MH150.0435.0
XP-ACL-3838-45.980MH180.0485.0

Key Specifications/Special Features:

-Operating temperature range:-25°C~+110°C with rated current
-Storage temperature range:-25°C~+110°C
-Large permissible D.C. current and low D.C. resistance
-PVC Sleeve protects the winding
-Tolerance of inductance:
3.30μH~39.0μH :±20% (M)
47.0μH ~560μH:±10% (K)
-Test frequency: 1.0kHz
-Various sizes are available
-Small, medium and high-quantity are available
-With wide frequency range
-Low profile power inductor
-Low DCR leaded power inductor
-Large-current SMD power inductor
-SMD magnetically shield power inductor
-Shielded SMD power chip inductor
-Magnetic shielded surface mount inductor with high-current rating
-Low profile and shielded very effective in space-conscious applications
-Low-resistant to deep power loss (minimum)
-Low cost and high reliability
-Small, medium and large quantities available

Applications:

-For smoothing circuit of DC-DC converter, as choke coil or chopper coil
-Suitable for use in power lines of camcorder, LCD set, OA equipment, notebook computer, PDA, -and small size communication equipment
-Notebook
-Inkjet printer
-Copying machine
-ADSL modem
-Cellular phone
-Display monitor
-Video tape recorder
-Video camera
-Color TV
-Lighting and car electronics

Reasons of our top-quality components help your business succeed:

-22 years of experience customizing and power transformers and inductors
-Your professional and reliable partner for various electronics
- Over 1000 buyers value our products
-20000m2 factory with 21 production lines and 800 employees
- 5 million units annual capacity

Browse our online showroom, and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail.

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
