Common Mode Choke Coil, Toroidal Inductor Choke, Filter Choke Inductor

Name: Common Mode Choke Coil, Toroidal Inductor Choke, Filter Choke Inductor
Brand: all-electronics-online.com
SKU: 786425005
Availability: InStock
Rating: 4.5 (24 reviews)

Price:	US $ 5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Brand:	Coilcore

Product Description

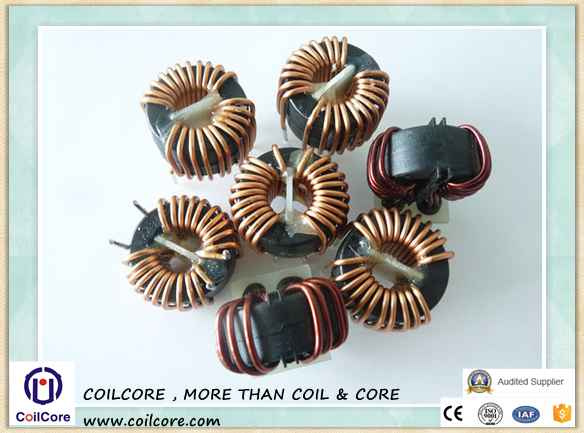

Product Name: Common Mode Chokes

Detailed Product Description:

1.Low cost design;

2.Low DCR and high saturation DC current;

3.Low power lost,low fluency for the around equipment;

4.Annular structure,low radial noise;

5.Different frequency require will be meet by different material;

6.High saturated material,wide inductance range;

7.Lead-free products,RoHS compliant.

Application:

Widely used in switching and automotive systems/power amplifiers/power supplies/SCR control/networks/EM/RFI suppression.

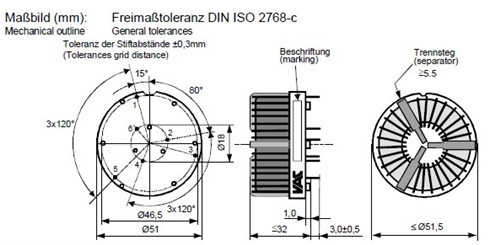

Structural Diagram:

Operating temperature range: -20°c to + 105°c (include coil heat)

Storage conditions: -20°c to + 85°c

Product Name	common mode choke inductor best price
Model	OR8-OR102(inductance coil color .green,gray,red,yellow and while
No.	Model	out diameter(mm)	inside diameter(mm)	High(mm)
1	OR8×5×3	8.0	5.0	3.0
2	OR10×6×5	10.0	6.0	5.0
9	OR12×6×4	12.0	6.0	4.0
12	OR13×7×5	13.0	7.0	5.0
16	OR16×8×5	16.0	8.0	5.0
21	OR18×10×10	18.0	10.0	10.0
23	OR18×10×10	19.0	13.0	13.0
27	OR22×14×8	22.0	14.0	8.0
36	OR28×18×13	28.0	18.0	13.0
39	OR31×18×14	31.0	18.0	14.0
44	OR36×23×15	36.0	23.0	15.0
47	OR38×19×15	38.0	19.0	15.0
53	OR40×25×20	40.0	25.0	20.0
58	OR48×30×15	48.0	30.0	15.0
64	OR56×32×18	56.0	32.0	18.0
67	OR60×38×20	60.0	38.0	20.0
73	OR80×50×20	80.0	50.0	20.0
75	OR87×54×14	87.0	54.0	30.0
77	OR100×50×20	100.0	50.0	20.0

We will feel appreciated if you can provide the parameters of the product or the photo of the item.

All products of the size,electrical performance can be designed

according to customer requirements in R&D.
