Communication Application 48V 100ah Rechargeable Battery Pack
| Price: |
US $ 100-200/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
AGM- 48V 100Ah |
| Nominal Voltage: |
48V |
| Voltage At End Of Discharge: |
40.0V |
| Internal Impedance: |
≤180mΩ |
| Maximum Continuous Charge Current: |
0.5c |
| Warranty: |
12months |
| Payment Terms: |
Western Union or Tt Bank Transfer |
| Delivery Time: |
15-30working Days After Payment |
| Energy Ratio: |
High |
| Cycle Life: |
About 1500-1600times |
| Applications: |
Access Network Equipment, Remote Exchange etc |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Smart Home Products |
Product Description

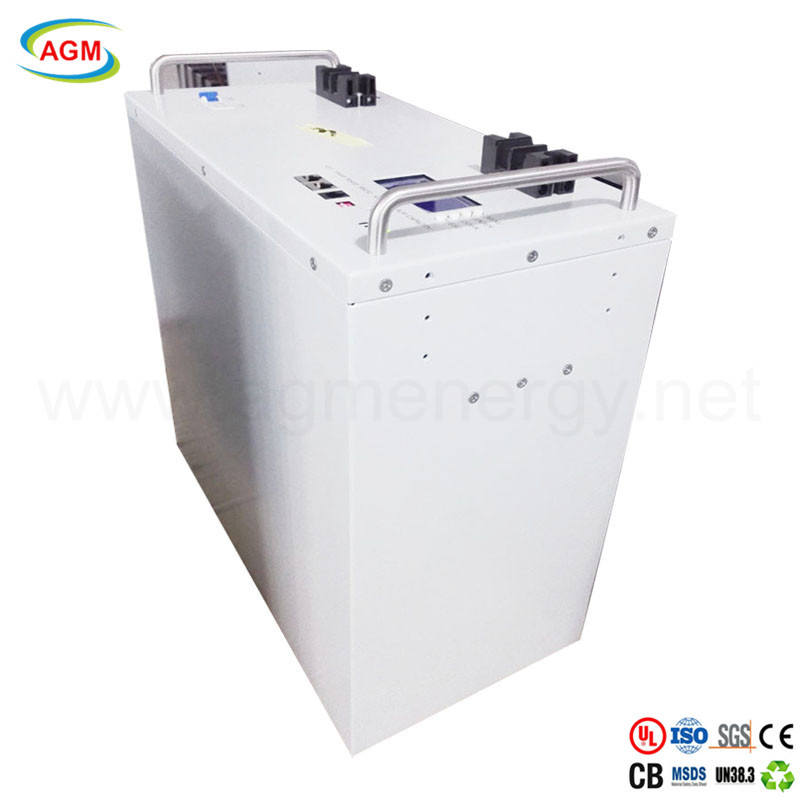

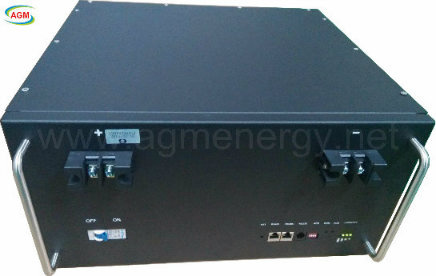

Communication Application 48V 100ah Rechargeable Battery Pack
With overcharge, over discharge, overcurrent, short circuit, over temperature protection. With a communication function, you can communicate with the computer, real-time monitoring of the battery parameters and status of the monomer.
The product is widely used in access network equipment, remote exchange, mobile communication equipment, transmission equipment, satellite ground station, and so on, which is characterized by its integration, miniaturization, convenient battery maintenance, unattended, easy to use, energy saving and environmental protection. And microwave communications equipment and other communications or as a backup power supply.
1.Major Technique Parameters:| 1)Normal Capacity: | 100Ah |
| 2)Min.Capacity: | 100Ah |
| 3)Normal Voltage: | 48V |
| 4)End of discharge Voltage: | 40.0V |
| 5)Maximum Continuous Discharge Current: | 0.5C |
| 6)Internal Resistance: | ≤180mΩ |
| 7)Standard charge: | 0.5C |
| 8)Operation Temperature Range(Charge): | 0-45ºC |
| 9)Operation Temperature Range(Discharge): | -20~60ºC |
| 10)Dimensions: | OEM |
| 11)N.W: | about 42KG |
2.Major Features:| 1)Small Volume. |
| 2)High Capacity,single cell from 500-2600mAh. |
| 3)Rechargeable. |
| 4)Environmental Protection economy. |
| 5)Technique can be customized. |
| 6)High energy density. |
| 7)Fastest Charger |
| 8)Reliable and safety performance. |
| 9)Cycle life over 1000times |

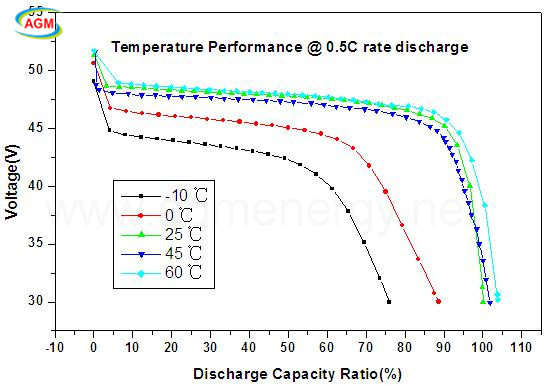

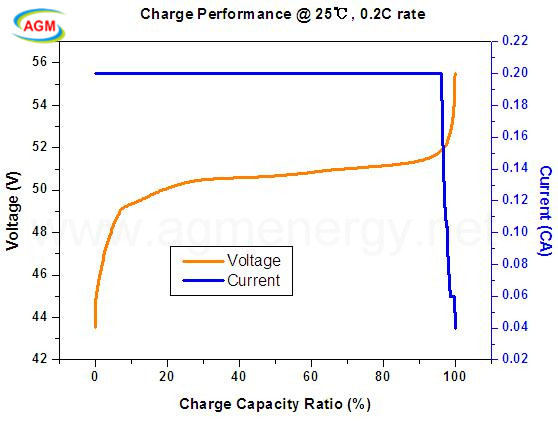

3.Charge &Discharge Curve:
4.Hot Applications:| 1)Wind Energy |
| 2)Notebook Computer |
| 3)E-tools |
| 4)Digital Camera |
| 5)Solar Energy Streetlight |
| 6)Model Aircraft |
| 7)E-Bike |
| 8)Communication Equipment |
| 9)Power Bank |
| 10)UAV |
| 11)Thermal Cloth |
| 12)Movable Lighting |
| 13)Field Mower |
| 14)Automatic Sweeper |
| 15)E-Scooter |
| ... |

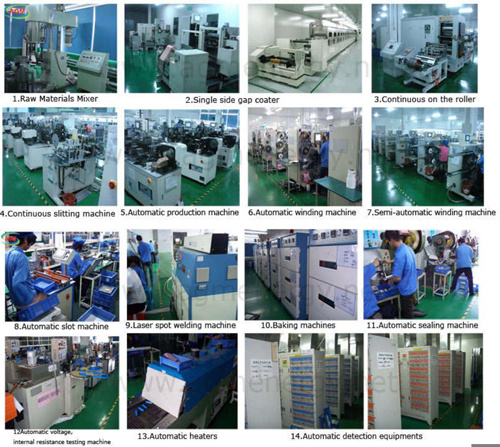

5.Major Production Procedure:
6.,Some photos for certificates:
7.Major tests ensure high quality:| 1)Initial Performance Test |
| A.Open-Circuit Voltage |
| B.Internal Impedance |
| C:Min.Rated Capacity |
| 2)Cycle Life |
| 3)Leakage-Proof Test |
| 4)Vibration Test |
| 5)Drop Test |
| 6)Crush Test |
| 7)Short Circuit Test:BothºC20 and 60ºC |
| 8)Impact Test |
| 9)Forced Discharge Test |
| 10)Nail Pricking Test |
| ... |
8.FAQ:| 1)Q:Can batteries OEM/ODM? | A:Lithium polymer battery and the battery pack can be customized according to customer requirements size, parameters, etc., please provide detailed specifications. |
| 2)Q:Warranty for batteries? | A:Usually 12months after production date(It will not covered by the warranty period if human damage)
|
| 3)Q:Can i get samples | A:No problem.After our discuss details,samples can be arranged soon |
| 4)Q:What are your payment terms? | A:Small orders by Western Union,mass order by TT bank transfer |
| 5)Q:What's the delivery time for mass order? | A:Ensure quality first,if in stock,usually7-10working days;If customized for your requirements and consider qty,it'll need about 15-25working days. |
| 6)Q:When can i get the battery price? |
A:Quotation usually can be sent u within 24hrs,if urgently pls call us and yours can be priority |
9.Some Loading photos:
Cindy H
(Oversea Sales Manager)
Zhuhai Angel Energy Technology Co.,Ltd
Web: www.agmenergy.net agmbattery.en.made-in-china.com
T:+86-0756-6889965 F:+86-0756-5239892
M:+86-13727008595
Any question pls feel free to contact us,thank you!
Zhuhai Angle Energy Technology Co., Ltd is a professional engaged in rechargeable lithium-ion battery research and development, production and sales of the manufacturers. The company has nearly 17 years of experience in technology production, around the "team spirit, integrity management, and strive to innovation, market win-win" business philosophy and technical principles, battery products exported to the United States, Canada, Japan, Korea, Denmark, Britain, France, Bangladesh and so on more than 50 countries and regions and domestic Taiwan, Hong Kong and other markets, by the customer's support and trust. Daily production capacity high-capacity polymer lithium battery more than 200, 000pieces, Cylindrical batteriesmore than 100, 000pieces, E-cigarette battery 200, 000pieces, it's one of China's lithium battery industry major suppliers.
The lithium-ion battery: Cylindrical 18650 lithium battery, has passed UL, CE, CB and other international safety certification, through the SGS test, widely used in mobile DVD, laptop computers, mobile phones, Bluetooth products, MP3 / MP4, PDA, digital cameras All kinds of digital products and model aircraft, power tools, electric golf cars, E-toys, electric mower, electric scooter, Solar battery, RC, UAV, EV etc products.
The company has world-class R & D team and advanced production equipment, technology research and development in the same industry-leading position. We can according to the conventional requirements provided by customers, but also for the changing physical structure and special performance supporting design, from the material testing, design and production of batteries, protection circuit board design, to the finished product assembly, to provide a complete battery solution Program.
