| Prod Model: |
1x8 |
| Applicable Fiber: |
1270~1610(±6.5) CWDM |
| Center Wavelength: |
1270~1610(±6.5) CWDM |
| Insertion Loss: |
<0.6dB |
| Pass Channel Wavelength Range: |
1270~1610(±6.5) |
| Reflect Channel Wavelength: |
1270~1610(±6.5) |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
| Usage: |
Fiber Communication |
| Type: |
CWDM |

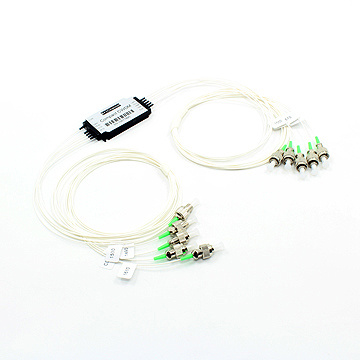

Product Description
Varied customized CWDM Multiplier.
Features:
Widely Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
High Stability and Reliability
Ultra Flat Wide Pass band
Epoxy Free Optical Path
Applications:
System Monitoring
WDM System
Transmitters and Fiber lasers
Fiber Optical Amplifier
Fiber optic instruments
SPECIFICATIONS
| ITEM | PARAMETER | Unit |
| 4 Channel wavelength Range | 1270~1610(±6.5) | nm |
| Insertion Loss | 4 Channel | <3.0 | dB |
| Isolation | Non-adjacent Channel Isolation | ≥40 | dB |
| Adjacent Channel Isolation | ≥30 | dB |
| Return Loss | >50 | dB |
| Insertion Loss Temperature Sensitivity | <0.005 | dB/ºC |
| Polarization Dispersion Loss | <0.10 | dB |
| Polarization Mode Dispersion | <0.10 | Ps |
| Directivity | ≥50 | dB |
| Max Power Handling | 300 | mW |
| Operating Temperature | -20~+70 | °C |
| Storage Temperature | -40~+85 | °C |
| Fiber Type | SMF-28e,2.0mm Loose Tube |
| 2.0mm Loose Tube color | Yellow |
| 2.0mm Loose Tube Lenght | customized |
| Connector Type | customized |
| Connector color | customized |
Note1: All values specified are without connectors.
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows:
Basic Components: Connector kits, Adapter kits, Attenuator kits.Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC.
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
note:the price is for1x8 mini CWDM without connector only.
