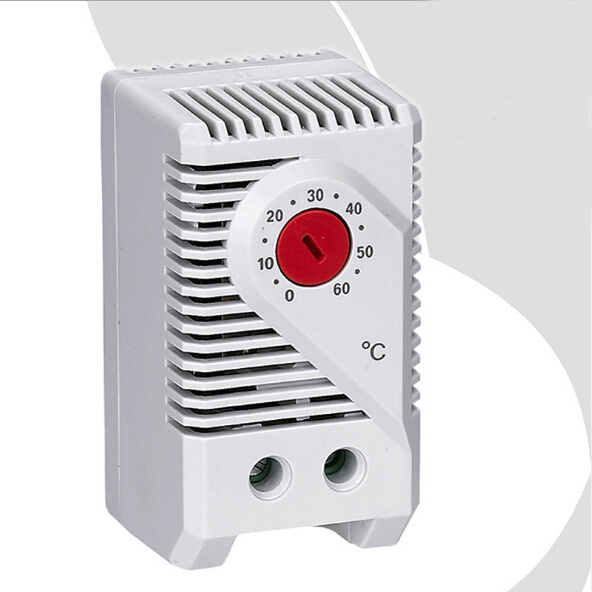

Compact Normally Close (NC) Mechanical Stego Cabinet Thermostat Temperature Controller Thermoregulator Kto011

Compact Normally Close (NC) Mechanical Stego Cabinet Thermostat Temperature Controller Thermoregulator Kto011
Price: US $ 2.3/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: KTO011

Product Description

KTO 011: Thermostat (normally closed); contact breaker for regulating heaters.
KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Technical Data

Switch temperature difference7K (± 4K tolerance)
Sensor elementthermostatic bimetal
Contact typesnap-action contact
Service life> 100,000 cycles
Max. Switching capacity250VAC, 10 (2) A
 120VAC, 15 (2) A
 DC 30W
Connection2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
Mountingclip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casingplastic according to UL94 V-0, light grey
Dimensions60 x 33 x 43mm
Weightapprox. 40g
Fitting positionvariable
Operating / Storage temperature-45 to +80°C (-49 to +176°F)
Protection typeIP20



Setting rangeArt. No. Contact Breaker (NC)Art. No. Contact Maker (NO)Approvals
0 to +60°C01140.0-0001141.0-00VDE
-10 to +50°C01142.0-0001143.0-00VDE + UL File No. E164102
+20 to +80°C01159.0-0001158.0-00VDE + UL File No. E164102
+32 to +140°F01140.9-0001141.9-00VDE + UL File No. E164102
+14 to +122°F01142.9-0001143.9-00VDE + UL File No. E164102
0 to +60°C01146.9-0001147.9-00VDE + UL File No. E164102

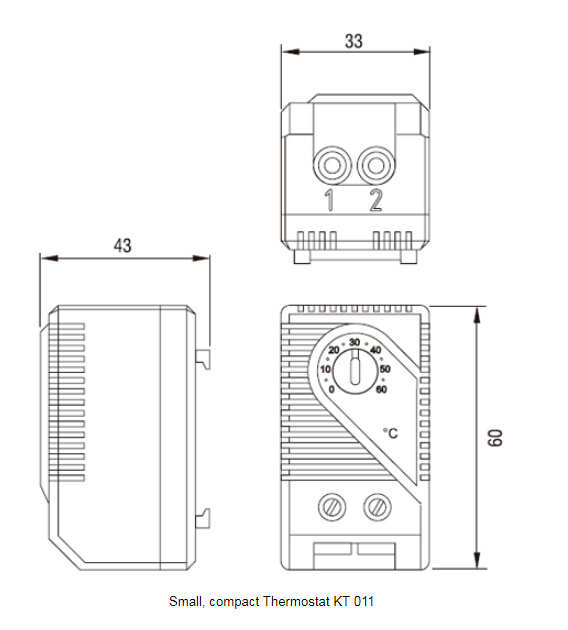

Technical drawing
