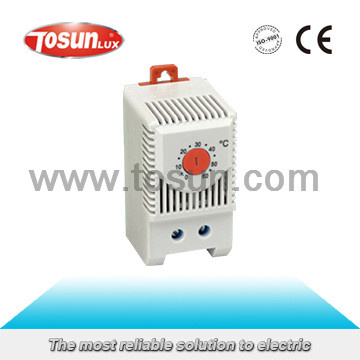

Compact Thermostat with Small Size

Name: Compact Thermostat with Small Size
Brand: all-electronics-online.com
SKU: 755237265
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 3-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO011 NC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Temperature:	-20 to +80°c
Contact Type:	Snap-Action
Protection Type:	IP20

Product Description

APPLICATION

KTO 011:Contact breaker for regulating heaters.

KTS 011:Contact maker for regulating filter and heat exchangers or for switching signal device when termperature limit has been exceeded.

FEATURES

1. Large seeting ranges

2. Small size

3. Simple to mount

SPECIFICATION

KTO 011 NC(red)	When the temperature reaches the set value, open circuit.
KTS 011 NO(blue)	When the temperature exceeds the set value action, closed circuit.
Switch Temperature Difference	7K(±4K tolerance)
Sensor Element	Thermostatic bimetal
Contact Type	Snap-action
Contact Resistance	<10m ohm(incidental connection line)
Service Life	>100,000 cycles
Max. Switching Capacity	250VAC, 10(2)A
	120VAC, 15(2)A
	30WDC at 24VDC to 72VDC
Connection	2-pole terminal, clamping torque 0.5Nm max. Rigid wire 2.5mm2
Casing	Plastic according to UL94 v-0,light grey
Installation	35mm DIN Installation guide
Fitting Position	603343mm
Operating/Storage Temperature	-20ºC to +80ºC
