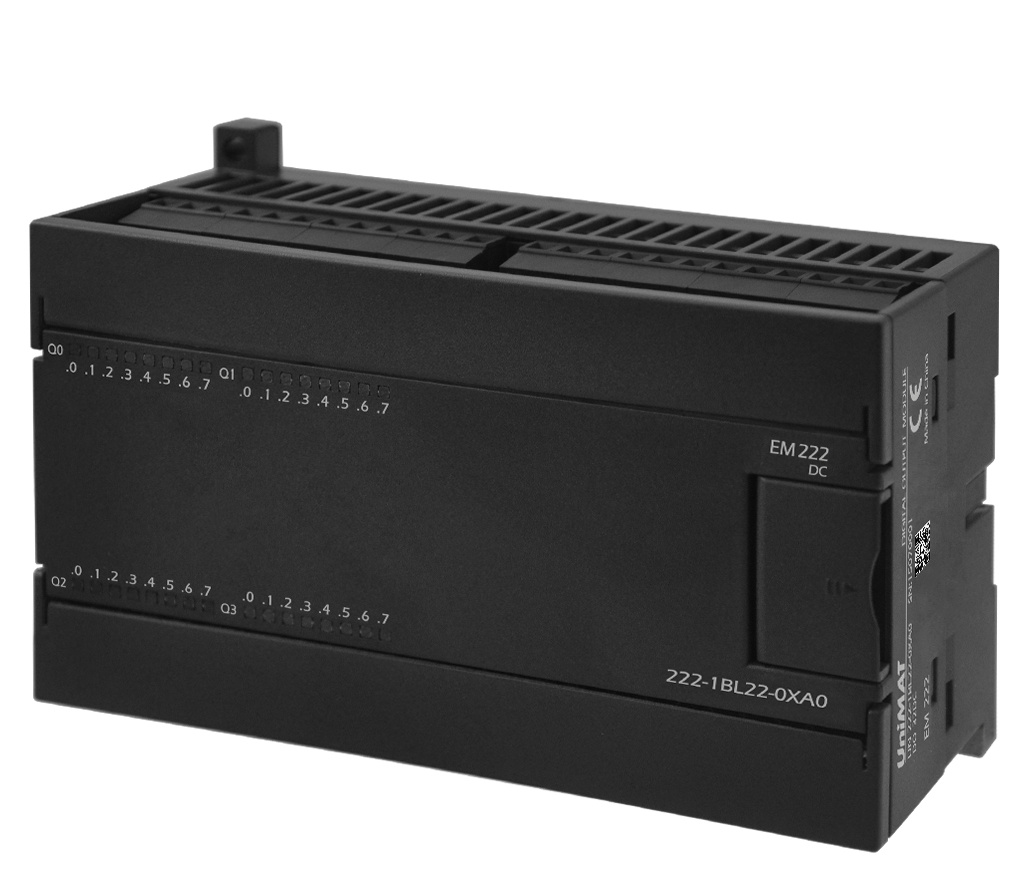

Compatible Siemens 6es7 222-1bl22-0xa0 Unimat PLC with 24V DC Transistor

Compatible Siemens 6es7 222-1bl22-0xa0 Unimat PLC with 24V DC Transistor
Price: US $ 1-100/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: UN 222-1BL22-0XA0
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Automatic Control

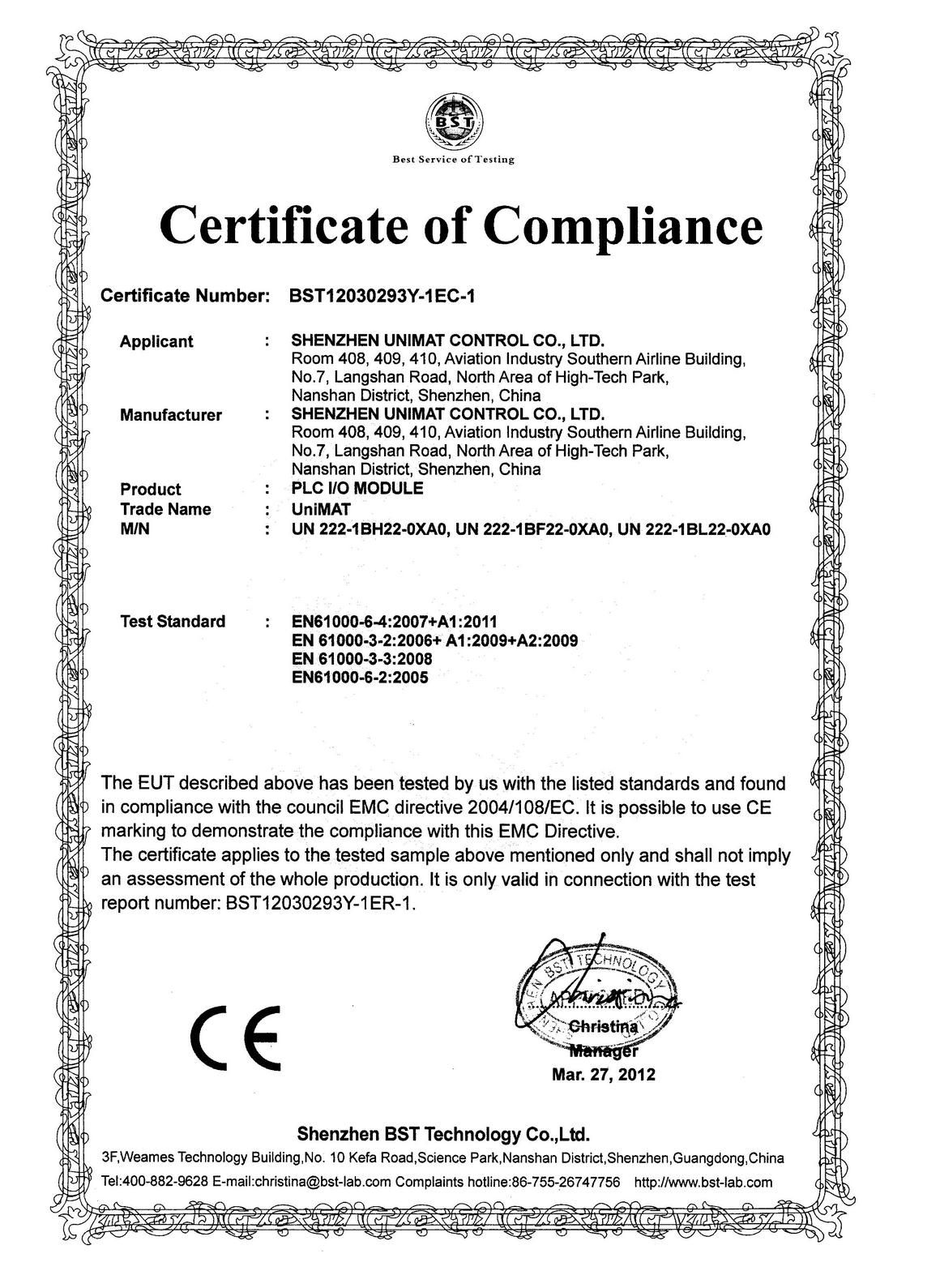

Certification: CE

Product Description

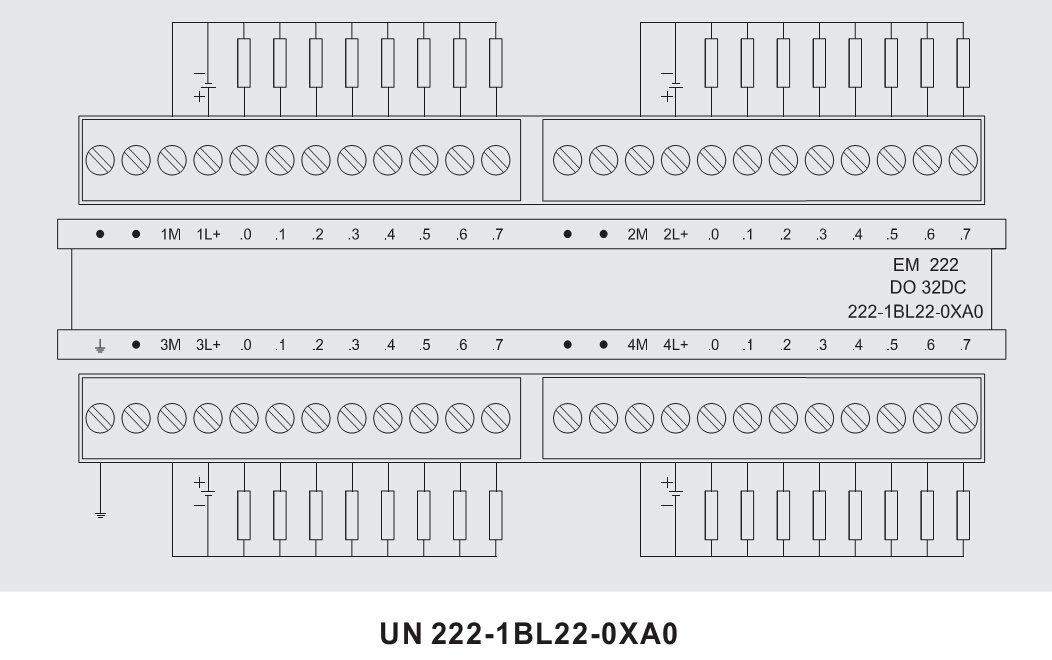

EM 222 32 outputs digital Modular PLC , the replacement of Siemens PLC

1). EM222 32 DO ,  24V DC with transistor  ;
2). Compatible with Siemens 6ES7222-1BL22-0XA0 ;
3). Digital output module ;
4). Could connect with Siemens 200 CPU ;
5). 3- year warranty ;


Technical specifications
Power consumption
· The bus current consumption140mA
· Power loss5.2W
Number of digital outputs32
Signal Output typeTransistor
IsolationOptical coupler
Rated voltage24  V  DC
Permissible Voltage range20.4~28.8VDC
Rated current0.75A
Lamp load switching frequency5W
Cable length(shielded)500m
Cable length(unshielded)150m
Dimension(wxhxd)mm137.5x80x62
Weight150g
Oder No.UN222-1BL22-0XA0
History:

UniMAT Automation Technology Co., Ltd established in 2004.

With the philosophy "based on quality, morality, and be surpassing by heart with concentrated attention", we are now in the leading fleet of China Industrial Automation.

Business range:

We focus on the field of core control, create UniMAT brand, self-research and self-production PLC, HMI, servo driver, converter, industry specialized controllers and other automation products.

We also provide systematic comprehensive solutions for equipment production and system integration.

Company profile:

Our enterprise has good relationship with colleges and universities and builds research centers in Shenzhen and Wuhan.

35% of our employees are R&D engineers. All of these help our company win the title of "state-level high-tech enterprise" and "software enterprise".

Application:

Over the past few years, our products are widely used in the field of metallurgy,

Chemical engineering, environmental protection, renewable energy, electric vehicles, logistics etc.

We are dedicated ourselves to develop Chinese high-end equipment manufacturing.

Service:

We pay serious attention to the product quality, providing 3-year free quality warranty for PLC products and 18-month quality warranty for other products.

Sales:

At present, we have set up over 20 branches in Beijing, Shanghai, Guangzhou and other cities to form service site nationwide.

At the same time, our international business has expanded to more than 20 countries and districts,

And won good reputation widely.

Target:

Our mission is using technology to enhance human productivity,

And striving for being a global respected leading enterprise in industry automation field.
