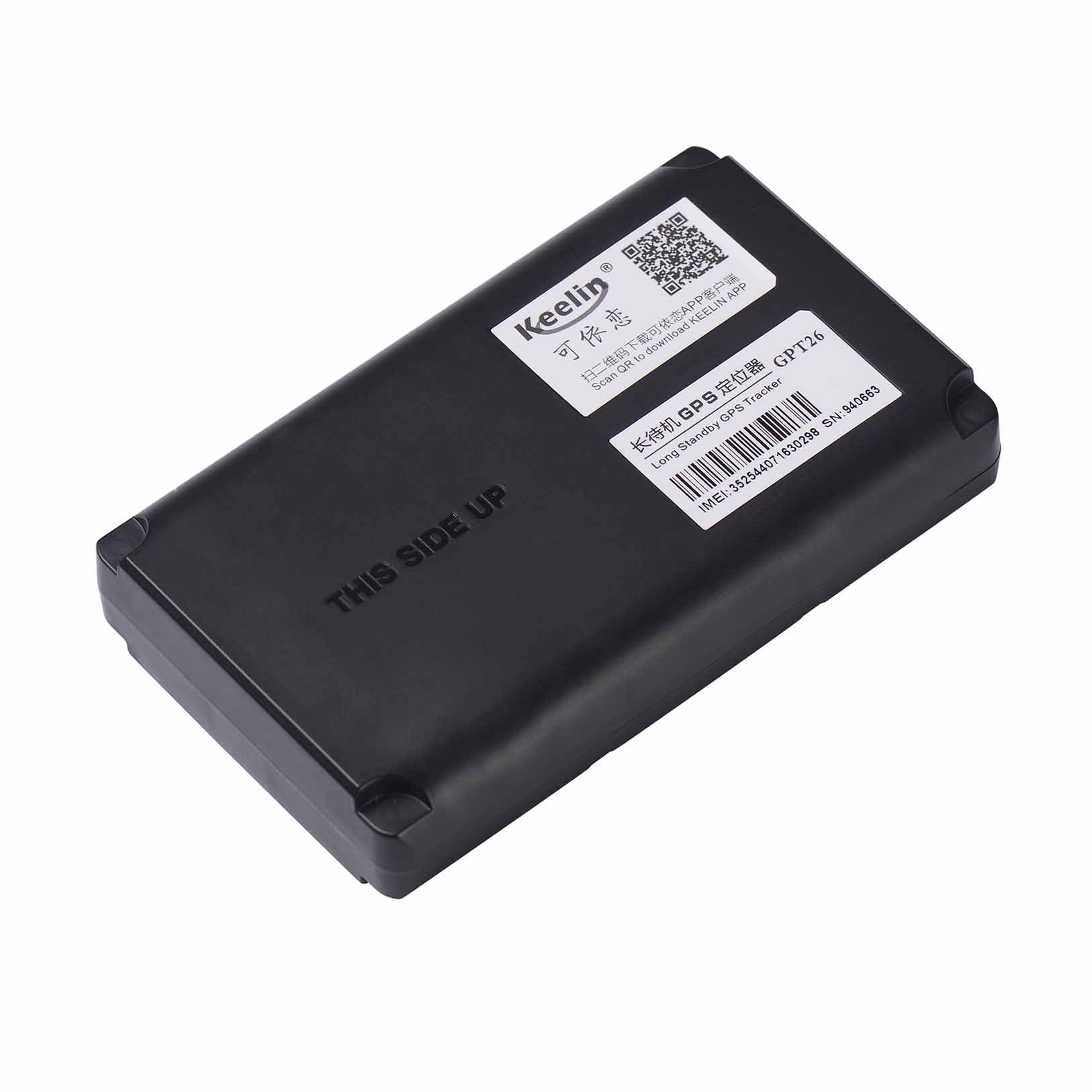

| Prod Model: |
GPT26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gpt26 |
| Color: |
Black |
| Weight: |
180g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
3.7VDC |
Product Description
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/App/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink GPS Tracking device products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*GPS / LBS Double locating mode , support A-GPS
*Usually LBS working, GPS can be enable when needed (automatically closed after 6 hours)
*Built-in 7000mAh High-capacity battery, The longest standby for a month (LBS status)
*Strong magnetic force,can be adsorped on iron
*Military grade three anti-performance, waterproof to IP67
*Keelin Tracking Service Platform, Keelin APP Client, SMS query
*Support EELINK protocol, can be integrated to any platform of the customer's
*OTA upgrade firmware.
Base Specification
Voltage: 3.7VDC
Standby Current: <30mA
Work current: <15uA
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
Hot/warm/cold start time: <3s, <15s, <60s
Dimensions (mm): 108.5(L) × 66.5(W) × 22.4(H)
Operating temperature: -20º C~70º C
Operating humidity: 20%~80%RH
Net Weight: 180 g
Alarm Type
Vibration Alarm
Speed Alarm
Geo-fence Alarm
low battery alarm
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
| Base Specification |
| Voltage: | 3.7V DC |
| Standby Current: | <30mA |
| Work current: | <15umA |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m |
| GPS Frequency: | 1575MHz |
| GSM Frequency: | 850/900/1800/1900MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Battery capacity | 7000mAh |
| Dimensions (mm): | 108.5(L) × 66.5(W) × 22.4(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 180 g |
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
