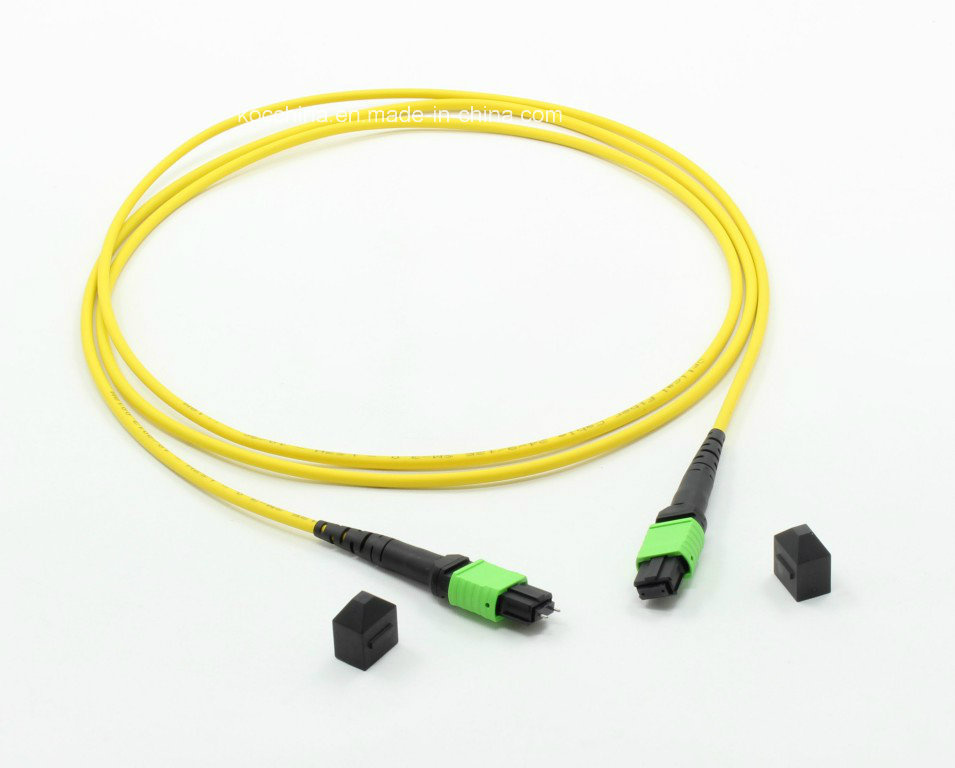

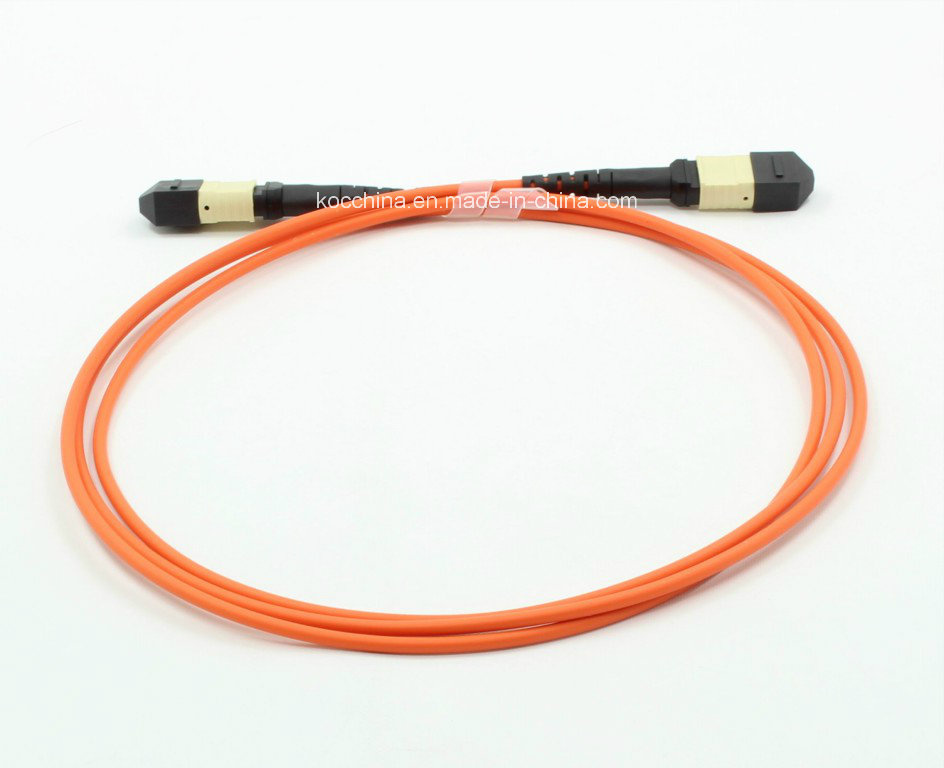

Competitive Price MPO Fiber Optic Cable
| Price: |
US $ 0.6-1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC/SC/FC/ST/MPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Size: |
0.9mm 2.0mm 3.0mm |
| Housing Color: |
Blue Green Beige |
| Boot Color: |
Blue Green Red |
| Cable Jacket: |
PVC Lszh Ofnp |
| Housing Material: |
ABC Pei PC |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description
All kinds of patch-cords: LC, MU, E2000, SMA, DIN, D4, ESCON, FDDI, FC, ST, FC
Features:
1) Low insertion loss and back reflection loss
2) Good durability
3) Standard: Compatible with DIN47256
4) High temperature stability
5) Good exchangeability
6) Single mode, multi-modes
Our Services1.Fiber optic patch cord , pigtail, armoured patch cord , armoured pigtail
2.fiber optic connector and adapter , hybrid adapter, bare fiber adapter
3.optic splice closure , dome closure, horizontal splice closure , splitter closure ,drop wire clamp,drop wire closure
4.FTTH splitter distribution 12cores, 16cores,24cores, 32 cores, 48cores
5.fiber optic splitter, fiber optic coulper PLC splitter
6.fiber cabinet, fiber patch panel, ODF, wall mount, rack mount ODF
7.ADSS cable accessories
Description | Fiber Optic Patch Cord |
Item NO. |
Test Item |
Unit |
Standard & Requirement |
1 |
Appearance |
/ |
No crack, No scar, good conformability |
2 |
Ferrule polished end |
/ |
No scar, No spot |
3 |
Insertion loss |
dB |
SM≤0.2, |
4 |
Return loss |
dB |
APC≥-60 PC≥-50 |
5 |
Curvature eccentricity |
um |
<50 |
6 |
Fiber core undercut |
um |
-<50 |
7 |
Fall apart test |
dB |
H=1M,connector free-falling 5 times
Insertion loss change< 0.1,Return loss change< 5,No flab,
No distortion |
8 |
Repetitiveness |
dB |
Insertion loss change< 0.1
Return loss change< 5 |
9 |
Insert & pull out |
/ |
Max: 2KG |
10 |
Tensile strength |
dB |
0- 10KG per minutes
Insertion loss change< 0.1,Return loss change< 5,No flab,
No distortion |
11 |
Addition |
dB |
2.5Kg,200times,10times/minutes,±80°
Insertion loss change < 0.1,Return loss change< 5, No flab,
No distortion |
12 |
Package |
/ |
Clean, Correctitude, No dirt |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
