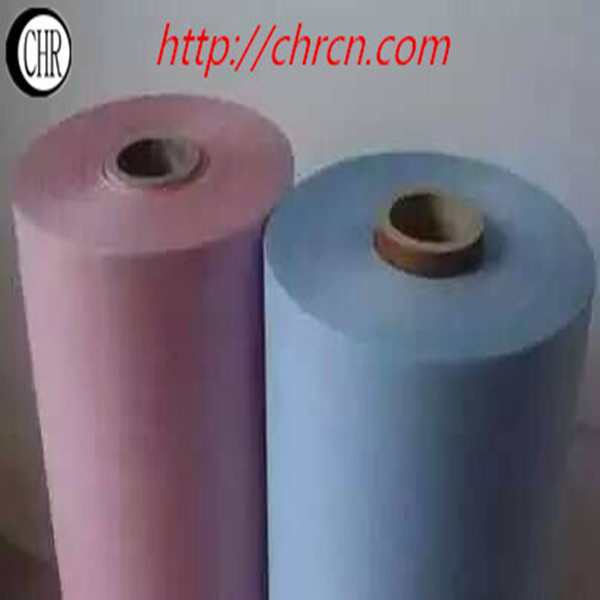

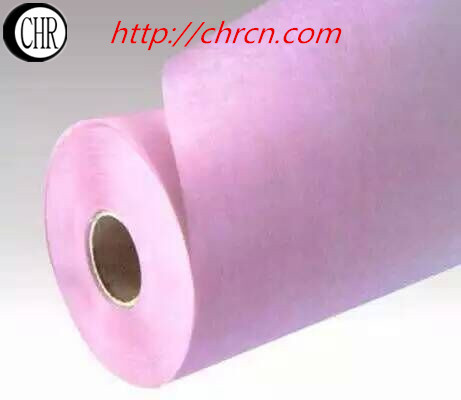

Composite Electrical Insulation Paper 6641-F DMD

Name: Composite Electrical Insulation Paper 6641-F DMD
Brand: all-electronics-online.com
SKU: 703244782
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 2.4KG
Trade Terms:	FOB,CFR,CIF
Min Order:	800KG
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	6641-F DMD
Markets:	Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia
Thickness:	0.17mm-0.35mm
Width:	1000mm
Heat-Resistance:	F Class 155
Storage Life:	1 Year
Application:	Switch Baseplate
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	<10KV
Color:	Pink
Brand:	Chr

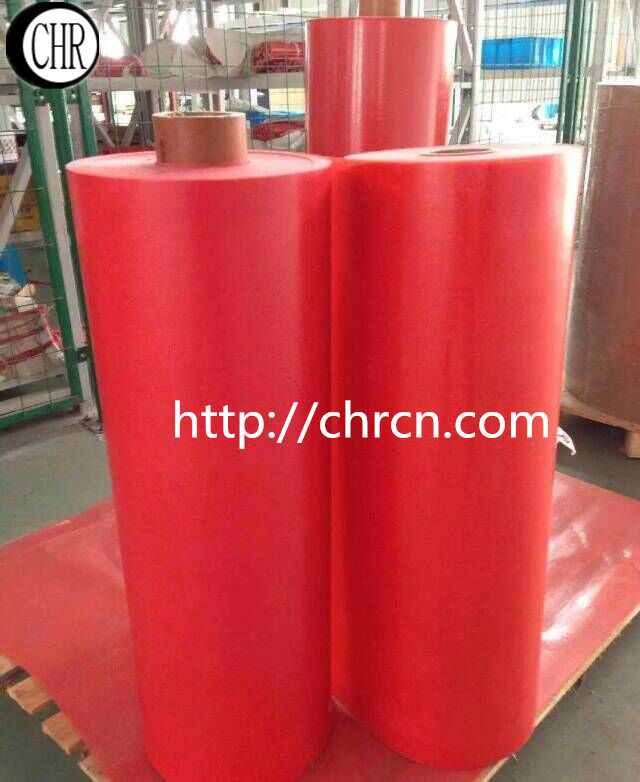

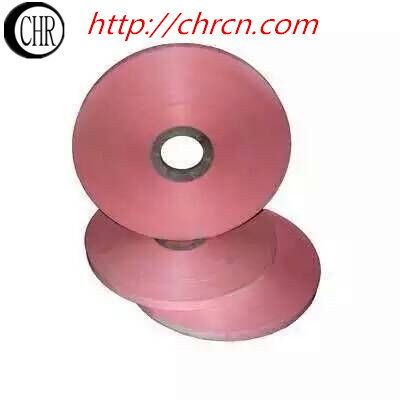

Product Description

Description:

6641 Class F DMD Flexible Laminate is a three-layer flexible composite material, produced by using F-class adhesive to adhere the two faces of high-melt-point polyester film with non-woven polyester fabric

Features:

Thermal Class:  F(155ºC)

Thickness: 0.13-0.45mm

Width:  1000 ± 20mm

High mechanical strength, excellent dielectrical property, and immersing the function.

Applications:

As slot, interphase and liner insulation for Y2 and other F-class electrical motors, transformers and other electric apparatus..

Technical Data:

Standard JB/T4060-1991

Type	Nominal Thickness	Tolerance	PET Film Thickness	Nominal Grammage	Tensile Strength		Elongation		BDV
					MD	TD	MD	TD	Room Temperature	155±2°C
					Not Bended	Bended	Bended	Not Bended	Room Temperature	155±2°C
	mm	mm	µm	g/m2	N/10mm	N/10mm	%	%	KV
DMD 1.5-2-1.5	0.12	±0.020	50	110±20	≥60	≥50	≥10	≥15	≥4	≥3
DMD 2-2-2	0.15	±0.020	50	150±22	≥80	≥70	≥10	≥15	≥7	≥6
DMD 2-3-2	0.18	±0.025	75	190±28	≥100	≥80	≥10	≥15	≥8	≥7
DMD 2-4-2	0.20	±0.030	100	210±32	≥120	≥95	≥10	≥15	≥9	≥8
DMD 2-5-2	0.23	±0.030	125	240±36	≥130	≥100	≥10	≥15	≥10	≥9
DMD 2-6-2	0.25	±0.030	150	260±39	≥150	≥120	≥10	≥15	≥11	≥10
DMD 2-7.5-2	0.30	±0.035	190	310±46	≥170	≥130	≥5	≥5	≥13	≥12
DMD 3-7-3	0.35	±0.040	175	390±58	≥200	≥160	≥5	≥5	≥15	≥14
DMD 3-10-3	0.40	±0.040	250	440±66	≥300	≥200	≥5	≥5	≥18	≥17
Temperature Index			°C	≥155
Storage Life	12 months,room temperature,dry and well-ventilated environment
Adhesive Property	Room Temperature		No delamination
Adhesive Property	180±2°C 10min		No delamination,blister,or adhersive flow
Wetted Adhesive Property			No delamination
Remark	This product is produced in accordance with Q/HJ-214-2009 and is tested in accordance with GB/T5591.2-2002

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
