Composite Fibre Glass Mat Battery Separator with Tissue

Name: Composite Fibre Glass Mat Battery Separator with Tissue
Brand: all-electronics-online.com
SKU: 763155495
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 1.1-1.12/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Box
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FX009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	AGM Glass Mat Battery Separator
Material:	Separator Paper with Glass Mat
Color:	White
Use:	in Batteries
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Flat Battery
Rechargeable:	Chargeable

Product Description

Product Specifications / Features

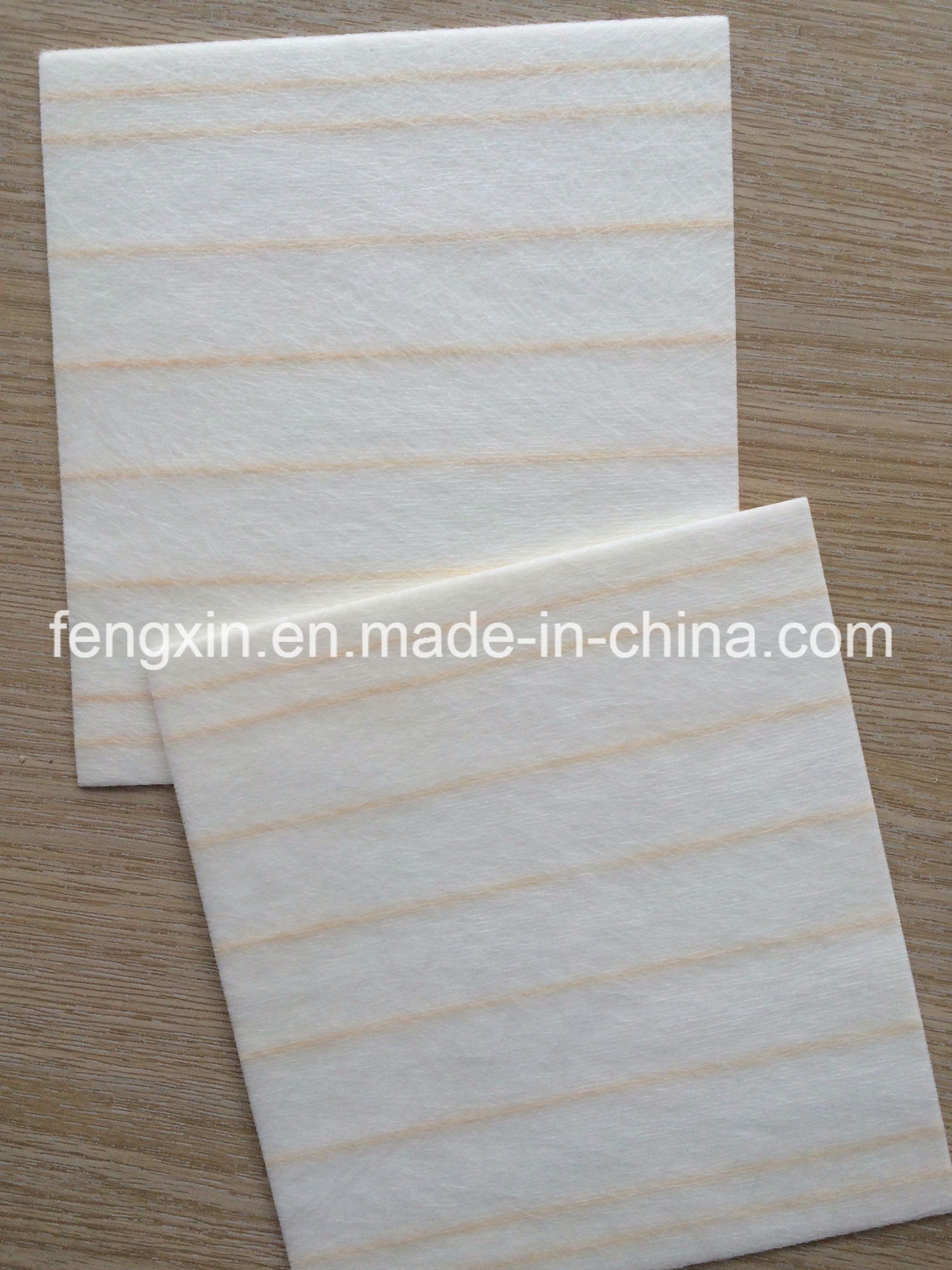

Composite Fibre Glass Mat Battery Separator with Tissue, AGM Battery separator/Fiberglass separator for lithium cells, are made from fiberglass and binder. These sheets have advantages of high liquid absorptivity, low specific, resistance, excellent chemical stability and high mechanical strength, etc. They can absorb all electrolyte uniformly onto themselves and stablize the discharge performance of cells:

Specification
Appearance neat, uniform and pinhole-free
Thickness (mm) 0.100+/-0.01; 0.180+/-0.02; 0.200+/-0.02
Type For button cell(LGM-K); for column cell(LGM-Z)
Tensile strength (N/15mm)
(0.10)>=5;(0.18,0.20)>=8
Porosity (%) >=70
Liquid absorptivity (%) >=500
Specific resistance(W-cm) <10
Special specifications are available upon request.

Application:
Used as separator sheets between anodes and cathodes in lithium-thionyl chloride (Li-SOCl2) cells or lithium-manganesia (Li-MnO2 ) cells.

Samples test be welcome!
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Small Order Acceptable
Safety/Quality Approvals
ISO2000 certification

Thickness	mm	±5%d
Electrical Resistance	Ω.dm2	≤0.00050d
Tensile Strength	kN/m	≤2.0mm ≥2.0mm

Basic Weight	g/m2.mm	20Kpa
Max Pore Diameter	µm	≤20µm

FX Group, as a high-tech enterprise which gathering the design creation, and production service in the fields of Fiberglass products like AGM Separator, Battery Separator, Composite Separator and the accessories of trucks like Roll Up Door, Aluminum Roller Shutter for Fire-fighting trucks, the ladders and some other accessories which was established in 2005 year and waslocated in Chuzhou city.

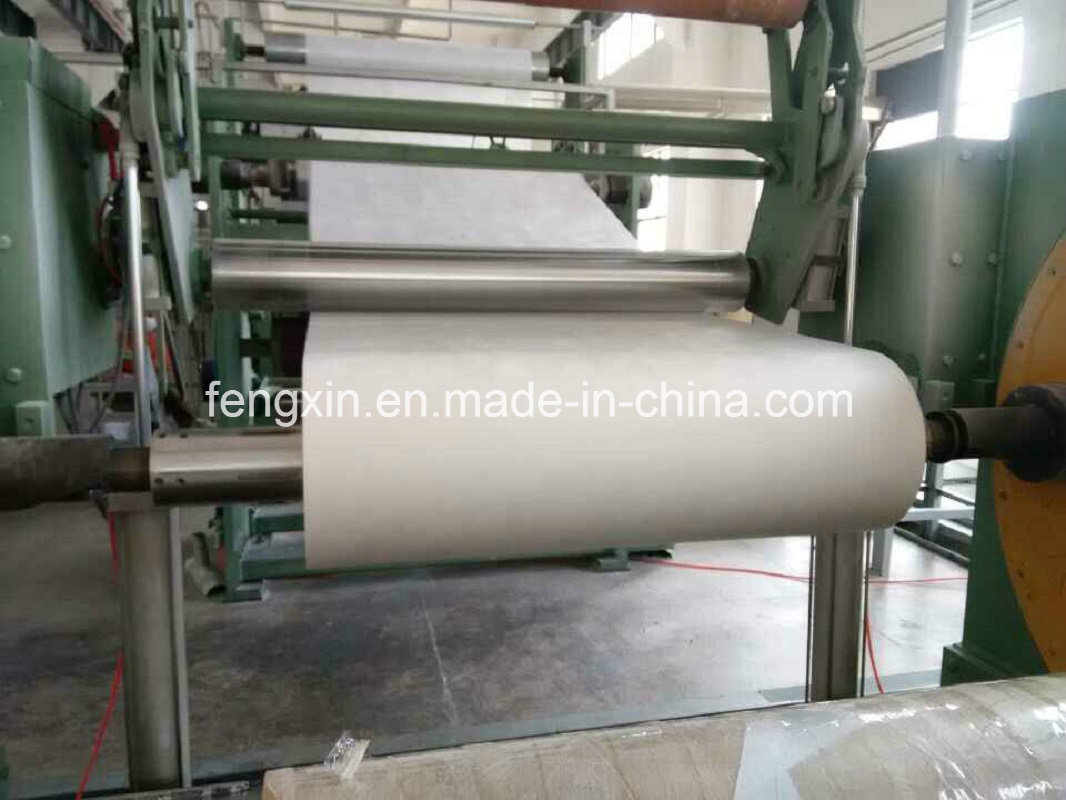

We had two plants with the total area of 40 thousand square meters, one plant was located in Chuzhou city and one plant was located in Changzhou city. The plant in Changzhou city major involved in the fiberglass products, the production capacity of our AGM battery separator which used in the VRLA battery arrive to 5000tons/year, we have total three production lines which imported from Japan, now our year exporting annual is about 5million USD per year, and the AGM battery separator was accepted and popular in India, Vietnam, Pakistan, Middle East and some other countries also. Our another plant which located in Chuzhou city major involved in the truck accessories, all the goods quality was making according to Europe standard, till now on we had been exported our truck roll up doors to Brazil, America, Iran, Dubai UAE, India and so on

FX has a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.

We inherit our persistent in service strategy of quality at the first priority and clients at the uppermost.

We will prvide more relaable products and offer the better, safety. And efficientcy services for you.

We are sincerely looking forward to cooperating and communicating with you.

Choose FX, Choose The Best!
