Composite Insulator and Polymer Insulator

Prod Model:	FXBW4-66/100(66KV)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standards: IEC:	Composite Insulator
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Brand:	Cie or OEM

Product Description

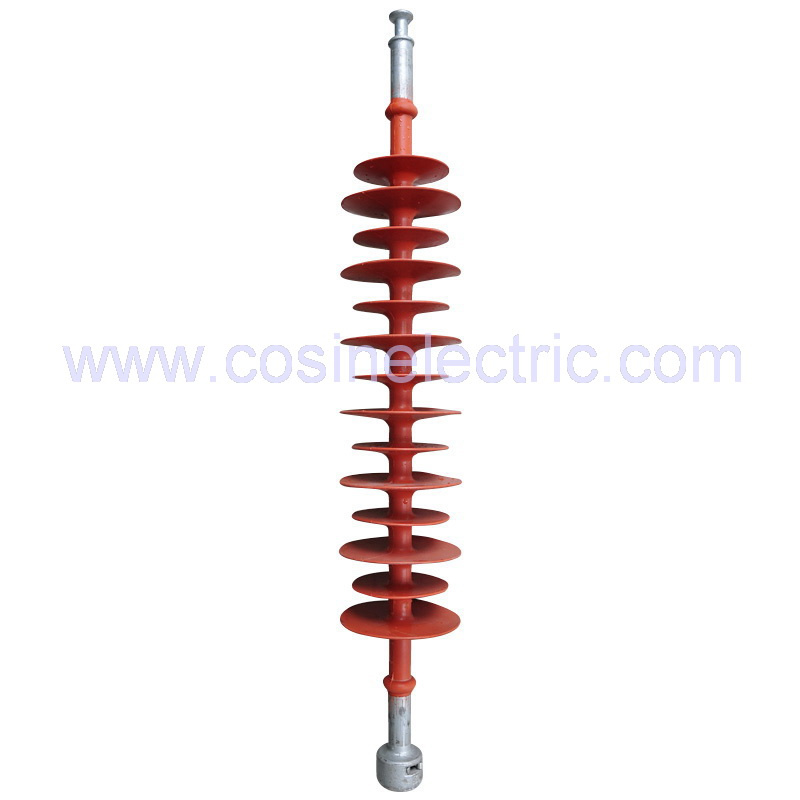

66KV Composite Insulator/Polymer Insulator

Condition of Use on Composite Insulator/Polymer insulator:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.

Characteristics of Composite Insulator/Polymer insulator:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.

Code No	Catalogue No	Rated Voltage (KV)	Specified Mechanical Load(KN)	Section Length (mm)	Min Arc Distance (mm)	Min creepage Distance (mm)	Lightning Impulse Withstand (KV)	Power Frequence Withstand(wet) (KV)
FXBW4-66/70	QCE-66/70BS	66	70	940	710	1950	410	185
FXBW4-66/100	QCE-66/100BS	66	100	940	740	1950	410	185
FXBW4-66/100	QCE-66/100BS	66	100	940	740	1950	410	185
