Composite Insulator Fitting-Ball&Socket 120kn-132kv/Stainless Steel

Name: Composite Insulator Fitting-Ball&Socket 120kn-132kv/Stainless Steel
Brand: all-electronics-online.com
SKU: 676519812
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 2/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	120kn
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
120kn:	132kv
Application:	High-temperature
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	A Type Insulator

Product Description

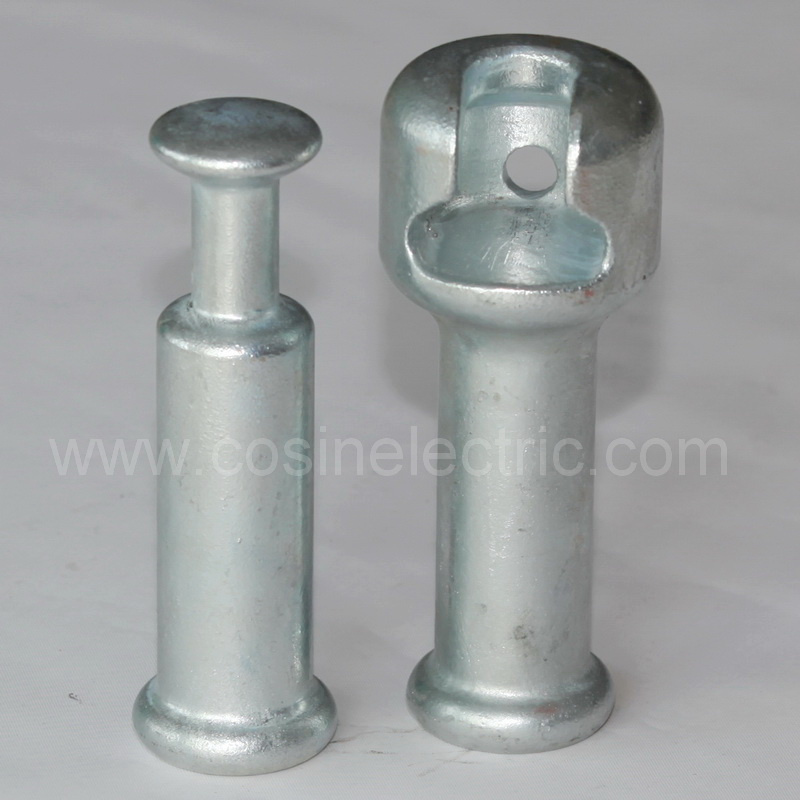

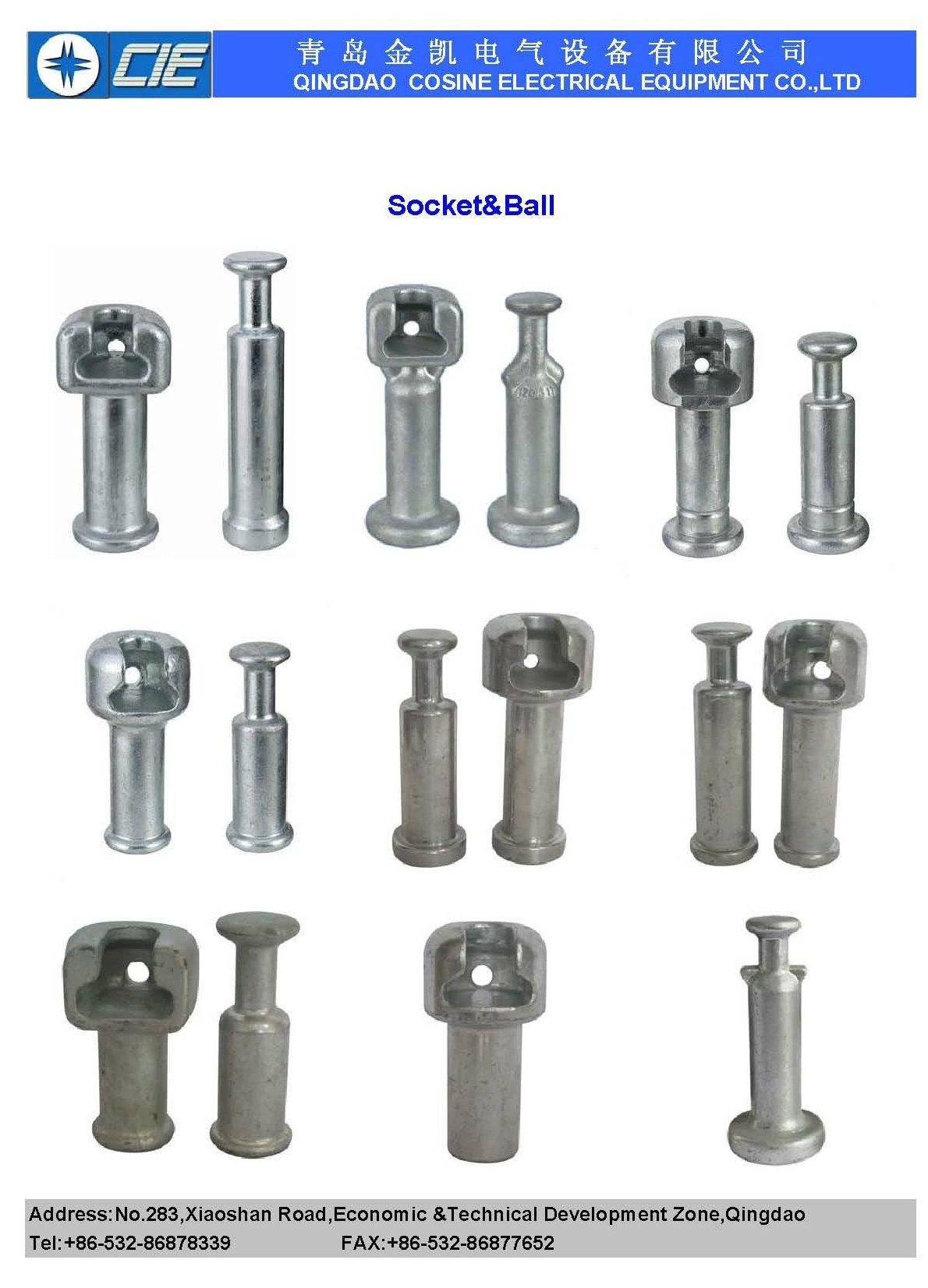

Socket and Ball is one set of our most popular fittings for long rod type of Composite insulator.Base on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile.

Name	Composite Insulator Fitting-Ball&Socket 120kv-132kv
Material	can be Forged-steel,Casting-steel,Ductile cast iron,etc
SML	300KN
Process	(1)Drawing (2)Mould making (3)Smelting (4)casting (5)Annealing (6)Hot-DIP galvanized (7)Machining (8)Inspecting
	Normally we offer them with W-clip or R-pin together
Rated voltage	120kv-132kv
Type	We Not only can produce according to clients' drawings or samples, also we can design as per clients' requirements

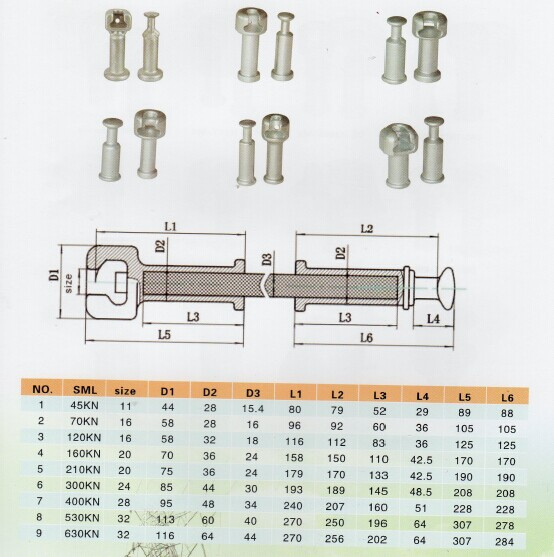

Full technical data for the socket and ball:

For more details about socket &ball,pls contact Qingdao Cosine Electrical Equipment Co.,Ltd freely.Will offer the most competitive price with good quality to you!

Company Profile:
QINGDAO COSINE Electrical Equipment specializes in supplying various kinds of insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.

We pay more attention to the product quality all the time.All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Based on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001:2008 certificate and won a good reputation among clients at home and aborad.

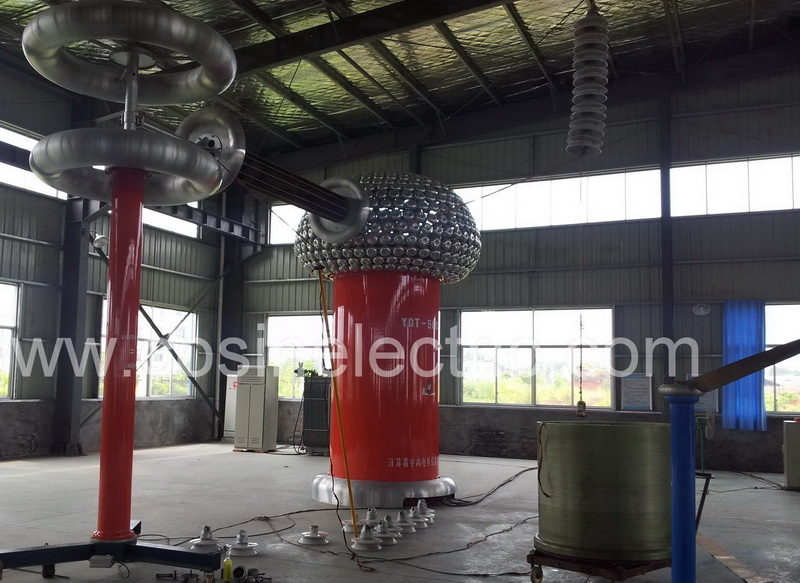

Workshop:

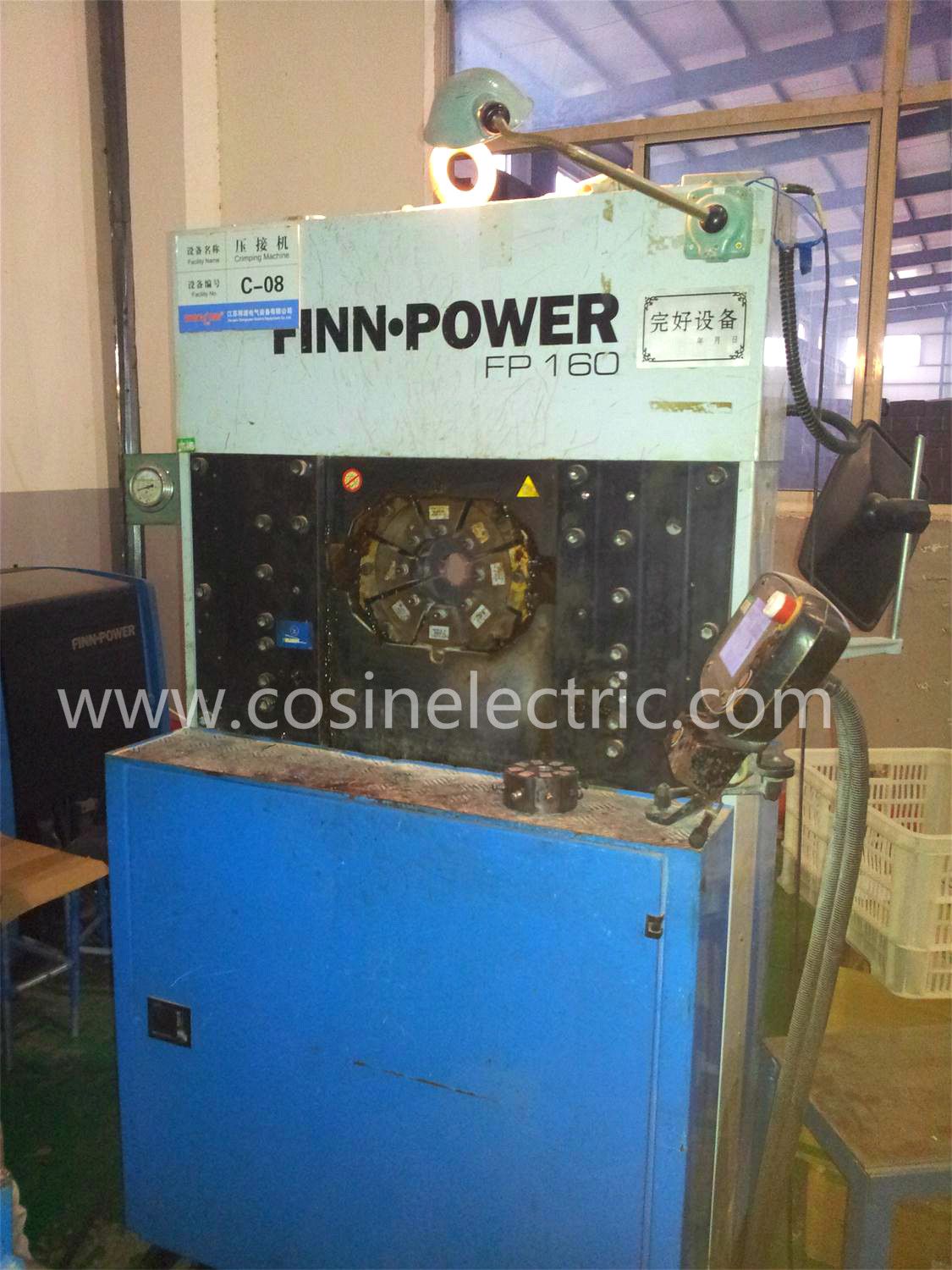

Equipment:

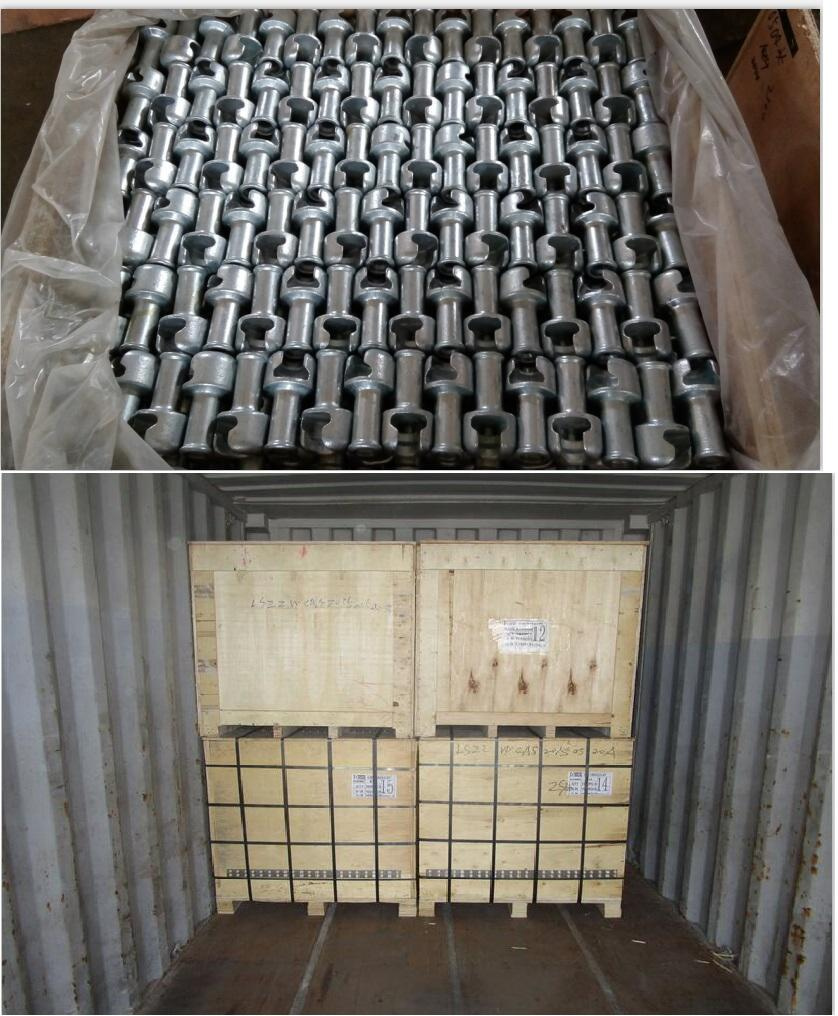

Package:

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.

Excellent service attitude, fast reaction speed, on-time delivery, consciousness of responsibility and flexibility are what we are practicing from the very beginning.The competitive price,the good quality,the punctual delivery.All of these are offered by us.Hope you will interest in our products and Warmly welcome to cooperate with you to make mutual benefits.
Looking forward to your inquiry!

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
