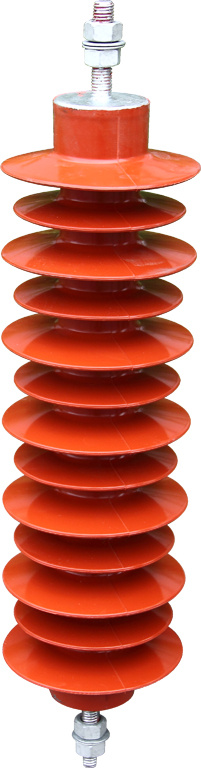

Composite Insulator for Electric-Railway

Name: Composite Insulator for Electric-Railway
Brand: all-electronics-online.com
SKU: 699423515
Availability: InStock
Rating: 5 (124 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQX2-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage

Product Description

This product is suitable for electric-railway in complex operation conditions, and can effectively prevent flash accidents and decrease the times of clear and mainerenance. It can't be replaced by porcelain glass type because of the features of small volume.

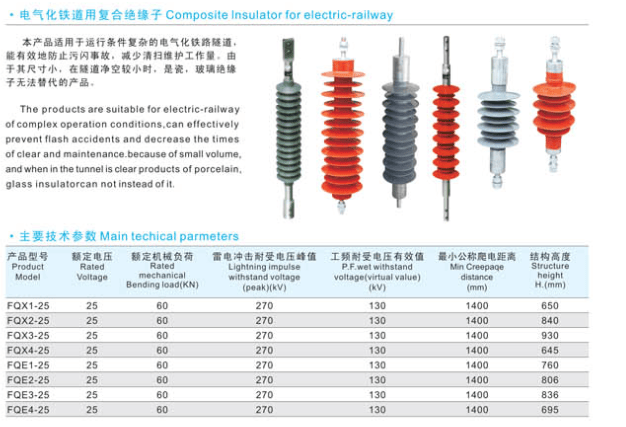

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H. (mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P. F Wet Withstand Voltage(virtual value)(KV)
FQX1-25	25	60	650	1400	270	130
FQX2-25	25	60	840	1400	270	130
FQX3-25	25	60	930	1400	270	130
FQX4-25	25	60	645	1400	270	130
FQE1-25	25	60	760	1400	270	130
PQE2-25	25	60	806	1400	270	130
FQE3-25	25	60	836	1400	270	130
FQE4-25	25	60	695	1400	270	130

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
