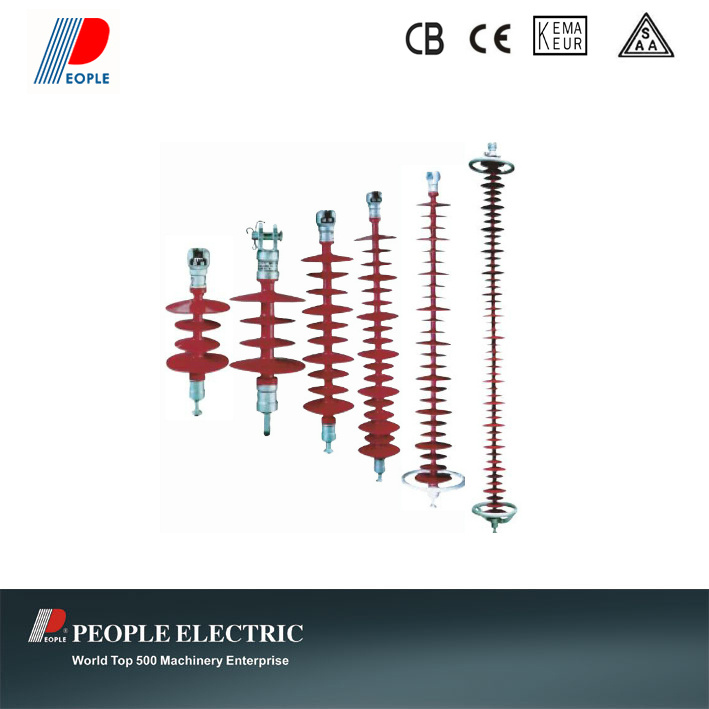

Composite Insulator for Powerlines
| Price: |
US $ 9.26/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FXBW/ FXBW4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Performance: |
Strong Mechanical Intensity |
| Good Resistance To Nastiness: |
Strong Aunt-Defilement Capacity |
| Small Volume: |
Light Weight, |
| Withstand Creepage Tracing Of Meaterial: |
Tma4.5 Degree |
| Application: |
High-voltage |
| Material: |
Composite Polymer |
| Structure: |
Pin Insulator |
| Brand: |
People |
Product Description
1) COMPOSITE INSULATOR SERIES
2) PIN TYPE INSULATOR
3) SPOOL INSULATORS(ANSI)
4) SUSPENSION TYPE INSULATORS(ANSI)
| Product designation | Product
type | Rated voltage kV | Specified mechanical load k N | Joint structure
mark | Section
Length
H(mm) | Min.
arc ing
distancee L.mm | Min.
Nominal creepage
distancee L.mm | Lightningimpulse withstand voltage (peak value) should exceed kV | Power frequency
Wet withstand
Voltage(1 minute)
Not less than
kV | Product
Weight
Kg |
| Bar type hang composite insulator | FXBW4-10/70 | 10 | 70 | 16 | 380 15 | 200 | 400 | 165 | 50 | 2.2 |
| FXBW4-10/100 | 10 | 100 | 16 | 380 15 | 200 | 400 | 165 | 50 | 2.2 |
| FXBW4-10/70C | 10 | 70 | 16 | 380 15 | 200 | 400 | 165 | 50 | 2.2 |
| FXBW4-10/100C | 10 | 100 | 16 | 380 15 | 200 | 400 | 165 | 50 | 2.2 |
| FXBW4-35/70 | 35 | 70 | 16 | 650 15 | 450 | 10156 | 230 | 95 | 3.4 |
| FXBW4-35/100 | 35 | 100 | 16 | 650 15 | 450 | 1015 | 230 | 95 | 3.4 |
| FXBW4-66/70 | 66 | 70 | 16 | 940 15 | 700 | 1900 | 410 | 185 | 4.7 |
| FXBW4-66/100 | 66 | 100 | 16 | 940 15 | 700 | 1900 | 410 | 185 | 4.7 |
| FXBW4-110/70 | 110 | 70 | 16 | 1240 15 | 1000 | 3150 | 550 | 230 | 6.1 |
| FXBW4-110/100 | 110 | 100 | 16 | 1240 15 | 1000 | 3150 | 550 | 230 | 6.1 |
| FXBW4-220/100 | 220 | 100 | 16 | 2240 30 | 1900 | 6300 | 1000 | 395 | 8.8 |
| FXBW4-220/160 | 220 | 160 | 20 | 2240 30 | 1900 | 6300 | 1000 | 385 | 10.8 |
2) PIN TYPE INSULATOR
| Cat.No | A1005 | A1006 | A1007 |
| Fig | 1 | 2 | 3 |
| Class BS | Pw-11-Y | Pw-22-Y | Pw-33-Y |
| Main Dimensions (mm) | H | 185 | 255 | 320 |
| h | 52.63 | 52.63 | 52.63 |
| D | 170 | 205 | 240 |
| d | 76 | 76 | 76 |
| d1 | 27.78 | 27.78 | 27.78 |
| R1 | 16 | 16 | 16 |
| R2 | 16 | 16 | 16 |
| Nominal Voltage(kV) | 15 | 22 | 33 |
| Creepage Distance(mm) | 432 | 673 | 851 |
| Power-frequency puncture voltage(kV) | 150 | 200 | 210 |
| Minimum Flashover Voltage | 50% Impulse positive | 150 | 190 | 210 |
| Power-frequency | Dry(kV) | 100 | 125 | 140 |
| Wet(kV) | 65 | 95 | 110 |
| Withstand Voltage | One minute Power-frequency | Dry(kV) | 90 | 110 | 125 |
| Wet(kV) | 60 | 90 | 100 |
| Impulse(kV) | 140 | 180 | 200 |
| Radio-Influence- Voltage Data | Test Voltage to Ground(kV) | 22 | 30 | 44 |
| Maximum RIV at 1000kHz(uV) | 12000 | 16000 | 25000 |
| Cantilever Failing Load(kN) | 11 | 11 | 11 |
| Weight(kg) | 5 | 10 | 13 |
3) SPOOL INSULATORS(ANSI)
| Cat.No | A1053 | A1054 | A1055 | A1056 | A1057 |
| Fig | 2 | 1 | 2 | 2 | 3 |
| Class ANSI | 53-1 | 53-2 | 53-3 | 53-4 | 53-5 |
| Main Dimensions (mm) | H | 54 | 76 | 81 | 76 | 105 |
| h | 27 | 38 | 40.5 | 38 | 52.5 |
| D | 57 | 79 | 76 | 105 | 102 |
| d | 45 | 45 | 45 | 73 | 73 |
| d1 | 18 | 18 | 18 | 18 | 18 |
| d2 | 22 | 24 | 24 | 24 | 24 |
| R | 11 | 18 | 11 | 16 | 11 |
| Mechanical failing load(kV) | 907 | 1360 | 1814 | 2041 | 2722 |
| Minimum Flashover Voltage | Power- requency | Dry(kV) | 20 | 25 | 25 | 25 | 25 |
| Wet(kV) | Upright | 8 | 12 | 12 | 12 | 18 |
| Level | 10 | 15 | 15 | 15 | 25 |
| Weight(kg) | 0.22 | 0.55 | 0.60 | 1.15 | 1.20 |
4) SUSPENSION TYPE INSULATORS(ANSI)
| Cat.No | A1058 | A1059 | A1060 | A1061 | A1062 | A1063 | A1064 | A1065 |
| Fig | 1 | 2 | 3 | 4 | 3 | 4 | 5 | 4 |
| Class ANSI | 52-1 | 52-2 | 52-3 | 52-4 | 52-5 | 52-6 | 52-9 | 52-10 |
| MainDimensions mm) | D | 165 | 190.5 | 254 | 254 | 254 | 254 | 114 | 279.4 |
| H | 139.7 | 146 | 146 | 146 | 146 | 146 | 160 | 165 |
| Greepage disance(mm) | 178 | 210 | 292 | 292 | 279 | 279 | 171 | 279 |
| Power-frequency puncture voltage(kV) | 80 | 90 | 110 | 110 | 110 | 110 | 80 | 110 |
| Average Flashover Voltage | Power- requency | Dry(kV) | 60 | 65 | 80 | 80 | 80 | 80 | 60 | 80 |
| Wet(kV) | 30 | 35 | 50 | 50 | 50 | 50 | 30 | 50 |
| Critical-impulse 15×40s wave | Positive(kV) | 100 | 115 | 125 | 125 | 125 | 125 | 90 | 125 |
| Negative(kV) | 100 | 115 | 130 | 130 | 130 | 130 | 100 | 130 |
| Radio-influence voltage data | Test voltage to ground(kV) | 7.5 | 7.5 | 10 | 10 | 10 | 10 | 7.5 | 10 |
| Maximum RIV at 1000kHz(V) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Electromechanical faiting load(kV) | 44 | 67 | 67 | 67 | 111 | 111 | 44 | 160 |
| Mechanical impact strength(n.m) | 5 | 5.5 | 5.5 | 6 | 7 | 7 | 5 | 10 |
| Time load test value(kn) | 27 | 44 | 44 | 44 | 67 | 67 | 27 | 107 |
| | | | | | | | | | | | |
People Ele.Applianceas Group established in 1996, is one of leading manufactures of electric appliance in China.People Group specialized in manufacturing low, medium and high voltage electric apparatus, complete equipment, electrcal wire & cable, electrical transmission & transformation equipment, as well as explosion proof eletric apparatus, meters and instrument, power automation system and so on.
From People Group's brith till present, self-accumulation of capital and resource integration are their secrets to success.By means of restructuring, merging, and building partnerships People Group has created a business model of multi-industries and global diversification, such as urban construction, hydropower stations, energy resources, modern logistics, electronic information systems, foreign trading and so on.People Group possess 4 modernized production bases that total area is over 50 branches and offices overseas.
People Group has been approved by ISO9001, ISO14001 and OHSAS18001 systems.The products are employed in key national projects, such as Pudong airport, the Three Gorges Projects, Beijing Metro, Olympic Palaestra etc.People Group is rated as one of Top 500 Enterprises in China and World Machinery 500."People" is awarded as China Well-known Trademark by China Industrial and Commercial Administration General Department.People products won China TOP Brand and National Inspection Exemption Certificate.
Of era of economic globalization, the international electric appliance industry is growing dramatically, with creates numerous opportunities and challenges.To compete with others for global marketplace, People Ele.Appliance Group Zhejiang Import and Export Corp, an exclusively-invested enterprise, is given birth by People Group.It is registered with National Industrial and Commercial Department, permission granted to incorporate and enjoy independent import and export trading.Improt and Export Corp is a member of China Council for the Promotion of International Trade(CCPIT) and China Chamber of Commerce for Import and Export of Machinery and Electronic Products.As People Group's window onto the rest of world, Import and Export Corp with conception of quality assurance standards and sincere service has won good reputation from our loyal customers all around the world.
The size of staff in People Electrical Appliance Group has increased by 45 folds for over ten years, the marketing network has expanded by 65 times, and the production value is now 75 times as that 0 the very beginning.Though multinationals and domestic enterprises are challenging the group in international market as well as in China, Mr.Zheng Yuanbao, leader of People Electrical Appliance Group, is exerting all his efforts.
