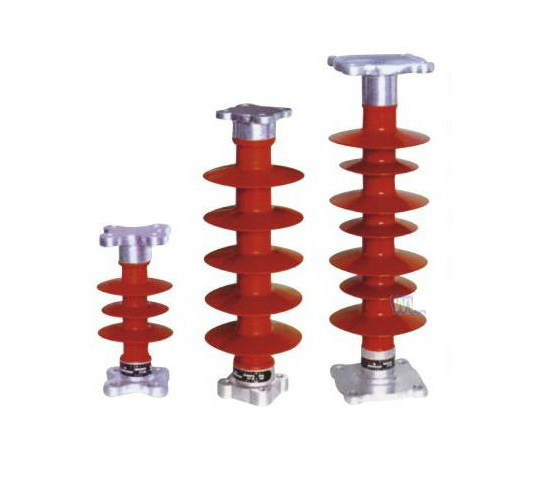

Composite Insulator&Post Insulator&Polymer Insulator

Name: Composite Insulator&Post Insulator&Polymer Insulator
Brand: all-electronics-online.com
SKU: 681255142
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	10KV-66KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	10kv-66kv
Application:	High-voltage
Material:	Composite Polymer
Structure:	Post Insulator

Product Description

This product Composite insulator/Polymer insulator/Post insulator is suitable for Power facilities.
It is called composite insulators/polymer insulator/post insulator.
Composite insulator/Polymer insulator/Post Insulator have exported to Vietnam, Morocco, Mexico, USA and etc.
Please kindly inform me if you have any interest. We will make better price and offer best service to you.

Type	Specified Voltage (kV)	Specified machincal load		Section Height (mm)	Min Arc distance (mm)	Min creepage distance (mm)	Lightning Impulse Withstand (peak value) (KV)	Wet Power Frequence Withstand (effective value) (KV) )	Weight ( kg )
Type	Specified Voltage (kV)	Bending load (kN)	Torsion Laod ( kN.m )	Section Height (mm)	Min Arc distance (mm)	Min creepage distance (mm)	Lightning Impulse Withstand (peak value) (KV)	Wet Power Frequence Withstand (effective value) (KV) )	Weight ( kg )
FZSW-10/4	10	4	0.5	210	130	350	90	40	1.5
FZSW-35/5	35	5	1	400	300	1100	230	95	4
FZSW-35/5	35	5	1	450	350	950	230	95	4.5
FZS-35/5	35	5	1	450	350	950	230	95	4
FZSW-35/6	35	6	1.3	550	398	1230	230	95	5.5
FZSW-66/10	66	10	2.5	780	640	2100	410	185	19

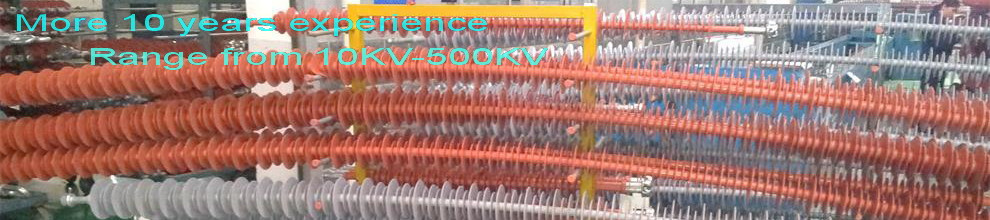

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

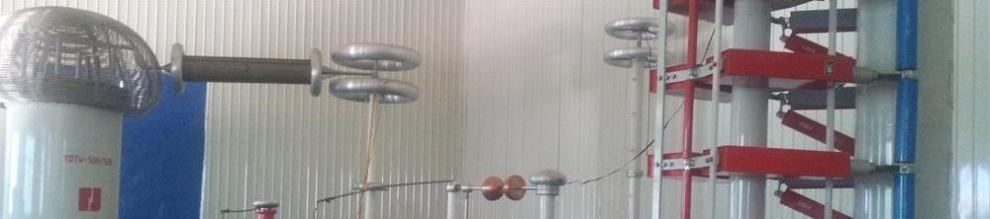

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
