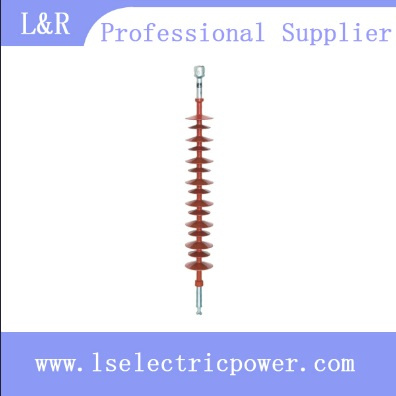

Composite Insulator Rod Suspension Composite Insulator

Name: Composite Insulator Rod Suspension Composite Insulator
Brand: all-electronics-online.com
SKU: 784150315
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW4-10/70 and so on
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	L&R or as Per Clients' Requirements
Size:	Can Be Ordered
OEM&ODM:	Accept
Application:	Low-voltage
Structure:	Suspension Insulator
Material:	Porcelain & Rubber & Glass...

Product Description

Description

Application:High voltage
Material:Composite polymer
Structure:Suspension Insulator
Usage:High Voltage Power Transmission
Packing:Carton or Plywood Case

Condition of Use:
1.Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius:
2.Altitude above sea level not exceeding 2,000m;
3.Suitable for the heavy polluted areas.

FXBW-110/120	110	120	16W	1240±15	1000	3150	550	230
FXBW4-110/120	110	120	16W	1440±15	1200	3600	550	230
FXBW-110/160	110	160	20R	1300±15	1050	3600	550	230
FXBW4-110/160	110	160	20R	1440±15	1140	4200	550	230
FXBW-220/70	220	70	16W	2150±30	1900	6300	1000	395
FXBW4-220/70	220	70	16W	2240±30	2000	6600	1000	395
FXBW-220/100	220	100	16W	2150±35	1900	6300	1000	395
FXBW4-220/100	220	100	16W	2240±30	2000	6600	1000	395
FXBW5-220/100	220	100	16W	2470±30	2150	6900	1000	395
FXBW6-220/100	220	100	16W	2240±30	1900	6770	1000	395

FXBW4-220/120	220	120	16W	2240±30	2000	6600	1000	395
FXBW-220/160	220	160	20R	2240±30	1900	6300	1000	395
FXBW4-220/160	220	160	20R	2470±30	2150	6900	1000	395
FXBW-220/180	220	180	20R	2240±30	1900	6300	1000	395
FXBW4-220/180	220	180	20R	2470±30	2150	6900	1000	395
FXBW-220/210	220	210	20R	2240±30	1900	6300	1000	395
FXBW4-220/210	220	210	20R	2470±30	2150	6900	1000	395
FXBW-330/100	330	100	16W	2930±40	2600	9075	1425	570
FXBW4-330/100	330	100	16W	2990±40	2600	9500	1425	570
FXBW5-330/100	330	100	16W	2930±40	2600	9075	1425	570

FXBW4-330/120	330	120	16W	2990±40	2600	9500	1425	570
FXBW5-330/120	330	120	20R	2930±40	2600	9075	1425	570
FXBW4-330/160	330	160	20R	2990±40	2600	9500	1425	570
FXBW4-330/180	330	180	20R	2990±40	2600	9500	1425	570
FXBW4-330/210	330	210	20R	2990±40	2600	9500	1425	570
FXBW4-500/100	500	100	16	4450±60	4000	13750	2050	925
FXBW4-500/120	500	120	16	4450±60	4000	13750	2050	925
FXBW4-500/160	500	160	20	450±60	4000	13750	2050	925
FXBW4-500/180	500	180	20	4450±60	4000	13750	2050	925
FXBW4-500/210	500	210	20	4450±60	4000	13750	2050	925

FXBW4-500/240	500	240	24	4450±60	4000	13750	2050	925
FXBW4-500/300	500	300	24	4450±60	4000	13750	2050	925
FXBW4-500/400	500	400	28	4450±60	4000	13750	2050	925

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
