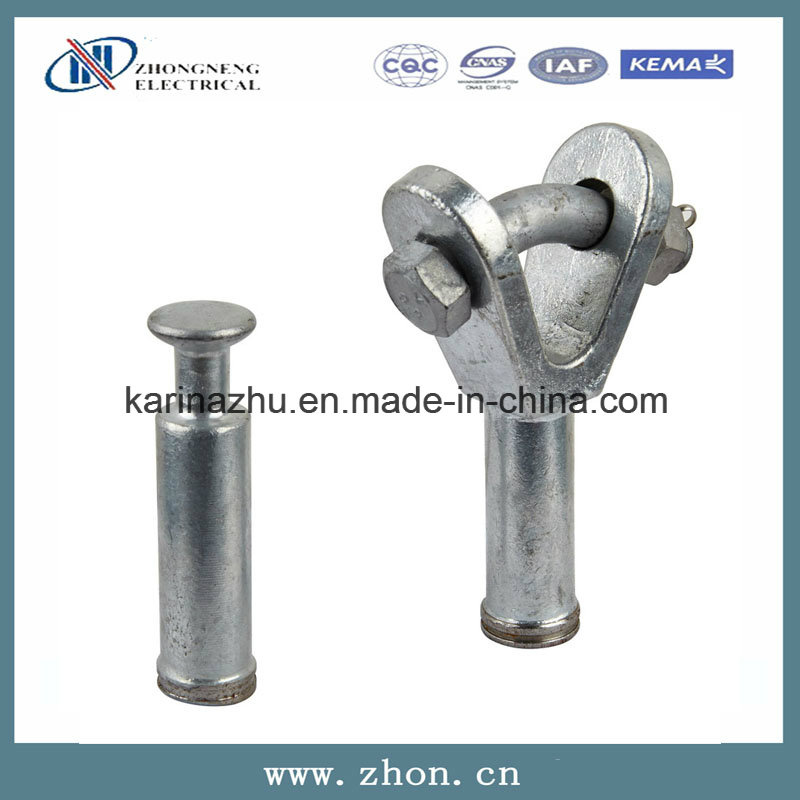

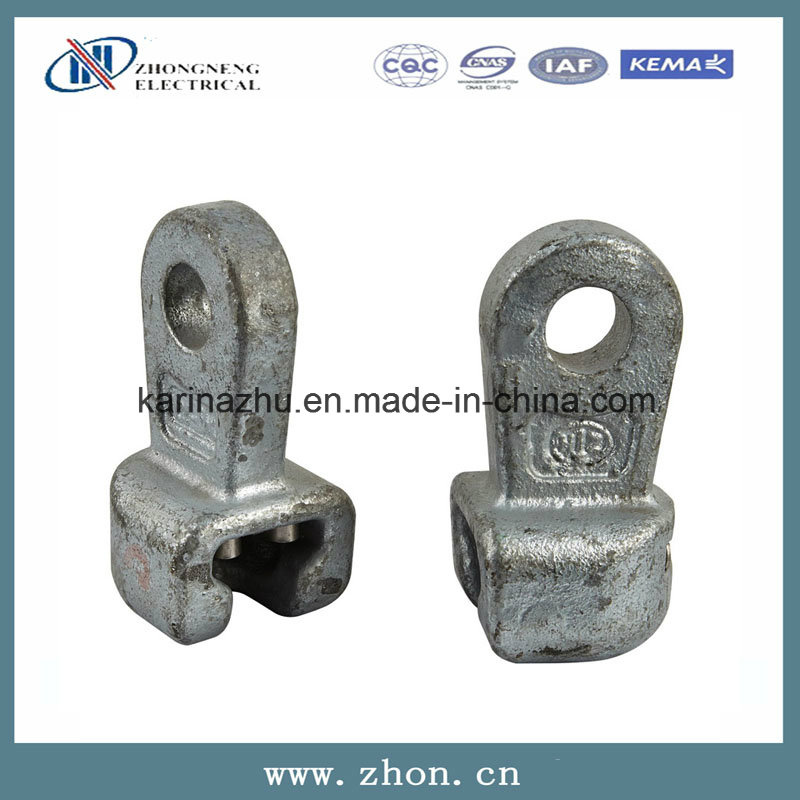

Composite Insulators End Fittings Clevis Eye Y-Clevis

Composite Insulators End Fittings Clevis Eye Y-Clevis
Price: US $ 2.99-4.99/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: CLEVIS EYE Y-CLEVIS 70/120/160/210KN
Sml: 70/120/160/210kn
Application: High-voltage
Material: Composite Polymer
Structure: Suspension Insulator
Type: A Type Insulator
Size Of Bearing Capacity: 70/120/160/210kn
Color: as Per The Customer's Requirement
Brand: Zhon or OEM

Product Description

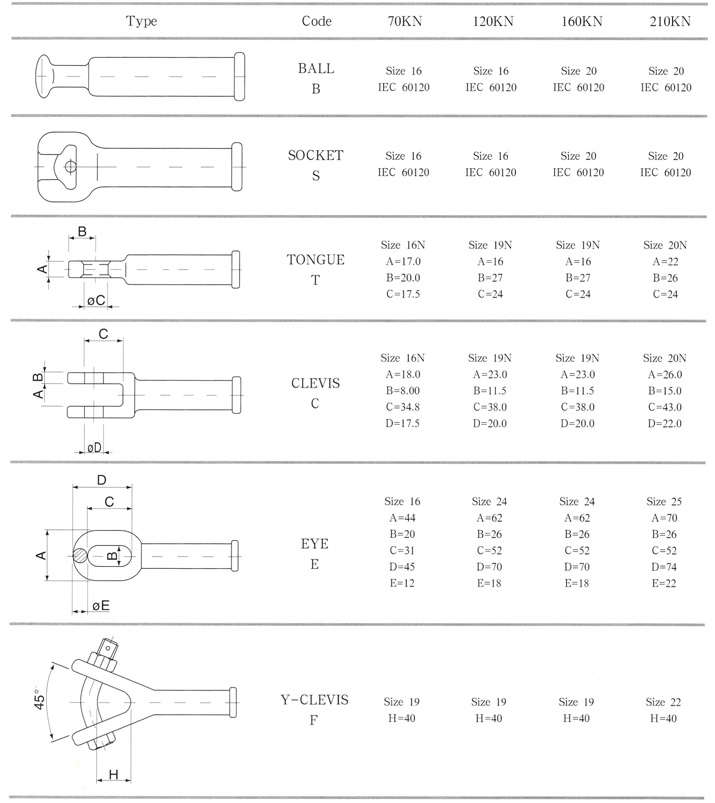

Metal fittings for Composite Insulator



1. Material: Casting steel
2. Specified mechanical Load: 70/120/160/210KN
3. Rated voltage: 35KV
4. Finish: Hot-DIP-Galvanization, Zinc coating average thickness is 70--100 μ M or as Client 's requirements
5. Normally we offer them with cotter-pin togerther.
6. We Not only can produce according to clients' drawings or samples, also we can design as per clients' requirements

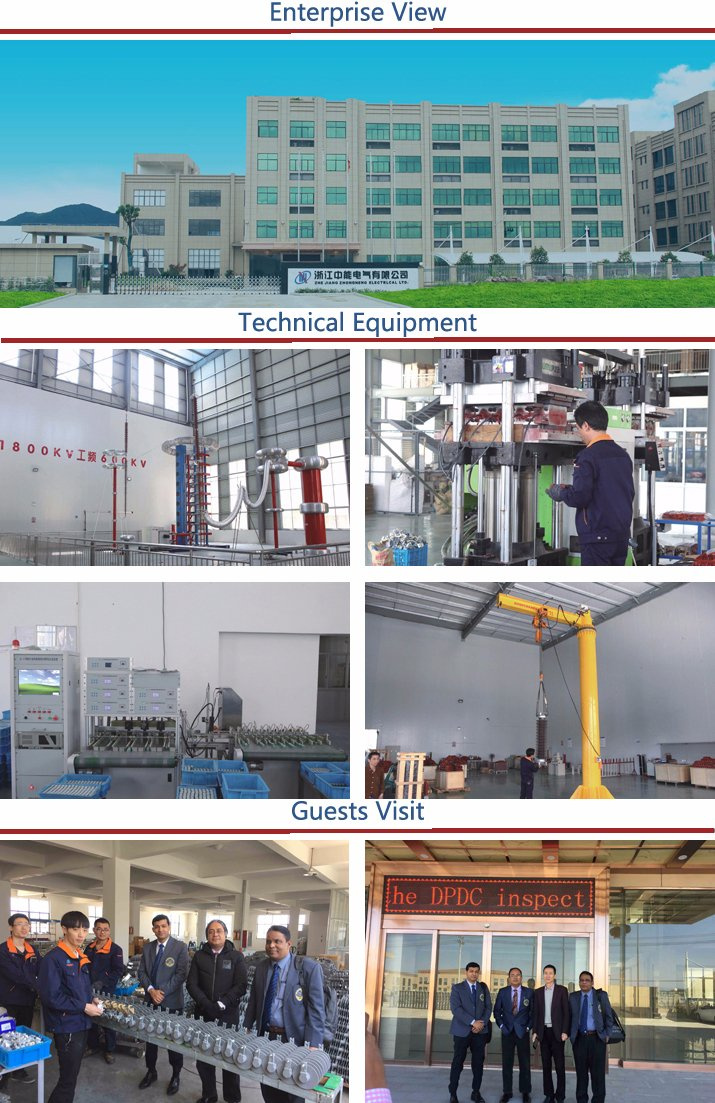

Zhejiang Zhongneng Electrical Co., Ltd., located in Zhejiang Province, is the key medium/high voltage electric productive enterprise of FATO Mechanical and Electrical Equipment Group Co., Ltd.And a provincial advanced enterprise, mainly producing 220kV and below high voltage electro ceramic products, especially lightning arrester series, composite insulator series and drop-out fuse cutout series, and low-voltage surge protective device series.Our products have complete testing devices and strict quality and production management systems.Our products are known for the characteristics of solid power, advanced science and technology, considering service and solid quality.Moreover, for some core products, we have the independent intellectual property right.

Our corporation has the independent corporate capacity.Our progenitor is the division store of Suzhou Surge Arrester Co., Ltd.Which is founded in 1989, and after joined into FATO Mechanical and Electrical Equipment Group Co., Ltd.In 2003, we changed the name to Zhejiang Zhongneng Electrical Co., Ltd.

Zhejiang Zhongneng Electrical Co., Ltd.Is the professional over-voltage protectors manufacturing enterprise, and a member unit of China Electric Industry Association.We passed the certification of ISO9001 quality system and confirmed to standards such as IEC 60099-4, 61643-1, 291, 282 issued by international electric and industrial committee.Moreover, we have a long-term technical cooperation with many technical and research institutes and core enterprises in this industry line, and the qualities of our products can stand long-time decimation.

Following the technical and economical developing step, and the globalization process, in the merger process of global advantage resources, we constantly expect the cooperation coming from global partner.We are looking forward to cooperating with you!
