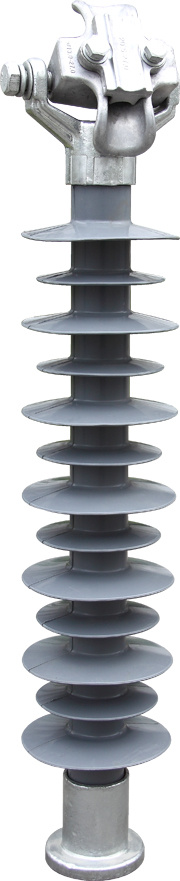

Composite Line Post Insulator (RL-FC)

Name: Composite Line Post Insulator (RL-FC)
Brand: all-electronics-online.com
SKU: 699419175
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RL-FC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Voltage:	>100kv
Application:	High-voltage
Material:	Composite Polymer
Structure:	Post Insulator
Color:	Grey
Brand:	Ruily

Product Description

Company Introduction:

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Product Introduction:
The product is suitable for use in power facilicties. It have features of good hydrophobicity, anti-aging, tracking and erosion resistance and electrical erosion resistance. Besides it have very high tensile strength, bending strength, shock resistance and anti-break. with the light weight it is easy to instal. The installation size of top and base are the same with porcelainp, so they can be used interchangeably.

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H. (mm)	Insulating Distance Li. (mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P. F Wet Withstand Voltage(virtual value)(KV)
FZSW-10/4	10	4	215	125	290	75	42
FZSW-24/8	24	8	300	220	750	150	65
FZSW-35/6	35	6	450	360	946	185	95
FZSW-66/6	66	6	760	630	1886	410	185
FZSW-66/10	66	10	760	630	2010	410	185
FZSW-110/10	110	10	1220	1080	3530	500	230
FZSW-220/8	220	8	2440	2200	7060	1000	395

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
