Composite Pin Insulators

Name: Composite Pin Insulators
Brand: all-electronics-online.com
SKU: 627025535
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	11KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Polymeric Type:	Outdoor
Application:	High-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Type:	B Type Insulator
Color:	Gray
Brand:	Haivol

Product Description

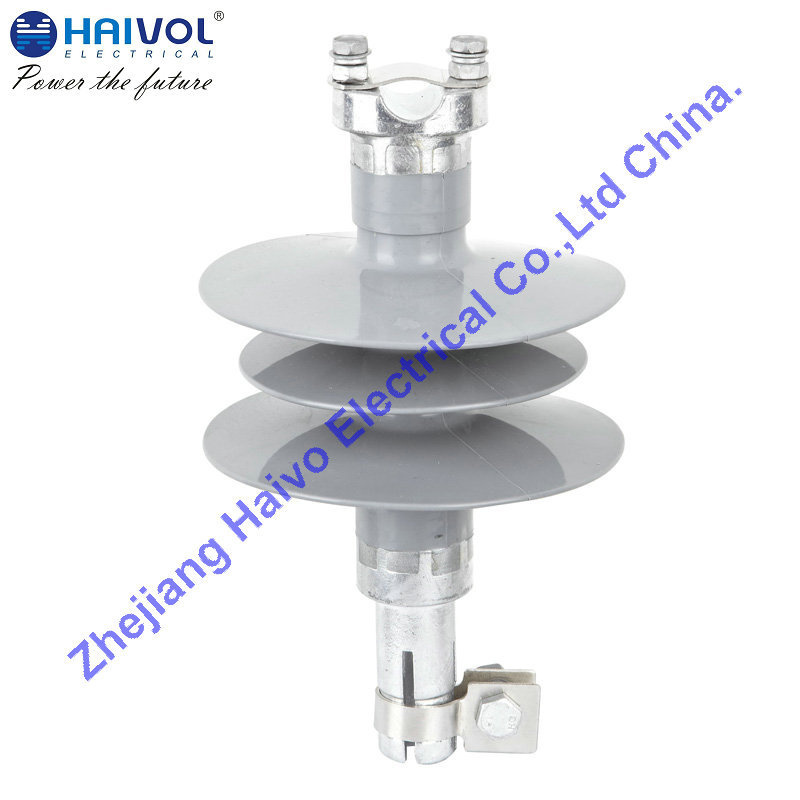

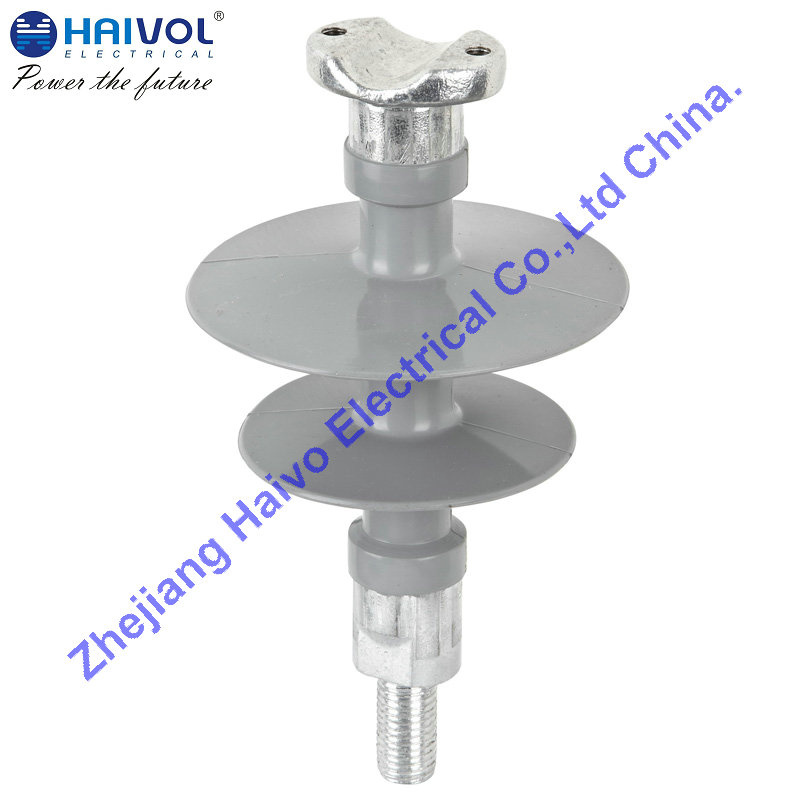

Composite Pin Insulators are mainly used in high voltage overhead power transmission &distribution lines for insulation and mechanical connection.

Normal Operation Conditions:
1 Ambient temperature: -50C-+50C
2 Altitude: not more than 3000m
3 Frequency: not more than 100Hz

Technical Specification:

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FZSW-12/4	12	4	215	290	100/90	75	42
FZSW-24/8	24	8	400	750	142	150	65
FZSW-36/6	36	6	450	946	148/118	185	95
FZSW-36/6	36	6	760	1886	160/130	410	185
FZSW-66/6	66	6	760	2010	220/190	410	185
FZSW-110/10	110	10	1220	3530	220/190	500	230
FZSW-220/10	220	10	2440	7060	220/190	1000	395

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
