| Prod Model: |
TR-317 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Test: |
Type Test Report |
| Application: |
High-temperature |
| Material: |
Composite Polymer |
| Structure: |
Post Insulator |
| Type: |
B Type Insulator |
Product Description

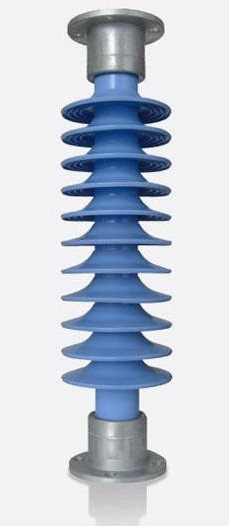

Composite silica support insulator
Size:
voltage level:1 - 550 kV
maximum length :2300 mm
maximum outside diameter 350mm
flexible creepage distance : 45 mm / kV
cone-shaped (mainly used to meet the IEC standard)
cylindrical (mainly for the ANSI standard)
The production process modular assembly system HTV silicone rubber, the second generation of ECR glass fiber reinforced plastic rod, the brittle fracture resistance stable silicone rubber seal to optimize the configuration file of the shed all available pollution class
International standard
IEC 62231, ANSI C29.19, ANSI C29.9
experience
8 years of production experience
Application substation support insulator, switch capacitor insulators, insulators of the substation compensation system.
composite insulator according to customer standards with cylindrical and the maximum size of length 6000mm. These types of products must be passed high-intensity physical tests, such as internal pressure test and cantilever gravity experiments. Even if in the harsh climatic conditions with long duration lightning flash, and especially the clean-up of the switch, LSR composite casing of the high quality standards to better demonstrate its excellent performance of this composite casing in the actual production and use of because of its precision and lightweight design, making quality and reliable switch plays an important role.
Size:
voltage level:1 - 800 kV ,
a separate design and multi-section design, the maximum connection length of 6000 mm, the maximum outer diameter :580 mm
creepage distance :31 mm / kV
production methods:
injection molding technology in the LSR-Silastictube.
Made of fiberglass filament winding process a combination of bending and compressive stress
standards: IEC 61462 (2007)
has 8 years of production experience.
Application:
SF6 switchgear, circuit breakers (fixed and movable design) current and voltage transformers, surge arresters, casing, cable terminations.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
