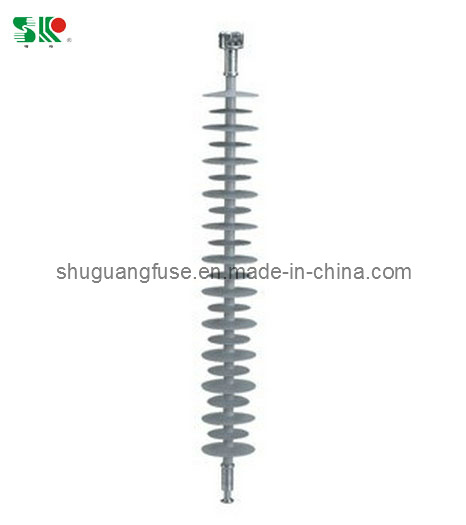

Composite Suspension Tension Insulator 220kv 120kn

Name: Composite Suspension Tension Insulator 220kv 120kn
Brand: all-electronics-online.com
SKU: 731182255
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 75-90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-220/120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating Voltage:	220kv
Specialized Mechanical Tension Load:	120kn
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	A Type Insulator
Connection Method:	Other
Size Of Bearing Capacity:	120kn
Certification:	ANSI
Color:	Grey

Product Description

Model: FXBW-220/120

Manufacture and test Standard: IEC 61109, ANSI

Materials:

1) Silicon Rubber for sheds/ housing

2) Glass-fiber reinforced epoxy resin rod (ECR type) for core

3) Hop DIP galvanized cast steel for metal fittings

4)Fitting types: BALL, SOCKET

Key Specifications/Special Features:

*Rating voltage: 220kV

*Specialized mechanical tension load: 70KN to 210KN

*Structure height: 2240mm

*Insulating distance: 1900mm

*Min creepage distance: 6300mm

*Lightning impulse voltage: 1000kV

*Power frequency wet withstand voltage: 395kV

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
