| Prod Model: |
FCGW series |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Bushing Insulator |
| Type: |
A Type Insulator |
| Brand: |
Ville |
Product Description

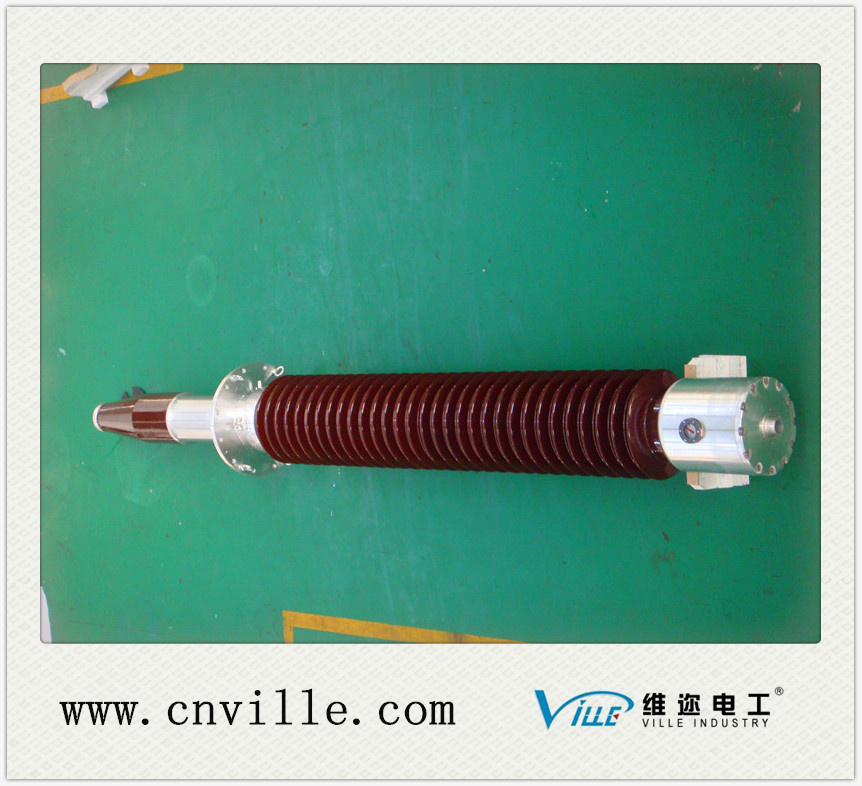

Composite Wall Bushing
FCGW series of composite insulator dry wall drivepipe is implied to indoor or outdoor power substation with AC power system's rated voltage lower than 35KV, frequency being 50Hz, it performs electric insulator and mechanic support function for high-voltage conductor when high-voltage conductor crosses through wall or other object of connection to land, the product also is used as insulator and support for 10KV vacuum circuit breaker's high-voltage entry-exit wire. Especially, it is implied to dirty district for preventing from dirty-flash accident, therefore, it has been the upgraded product for vastly used china wall drivepipe.
Product Description
Wall Throught Composite Polymer Bushing Insulator
Specifications
1.Professional Manufacture of China
2.Multi protection functions
3.CE,FCC,LVD&ROHS reports
Product Description
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.
This product uses the capacitor equalizing theory; it uses optimal structural design by special electric field analysis andcalculation; it is light and handy, and it is convenient for installation.The product is made of fire resistant and corrosion resistant material without oil or porcelain. It not only can be used in thecity with high sanitary requirement, but also can be used in the area with severe pollution.This series product consists of primary coil, bushing flanges, and terminal block etc components.The end shield or ground shield is lead out separately to be convenient for test, and it also has good humidity resistance.The insulation resistance is stable and reliable.The secondary terminal block is formed by casting as a whole, it can prevent from turning, so the insulation resistance is stable and reliable.
Wall bushing is used for the power station and substation distribution equipment and high-voltage electrical appliances, for the wires through the ground partitions, walls, or electrical equipment enclosure to support the conductive part to make it right or housing insulation.
according to their use of the environment it can be divided into indoor and outdoor wall bushings. Through the center of the conductor can be divided into the bus ceramic wall bushings, copper conductor wall bushings and aluminum conductor wall bushings.
When the copper conductor and the bus is directly connected, it's very easy to produce galvanic corrosion, the contact surface temperature is too high cause the joints to burn, affecting the life of the equipment, it should be using copper and aluminum transition joints, but to cause trouble for construction, the use of aluminum conductors porcelain The casing can solve these problems.
Indoor and outdoor wall bushings are made by porcelain pieces, conductive rod, both ends of metal accessories and mounting flange assembled. Bus wall bushing is made by the porcelain pieces, both ends of the metal accessories, bus plywood and mounting flange assembly (bus plywood usually with bus size by the user).
We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.
For your reference under below is the main technical parameter of each model type.Main techical parameters
| Product Model | Rated voltage(kV) | Rated mechanical load(KN) | Structure height H.(mm) | Insulating distance Li.(mm) | Min Creepage distanee(mm) | Lightning impulse withstand voltage(peak)(kV) | P.Fwet withslend voltage(virtual value) |
| FXBW4-12/70 | 12 | 70 | 370 | 200 | 480 | 75 | 42 |
| FXBW4-12/100 | 12 | 100 | 405 | 200 | 480 | 75 | 42 |
| FXBW4-24/70 | 24 | 70 | 550 | 370 | 850 | 185 | 75 |
| FXBW4-24/100 | 24 | 100 | 590 | 370 | 850 | 185 | 75 |
| FXBW4-35/70 | 35 | 70 | 650 | 450 | 1225 | 230 | 95 |
| FXBW4-35/100 | 35 | 100 | 690 | 450 | 1225 | 230 | 95 |
| FPBW4-66/70 | 66 | 70 | 900 | 710 | 1980 | 410 | 185 |
| FXBW4-66/100 | 66 | 100 | 940 | 710 | 1980 | 410 | 185 |
| FPBW4-110/70 | 110 | 70 | 1240 | 1000 | 3315 | 550 | 230 |
| FPBW4-110/100 | 110 | 100 | 1240 | 1000 | 3315 | 550 | 230 |
| FPBW4-220/100 | 220 | 100 | 2240 | 1900 | 6300 | 1000 | 395 |
| FPBW4-220/160 | 220 | 160 | 2240 | 1900 | 6300 | 1000 | 395 |
| FPBW4-330/100 | 330 | 100 | 2950 | 2600 | 9075 | 1425 | 570 |
| FPBW4-330/160 | 330 | 160 | 2950 | 2600 | 9075 | 1425 | 570 |
| FXBW4-500/160 | 500 | 160 | 4080 | 3730 | 12750 | 2250 | 740 |
Composite Through Wall Bushing Insulator (FCGW)
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
haracteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.
| Product Model | Rated voltage (kV) | Rated mechanical bending load (kN) | Min. arcing distance
(mm) | Min. nominal creepage distance (mm) | Diameter of shed (mm) | Uimp wts (peak)
(kV) | Uw. 1min wts (peak)
(kV) |
| FCGW-10/630 | 10 | 125 | 215 | 380 | 100/90 | 75 | 30 |
| Product Model | Rated voltage (kV) | Rated mechanical bending load (kN) | Min. arcing distance
(mm) | Min. nominal creepage distance (mm) | Diameter of shed (mm) | Uimp wts (peak)
(kV) | Uw. 1min wts (peak)
(kV) |
| FCGW-35/630 | 35 | 125 | 215 | 1030 | 100/90 | 200 | 80 |
The environment,facility and the test condition of the production line are of stare level in China. After series technical improvements, the overall technical performance data of our bushing is in the lead in China, on which we havegained several patients. By now the high-voltage bushing has passed the teats of some famous joint ventures, such as Toshiba, ABB, Siemens, VATECH Elin and Shanghai AREVA etc. Our company has been the qualified supplier of the above-mentioned enterprise and exported to Janpan, Indonesia India and Australia etc.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
