Composite Wall Bushing

Name: Composite Wall Bushing
Brand: all-electronics-online.com
SKU: 606393342
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	24kv 630A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wall Bushing:	Indoor
Application:	High-voltage
Material:	Composite Polymer
Structure:	Bushing Insulator
Type:	B Type Insulator
Brand:	Haivol

Product Description

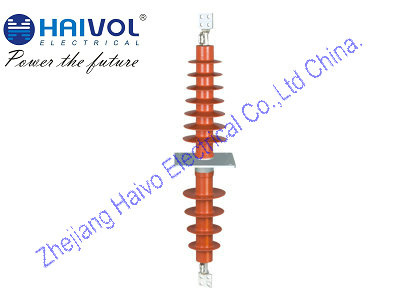

Composite Wall Bushing

FCGW series of composite insulator dry wall drivepipe is implied to indoor or outdoor power substation with AC power system's rated voltage lower than 35KV, frequency being 50Hz, it performs electric insulator and mechanic support function for high-voltage conductor when high-voltage conductor crosses through wall or other object of connection to land, the product also is used as insulator and support for 10KV vacuum circuit breaker's high-voltage entry-exit wire. Especially, it is implied to dirty district for preventing from dirty-flash accident, therefore, it has been the upgraded product for vastly used china wall drivepipe.

Composite bushing installation dimensions

Type no	Total length (mm)	Outdoor insulation distance(mm)	Outdoor creepage distance(mm)	Indoor insulation distance(mm)	Indoor creepage distance(mm)	MountingHole Centerdistance(mm)	Wiring terminal hole distance(mm)	Wiring terminal hole number
FCGW-12/250- 1600	535	200	380	190	200	190	-	-
FCGW-12/2000- 3150	800	200	460	170	370	205	50*50	4-18
FCGW-24/630- 3150	1050	300	820	280	600	205	50*50	4-18
FCGW-40/5630- 3150	1340	450	1280	370	820	305	50*50	4-18
FCGW-72/5630 1600	2150	700	2250	680	1900	350	50*50	4-18
FCGW-126/630- 1600	3100	1150	3450	1100	2520	350	50*50	4-18

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
