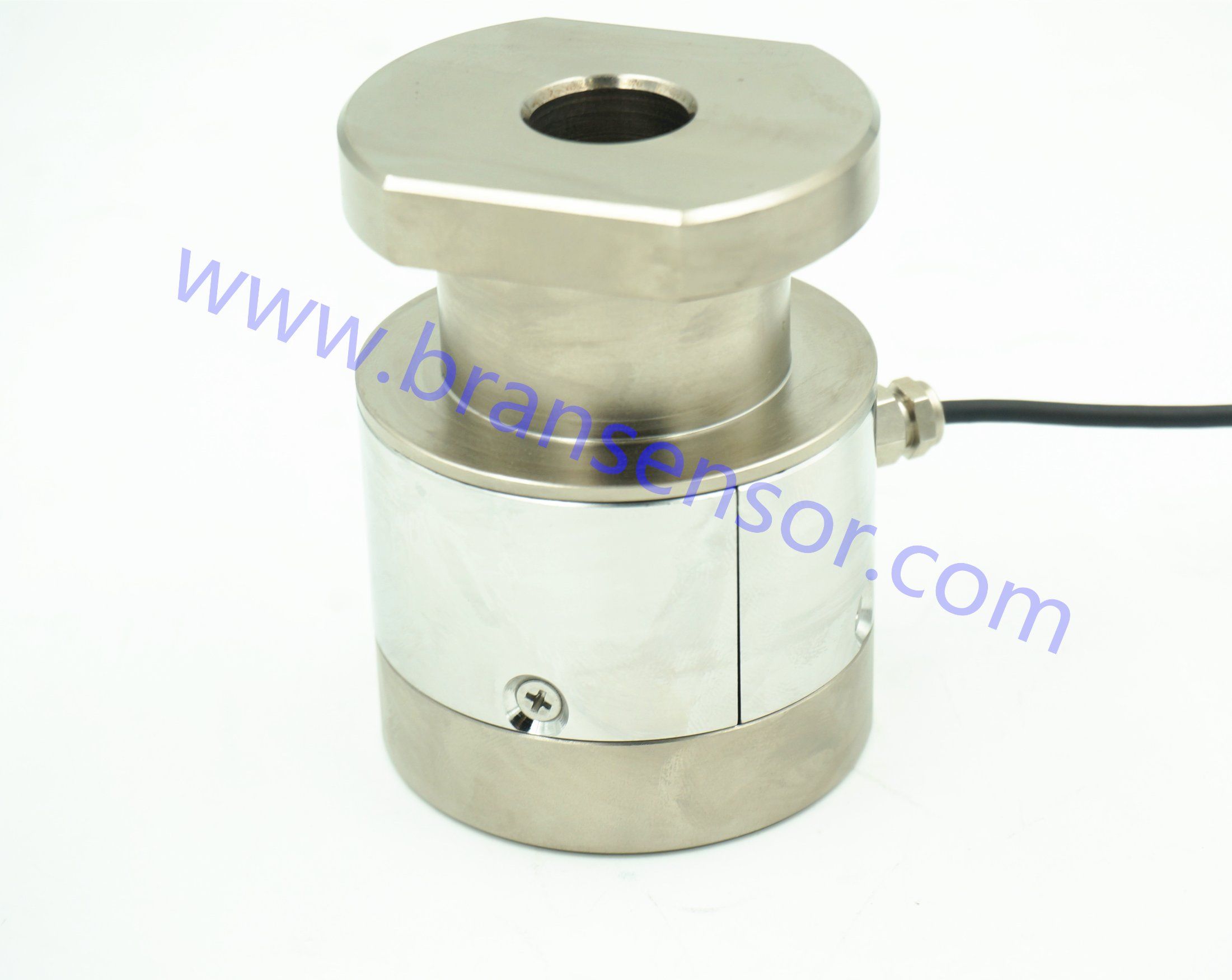

Compression Force Load Cell for Punch Machine

Name: Compression Force Load Cell for Punch Machine
Brand: all-electronics-online.com
SKU: 820449155
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B112
Measurement Force:	Compression Force Measurement
Size:	50mm25mm(DiameterHeight)
Product Type:	Miniature Force Sensor
Pattern:	Load Button
Feature:	High Accuracy
Production Process:	Put on Strain Gauge

Product Description

1. Name: 100KN load button load cells
2. Type: B112 force sensor

3. Specification
Compression punching force sensors, with only few exceptions, are designed low profile with a small diameter, so they are well suited for applications in confined spaces. We manufacture compression force transducers with a spherical load application button, or install basement and are therefore particularly suited for the implementation of mounting parts.
The sensors provide standardized analog, unreinforced strain gauge bridge output signals in mV/V. As an option, many of our compression force sensors can be supplied with an extended temperature range of -40°C up to 150°C.
For the protection against damages, caused by impermissibly high compression stress, our compression force sensor type B111, for example, is supplied with an integrated mechanical stop for overload protection by default. Typical applications for these sensor types are for example shear force and press-in force measurement. Designed for large-scale high-speed punching machines, such as metal, plastic, rubber stamping machines and other stamping applications

Key Features
Compact design
Low Deflection profile
17-4 Stainless Steel Construction
Direction of force: Compression
Accuracy class 0.5
Nominal rated forces: 60KN to 100KN/13200lbs to 22000lbs
Configurable with different cable lengths, plug assembly

5. Datasheet

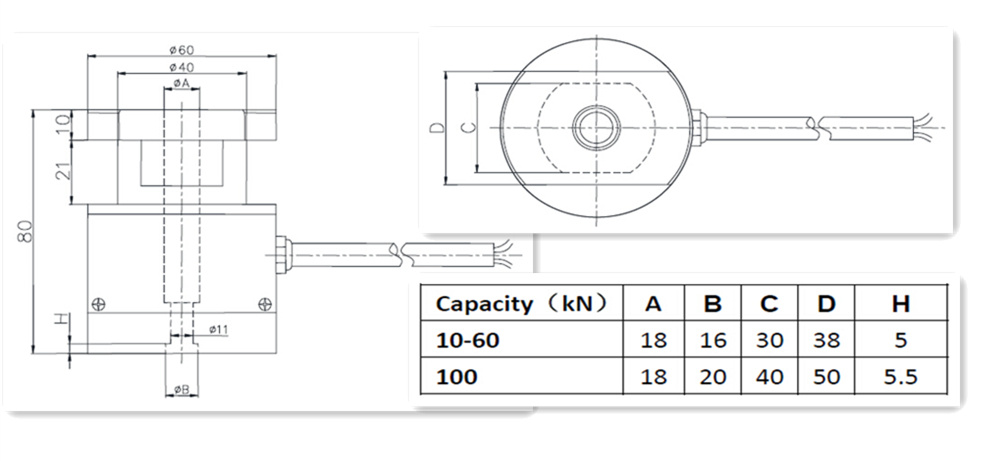

Number	Specifications	Technique
1	Capacity	10-60,100 kN
2	Rated output	1.0±10%mV/V
3	Zero balance	±2%F.S.
4	Non-linearity	0.5%F.S.
5	Hysteresis	0.1%F.S.
6	Repeatability	0.1%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	750±10Ω
11	Output impedance	700±5Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	300%F.S.
19	Cable size	φ3.6×1500mm
20	Weight approx.	1.5kg
21	Material	Alloy Steel()
22	IP Class	IP65
23	Cut off frequency	50HZ

All of these load button load cells could be customized. The accuracy could be 0.05% for force measuring and controlling progress.
