Compression Hollow Load Cell for Electronic Scale (B117)

Name: Compression Hollow Load Cell for Electronic Scale (B117)
Brand: all-electronics-online.com
SKU: 820538975
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B117
Measurement Force:	Compression Force Measurement
Size:	Customized
Product Type:	Miniature Force Sensor
Pattern:	Load Button
Feature:	High Accuracy
Production Process:	Put on Strain Gauge

Product Description

1. Name: 500KN good quality hollow compression load cells
2. Type: B117 force sensor

3. Specification

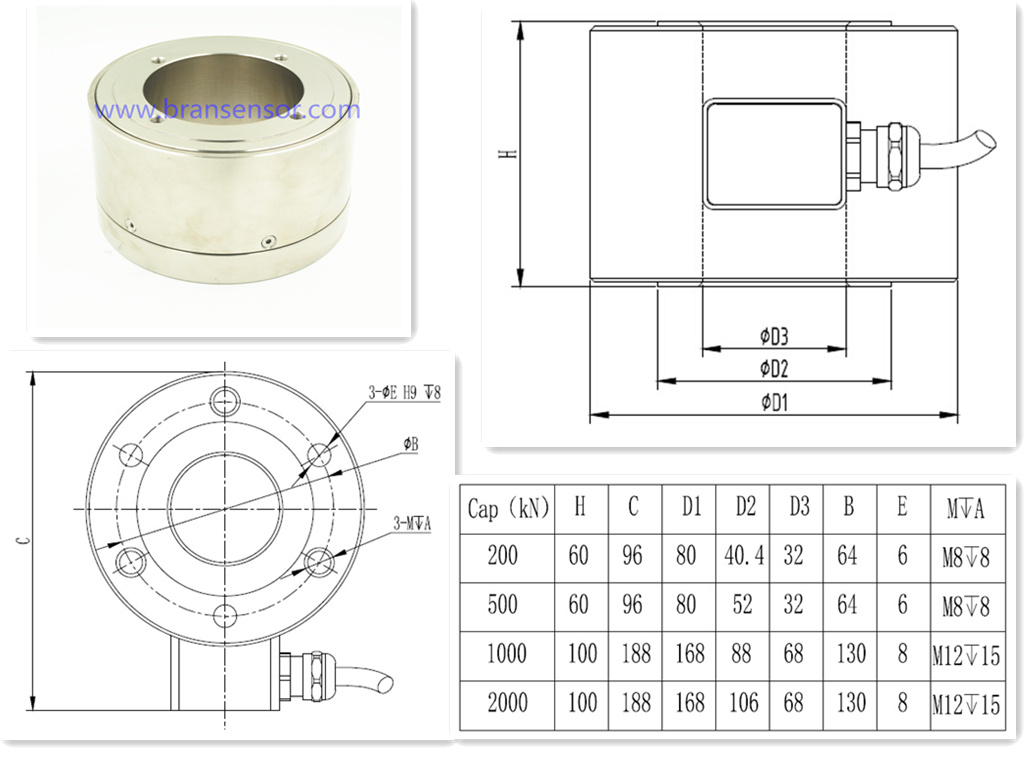

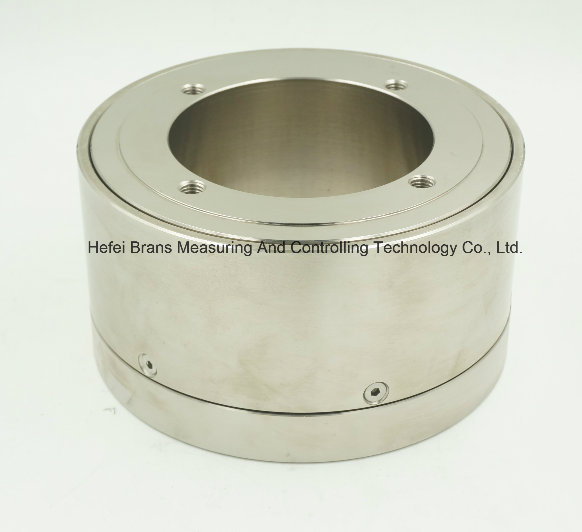

B117 is a Load Button hollow type Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. This Load Button Load Cell model has a very robust construction available in high class alloy Steel, with 86mmto 165mm outside diameter and a 4 meters long 4 conductor shielded cable. You will also find options for external matched output readily available. The capacity is from 100KN to 500KN.

Although Load Button Load Cells are traditionally not known for their high accuracy, our engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.05% and Repeatability of 0.5%F.S. nominal. The standard Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping.

Product Highlights:

Low Deflection

Alloy Steel Construction

Compression force

Utilizes Metal Foil Strain Gauge Technology

4. Applications
A. Made of alloy steel,Strong stability
B. Used in various automated stamping applications,IP65 protection
C. Mainly used in force measurement. Designed for large-scale high-speed punching machines,such as metal,plastic, rubber stamping machines and other stamping applications

5. Datasheet

Number	Specifications	Technique
1	Capacity	200,300,400,500kN
2	Rated output	2.0±10%mV/V
3	Zero balance	±0.05%F.S.
4	Non-linearity	0.5%F.S.
5	Hysteresis	0.5%F.S.
6	Repeatability	0.1%F.S.
7	Creep(30min)	0.1%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.03%F.S./10ºC
10	Input impedance	780±20Ω
11	Output impedance	700±5Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	300%F.S.
19	Cable size	φ5×2000mm
20	Weight approx.	1.5kg
21	Material	Alloy Steel()
22	IP Class	IP67
23	Cut off frequency	50HZ

All of these load button load cells could be customized. The accuracy could be 0.05% for force measuring and controlling progress.
www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
