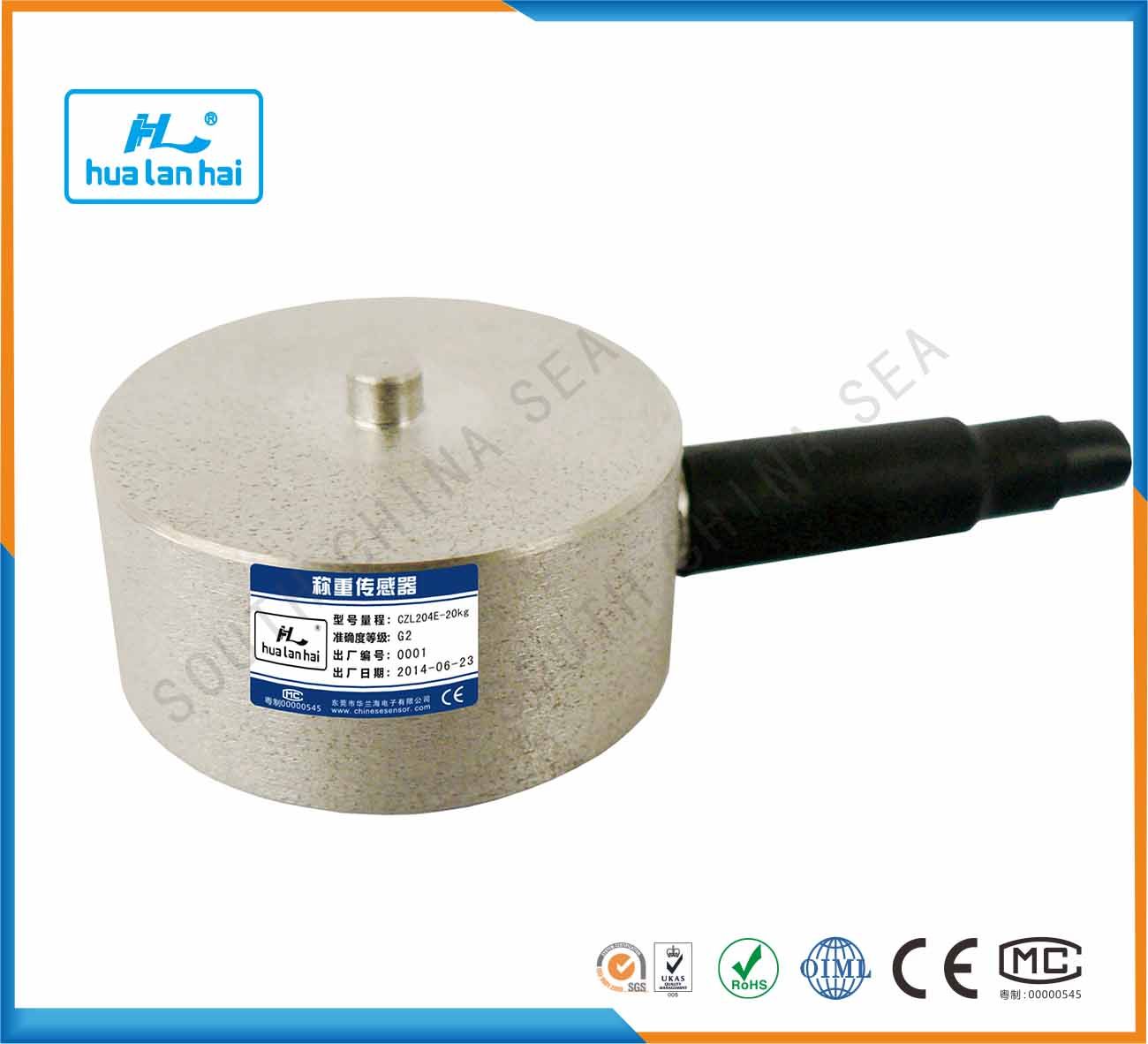

Compression Load Cell (CZL204E)

Name: Compression Load Cell (CZL204E)
Brand: all-electronics-online.com
SKU: 716168945
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 40/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL204E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Capacity(kg): 5-500

Main features: Alloy steel & stainless structure; Bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion.

Parameters
Precision : C2		Temp. effect on span(%F.S/10 °C): ±0.05
Comprehensive error(%F.S) : ±0.2		Temp. effect on zero(%F.S/10 °C) : ±0.05
Rated output(mv/v) : 2.0±0.04		Compensated temp. range( °C ) : -10~+40
Creep(%F.S/30min) : ±0.02		Use temp. range( °C ) : -35~+65
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9 ~12(DC)
Input resistance(Ω) : 700±10		Safe overload (%F.S) : 120
Output resistance(Ω) : 700±5		Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP68

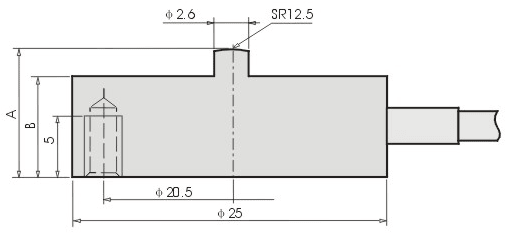

Rated Load(kg)	5	10	20	50	100	200	500
A	10	11	11	11	11	11	15
B	8	9	9	9	9	9	12

Wiring schematic diagram:

Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
