Compression Type BNC Male for Cable Rg59 RG6

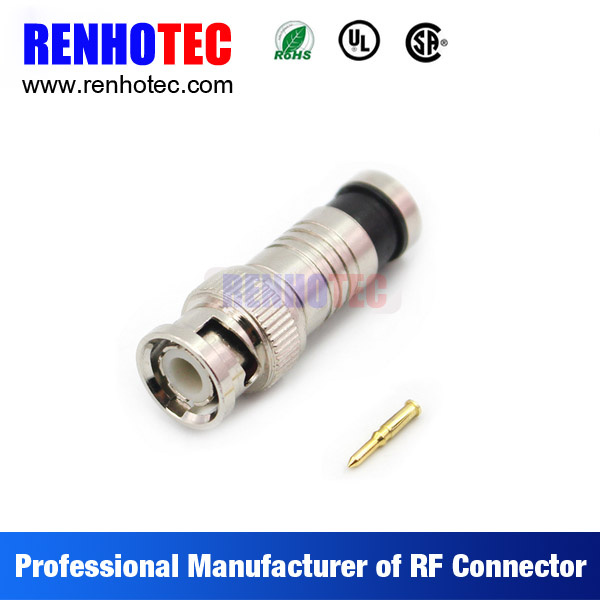

Name: Compression Type BNC Male for Cable Rg59 RG6
Brand: all-electronics-online.com
SKU: 794387515
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-610
Business Type:	Manufacturer
Orientation:	180 Degree
Impedance:	50 Ohm &75 Ohm
Frequency Range:	DC-4GHz
Body Material:	Brass
Suitable Cable:	Rg58 Rg59 RG6
Warranty:	12 Months
Lead Time:	7-10 Days

Product Description

BNC connectors are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad. They are widely used connect of the RF coaxial-cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω .

Materials:

Shell	Zinc alloy gold plated
Contact pin	Brass gold plated
Socket	Beryllium gold plated
Elastic contact	Beryllium gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy nickel or gold plated
O-ring sealing	Silcon Rubber

Major technical chracterstics:

Impedance	50/75 Ω
Frequency Range	0-4 GHz with low reflection
Voltage Rating	500 volts peak
Dielectric Withstanding Voltage	1, 500 volts rms
VSWR straight	1.3 max 0-4 GHz
VSWR right angle	1.35 max 0-4 GHz
Center contact Resistance	1.5 mΩ
Outer contact Resistance	0.2 mΩ
Insulation Resistance	5, 000 MΩ
Braid to Body	0.1 milliohm
RF Leakage	-55 dB min at 3 GHz
Insertion Loss	0.2 dB min at 3 GHz
