Compression Type RG6 F Connector

Name: Compression Type RG6 F Connector
Brand: all-electronics-online.com
SKU: 805182665
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-611-RG6
Body Material:	Brass
Impedence:	75ohm
Connector Type:	F Connector
Plating:	Nickel or Gold
Orientation:	Customized
Place Of Origin:	Guangdong, China
Factory Direct Sale:	Yes
OEM:	Weclome
Product Name:	Compression Type RG6 F Connector
Type:	Generally Coaxial Connector
Coupling Mechanism:	Compression Type

Product Description

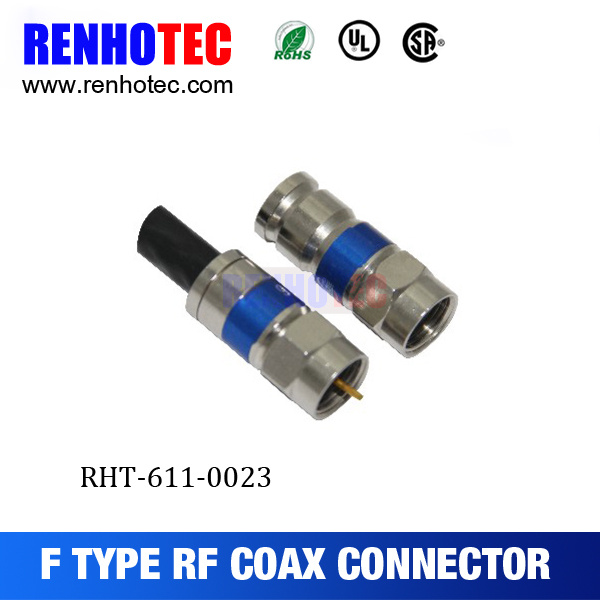

Compression Type RG6 F Connector

F-Type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.

Major Technical Characteristics
Temperature Range	-40 to +60 dregree
Vibration	100m/S2 (10 to 500 Hz), 10G
Impendance	75ohm
Frenquency Range	DC-1GHZ
Working Voltage	170V r.m.s at sea level
Workstandinging Voltage	500V r.m.s at sea level
Center Contact Resistance	≤10Mohm
Outer Contact Resistance	≤5Mohm
Insulation Resistance	≥1000Mohm
Center conductor Retention Force	≤0.2N
Insertion Loss	≤0.20dB/3GHz
Voltagge Standing Wave Ratio :
Straight	≤1.22/3GHz
Right Angle	≤1.30/3GHz
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass............Nickel
Insulator	POM..............White
Contact Pin	Brass............Nickel
Suitable cables
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

Renhotec offers many types of F type connectors. PCB mount F female connector/ F type male cable connector/Flange chassis mount F type connectors/ Straight right angle F type connector/ Crimp solder compressiontype F connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
